3.4.2 AMOM
Introduction
AMOM is an opto-electronic converter that can be used to connect fiber optic cables to the Sub-
D jacks on the front panel of the DIUN2 and DIU2U boards.
AMOM variants

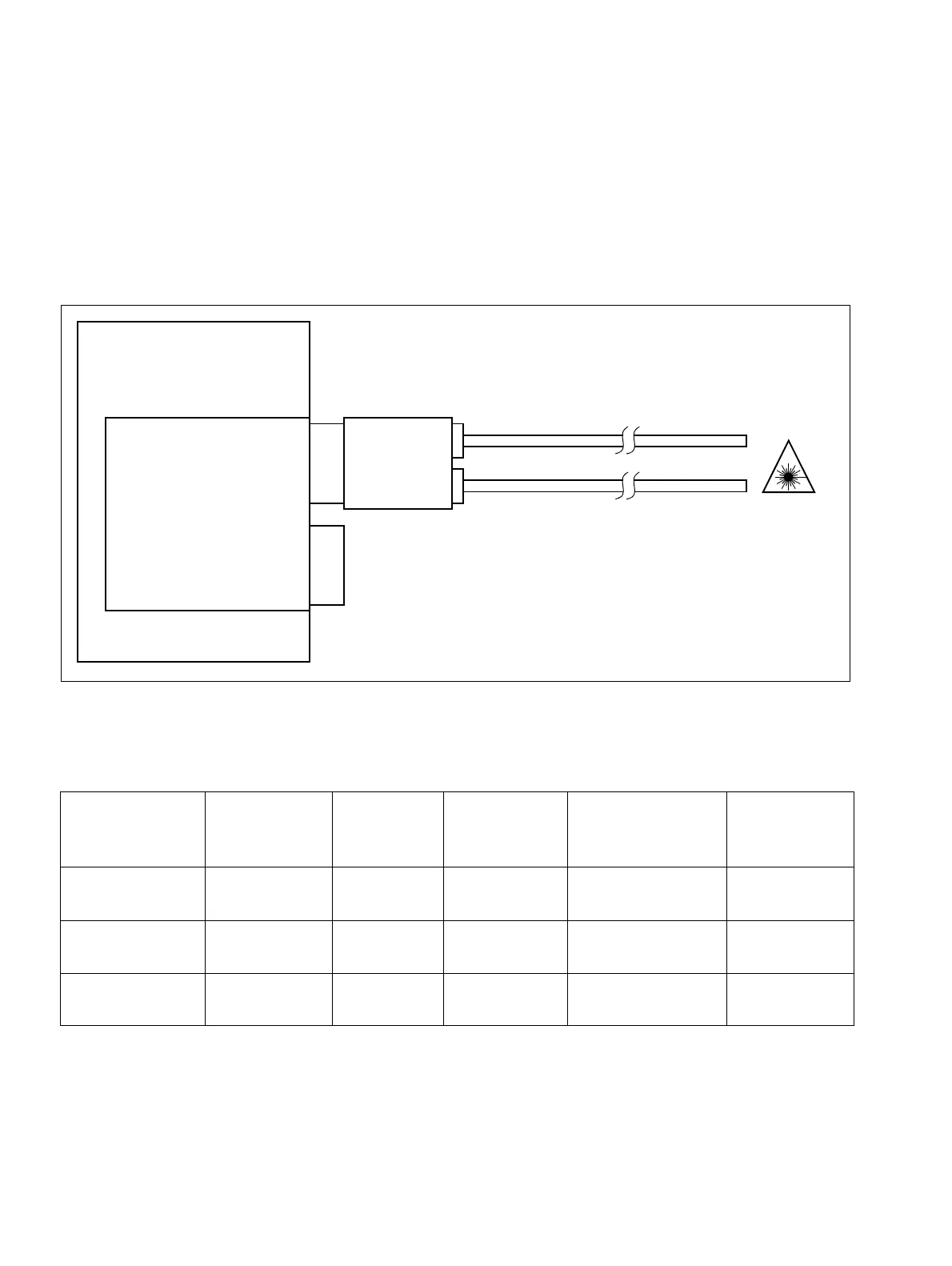

Figure 3-147 AMOM - Connection to DIUN2 and DIU2U
AMOM variant Wave length Op.fiber
cable
Cable length
(km)
Cable attenua-
tion
(dB/km)
Maximum at-
tenuation
1
(dB)
1 Maximum optical attenuation in an AMOM to AMOM connection: a reserve of 4 dB attenuation must be included for ageing
and splicing.
S30807-K5480-
X100
850/820 nm
multimode
50 µm
62.5 µm
2.5
3
3
3.5
11.5
14.5
S30807-K5480-
X200
1300 nm
multimode
50 µm and
62.5 µm
6110
S30807-K5480-
X300
1300 nm
mono mode
9 µm/125 8 0.5 8
HiPath 3800
DIUN2
or
DIU2U
S
U
B
D
S
U
B
D
AMOM
Optical fiber cable
