3.3.15 SLMA2 (for selected countries only)
Introduction
The SLMA2 (Subscriber Line Module Analog) board provides analog T/R interfaces for use in
HiPath 3800.
The external ring generator RGMOD (S30122-K5929-X) is required for the generation of ring
voltages. RGMOD is plugged in on the backplane of the basic and/or expansion cabinet. The
ring voltage and ring frequency are set using jumpers.
Front panel
>
A system cabinet can be fitted with a mix of SLMA, SLMA8 and SLMA2 boards. RG-
MOD has no effect on SLMA and SLMA8, as these boards generate their own ring
voltage.

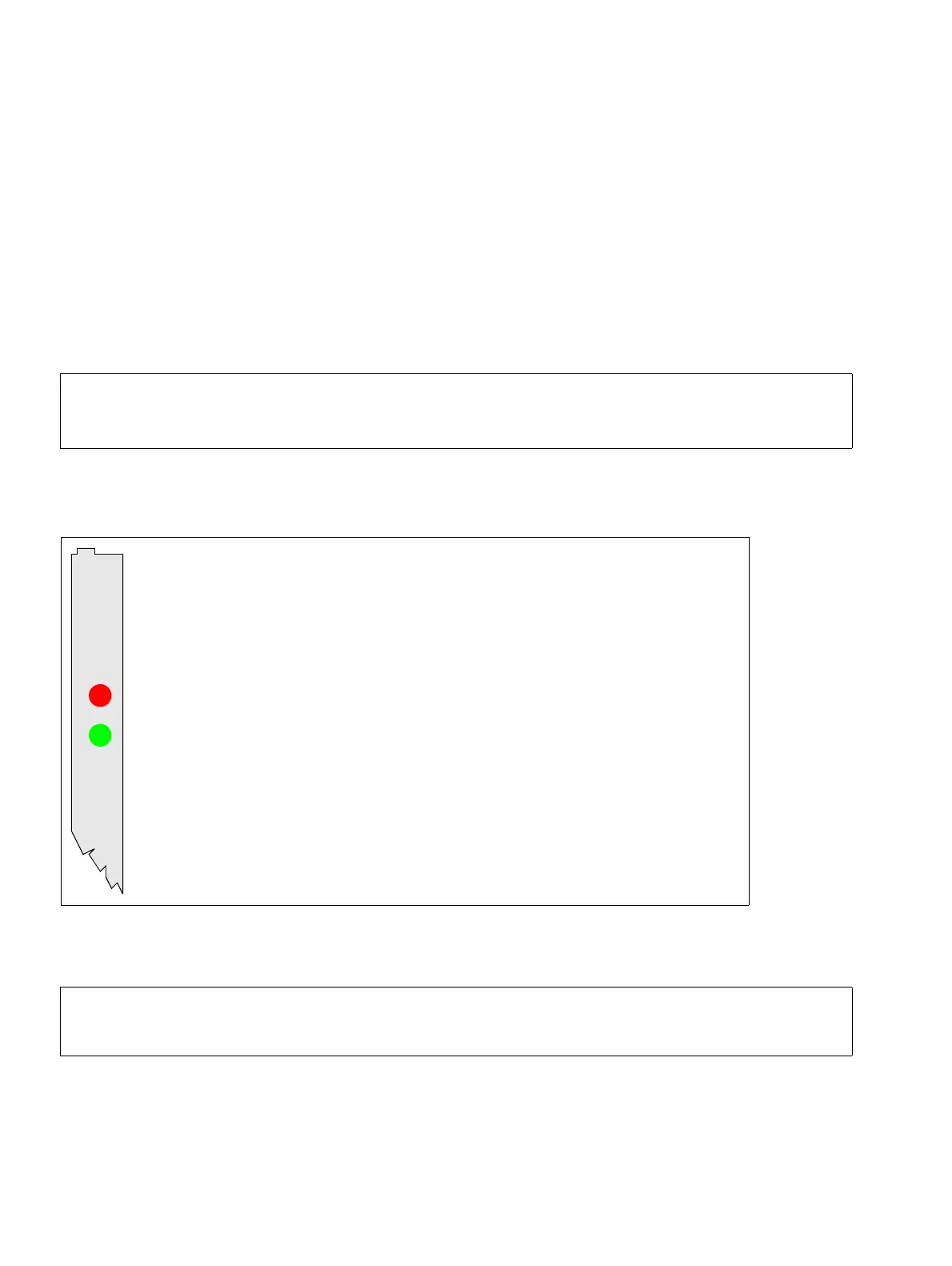

Figure 3-79 SLMA2 (S30810-Q2246-X) (for selected countries only) - LED’s on the Front
Panel
>
To ensure sufficient shielding, provide the board with a shielding panel. For informa-
tion on mounting the shielding panel, see Section 4.2.5.2.
Two LEDs indicating the board status:
● LED (red)
● LED (green)
