Siemens Hipath 5000 - Figure 4-38 Assignment (Numbering) of the SplittingJumper Strips

inst_h3.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
4-69
Installing HiPath 3000
Installing HiPath 3800
Splitting and jumper strips

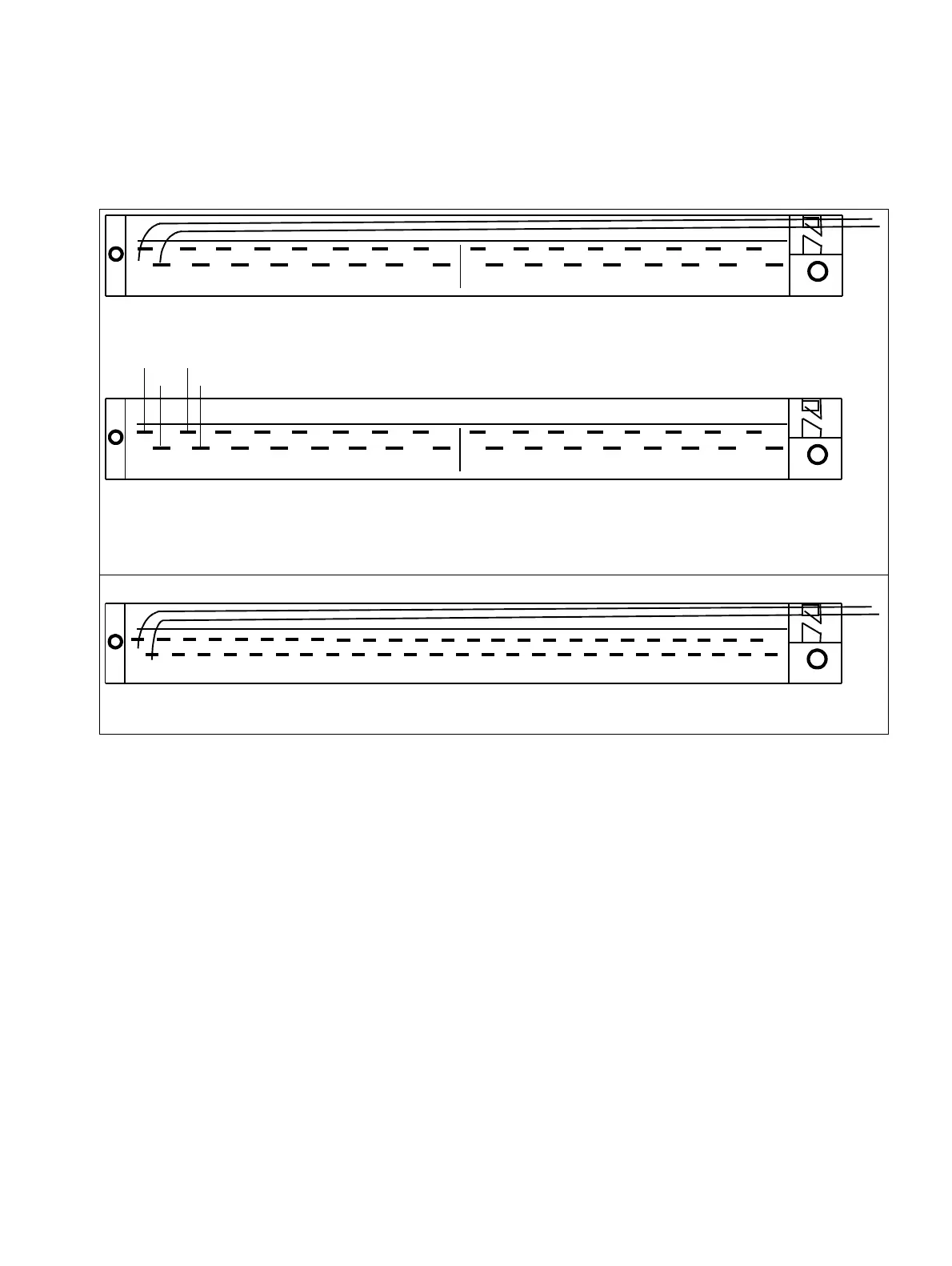

Figure 4-38 Assignment (Numbering) of the Splitting/Jumper Strips (view from above)
a
a
b
1Ea 1Sa
1Eb 1Sb
a
1 2 3 4 5 6 7 8 9 10 11 1612 13 14 15
1 3 5 7 9 11 13 15
Splitting strip for 16 TW (C39334-A166-A1)
Jumper strip for 25 TW (C39334-A166-A3)
231917 21 25
S
0
bus 1 ...
S
0
bus 8
1 2 3 4 5 6 7 8 9 10 11 1612 13 14 15
No. 25 not used
E = Receive
S = Transmit
b
b
