wclient.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
10-19
Workpoint Clients
optiPoint 500
10.2.2.3 optiPoint application module (V5.0 SMR-06 and later)
The optiPoint application module is an add-on device that can be mounted on the side of the
telephone; it has a color display and an integrated alphanumeric keypad. It provides a personal
phonebook and other helpful applications for improving user-friendliness when making calls.
The optiPoint application module can be implemented on the following telephones:
● optiPoint 500 basic, optiPoint 500 standard, optiPoint 500 standard SL (for U.S. only), op-
tiPoint 500 advance
Only the personal phonebook is supported when operating the key module in the TDM en-
vironment.
● optiPoint 410 standard, optiPoint 410 advance, optiPoint 420 standard, optiPoint 420 ad-
vance
In the VoIP environment, the add-on device supports the same functions as the present
optiPoint display module (personal internal phonebook, LDAP, WAP browser, Java applica-
tions, voice dialing), but with improved ergonomics.
The optiPoint 410 application module must always be installed as the first add-on device, in oth-
er words, connected directly to the telephone. An additional add-on device can also be used.
The following sections contain information on the possible add-on device configurations:
● Section 10.2.2.4 for terminals in the optiPoint 500 family
● Section 10.3.5.3 for terminals in the optiPoint 410 and optiPoint 420 family

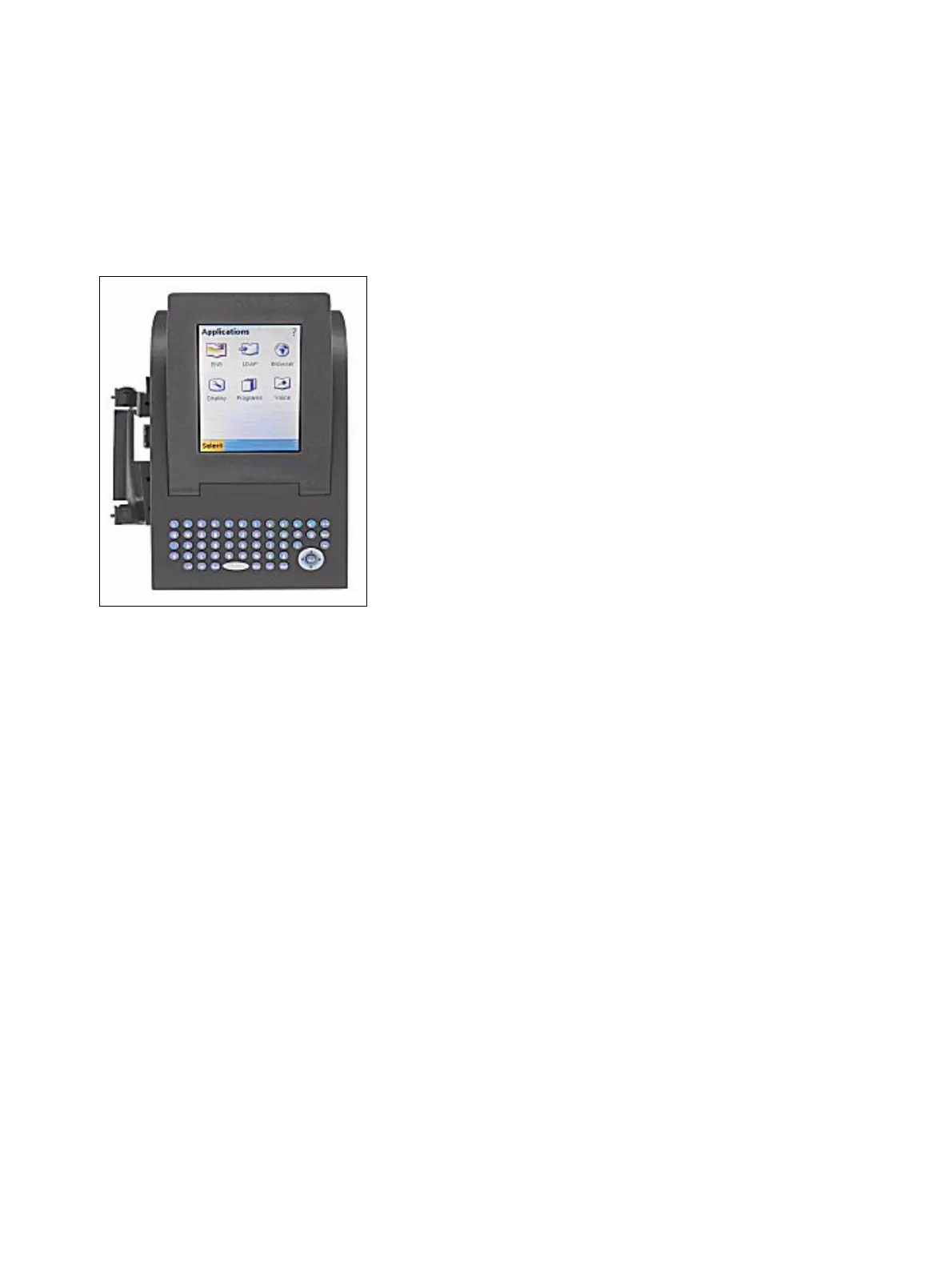

Figure 10-9 optiPoint application module
