4.2.7.3.2 Connecting Lines to the External S
0
Patch Panel
CABLUs must be manually connected to the S
0
patch panel (Figure 4-47). You can use the Kro-
ne wiring tool for this.

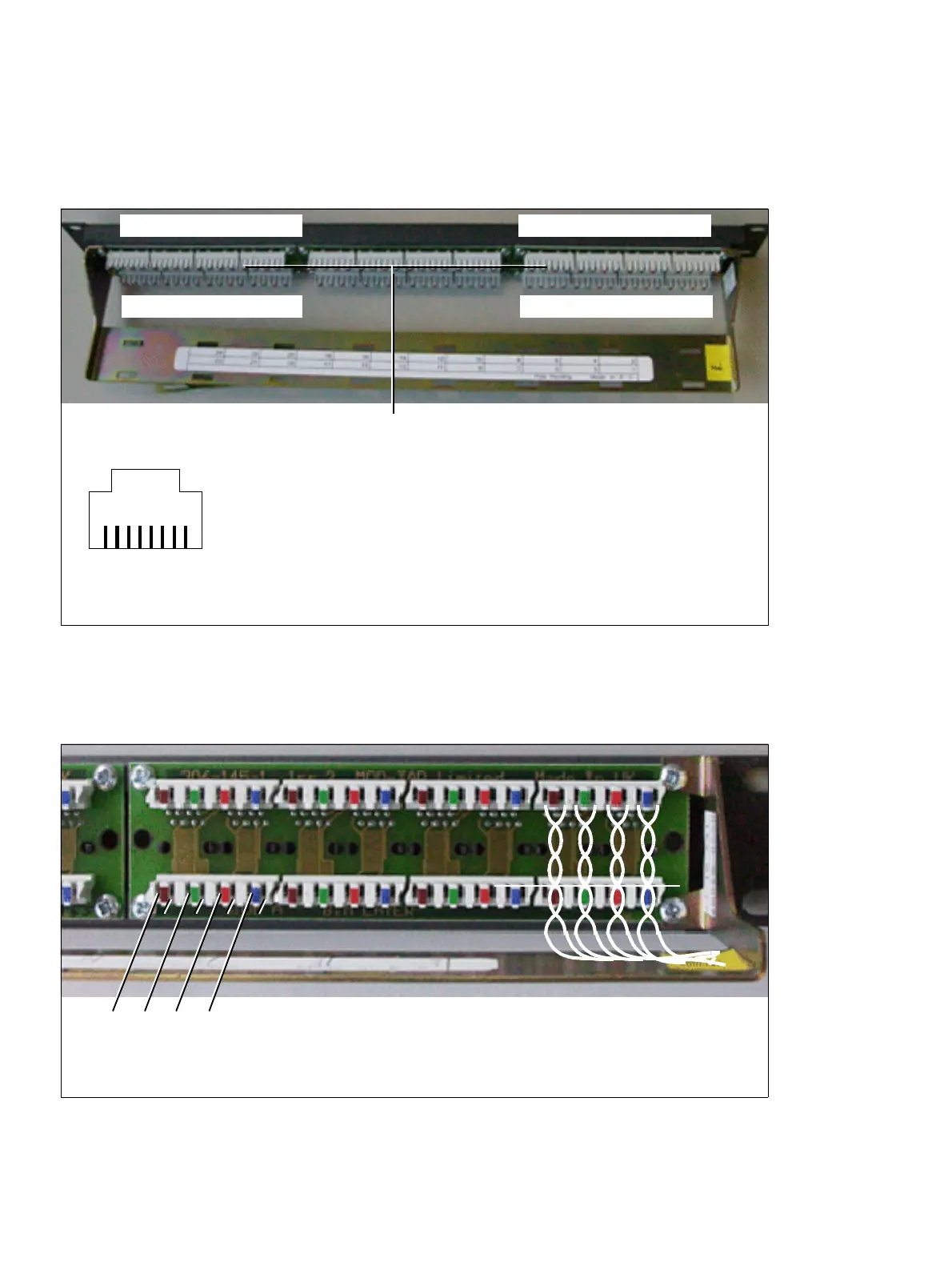

Figure 4-46 Assignment of the S
0
Patch Panel C39104-Z7001-B3
Figure 4-47 Laying Wire Pairs at the S
0
Patch Panel
... 753123 21 19 17 ...
... 864224 22 20 18 ...
3x8MW8 jacks, numbering
81
:
Pin
MW8 jack assignment:
as a subscriber line as a trunk connection
3 Transmit + Receive +
4 Receive + Transmit +
5 Receive – Transmit –
6 Transmit – Receive –
87632145
Pin assignment of MW8 jacks
Twist the wire pairs before laying them.
