Siemens Hipath 5000 - Figure 3-40 Hipath 3800 - Board Slots in the Basic Cabinet

Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-92 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
Slot
Figure 3-40 shows the slot for the cPCI box CSAPE in the basic cabinet. Please refer to Special
board attachments for installation information.

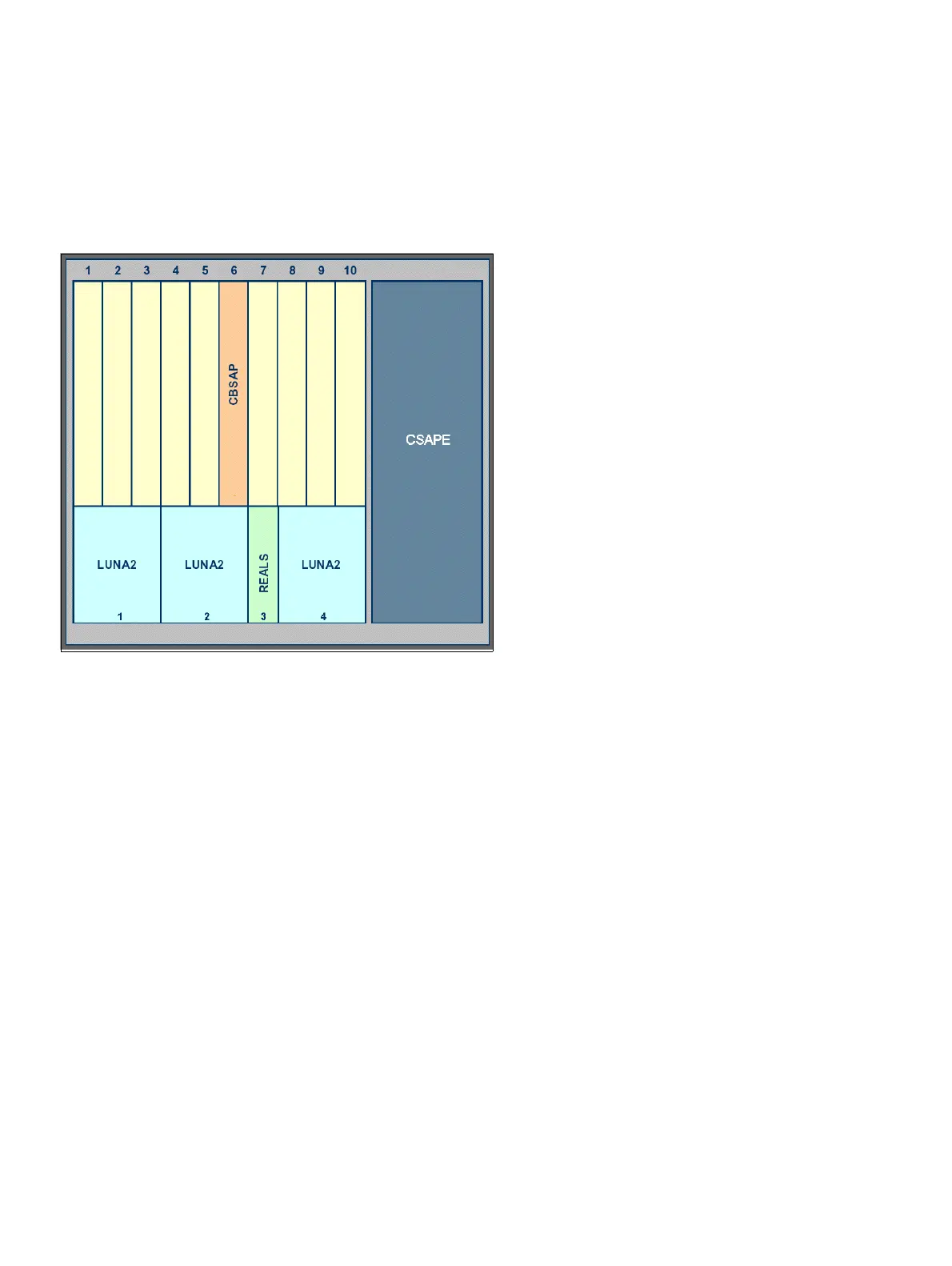

Figure 3-40 HiPath 3800 - Board Slots in the Basic Cabinet
