Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-36 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3800
Boards that can be connected from the front have a specially shielded front cover. An additional
cover is not required.
Special board attachments
● CSAPE
Insert the cPXI box CSAPE into the relevant slot of the basic cabinet and apply pressure
until you hear a click.
The slot must be covered with a panel before the system is started up. The panel is fixed
onto the shelf with four screws (see Figure 4-18).

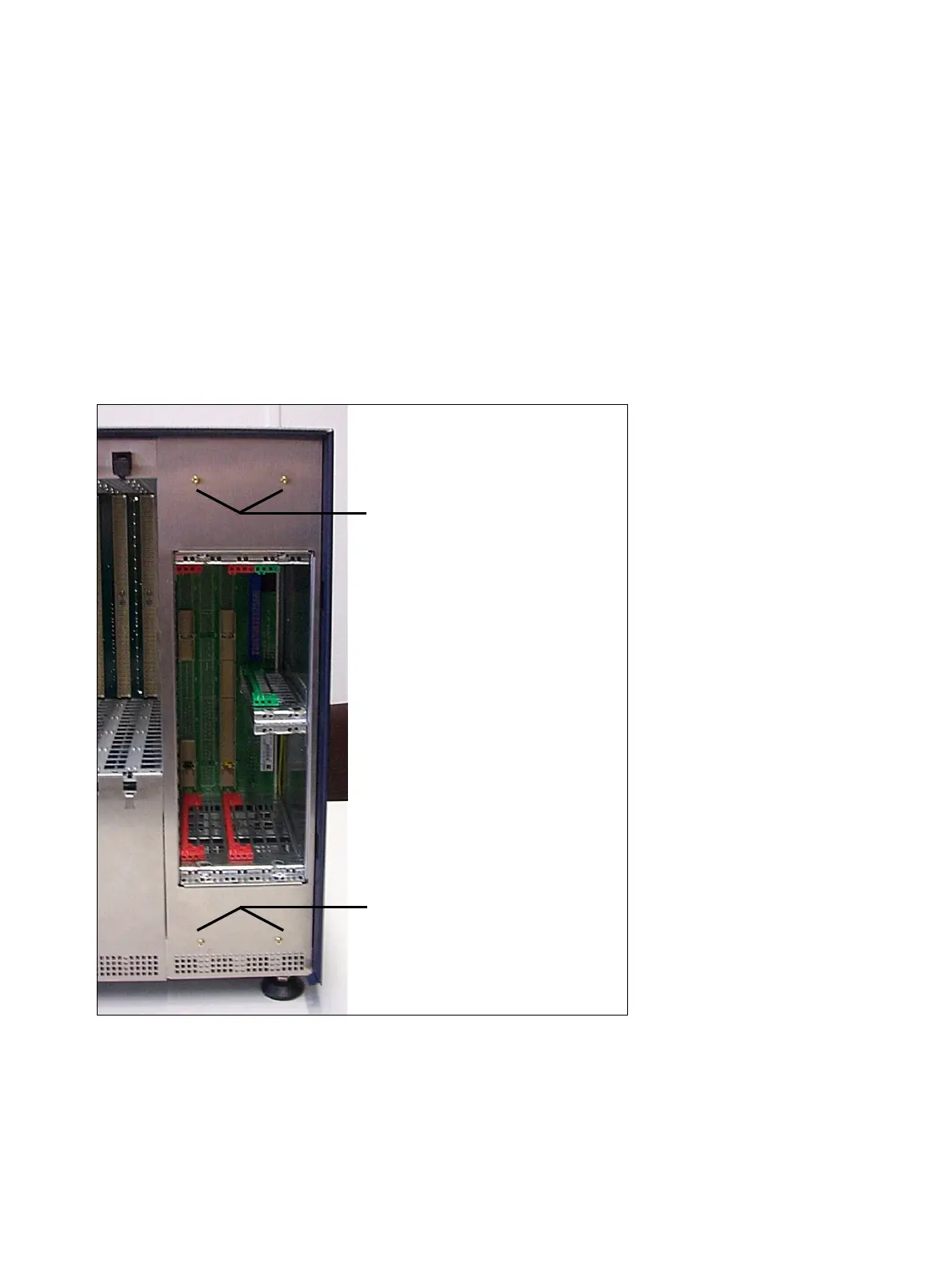

Figure 4-18 HiPath 3800 - cPCI Box CSAPE in the Basic Cabinet with Panel Mounted
Fixing screws
Fixing screws
