Siemens Hipath 5000 - Figure 3-65 Hipath 3800 Basic Cabinet - 1 X DIUN2 + 1 X PBXXX

boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-139
Boards for HiPath 3000
Peripheral Boards
Connection 1x DIUN2 + 1 x PBXXX

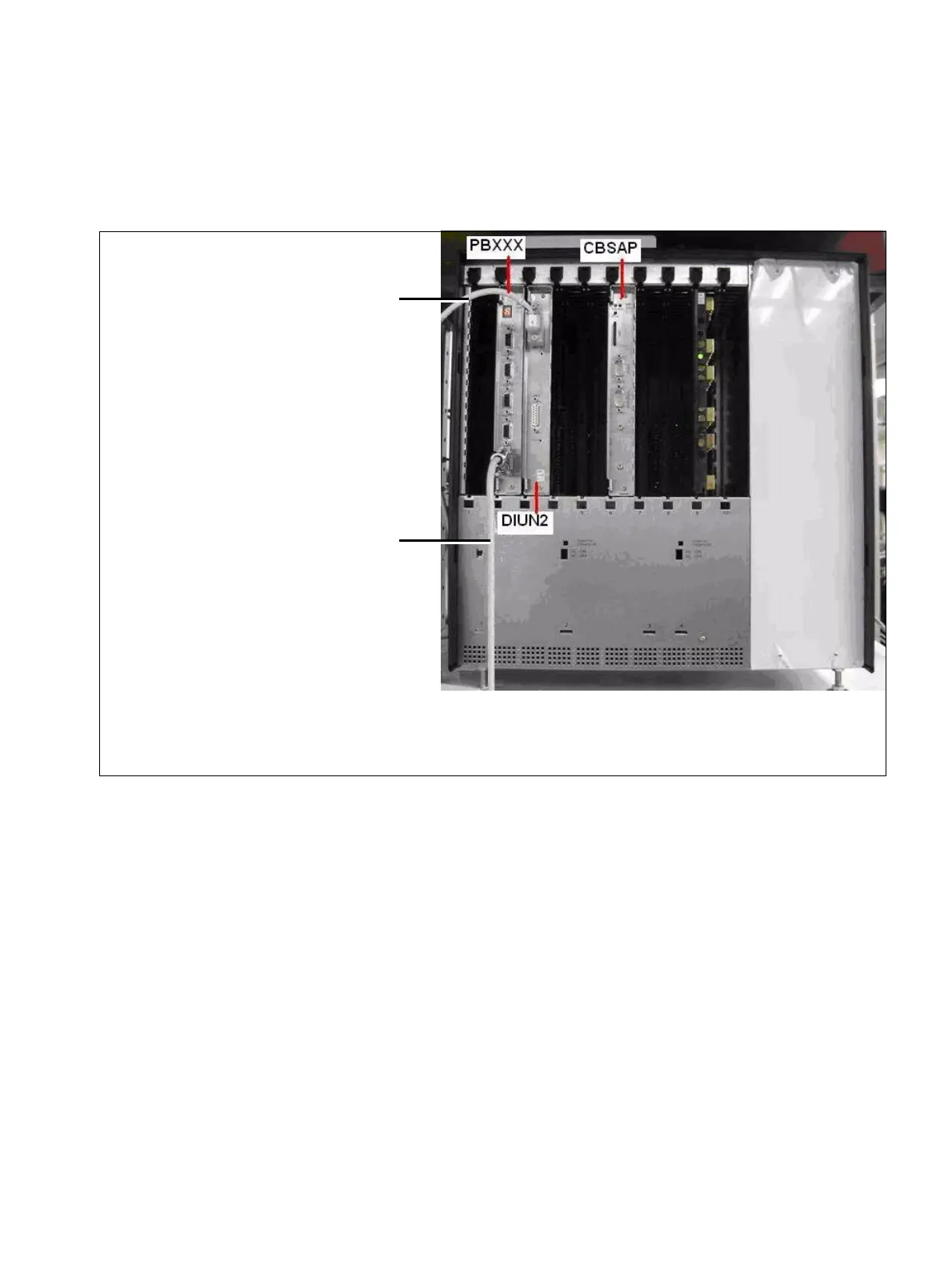

The figure below shows an example of a DIUN2 with PBXXX in the basic cabinet.
Figure 3-65 HiPath 3800 Basic Cabinet - 1x DIUN2 + 1 x PBXXX
Connection cable DIUN2–
PBXXX: C39195-A7700-B7
Note: The cable must run under
the cabinet.
The CAS cable is connected to the backplane using an APPCU adapter (see Figure 3-66).
Cable to service PC
