Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-338 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
3.3.46 8SLAR
Introduction
The 8SLAR (Subscriber Line Analog Rack) board provides eight T/R interfaces for connecting
analog telephones and supplementary equipment (such as group 3 fax machines and TFE
adapters) in HiPath 3500 and HiPath 3300 (19-inch housing).
Interfaces

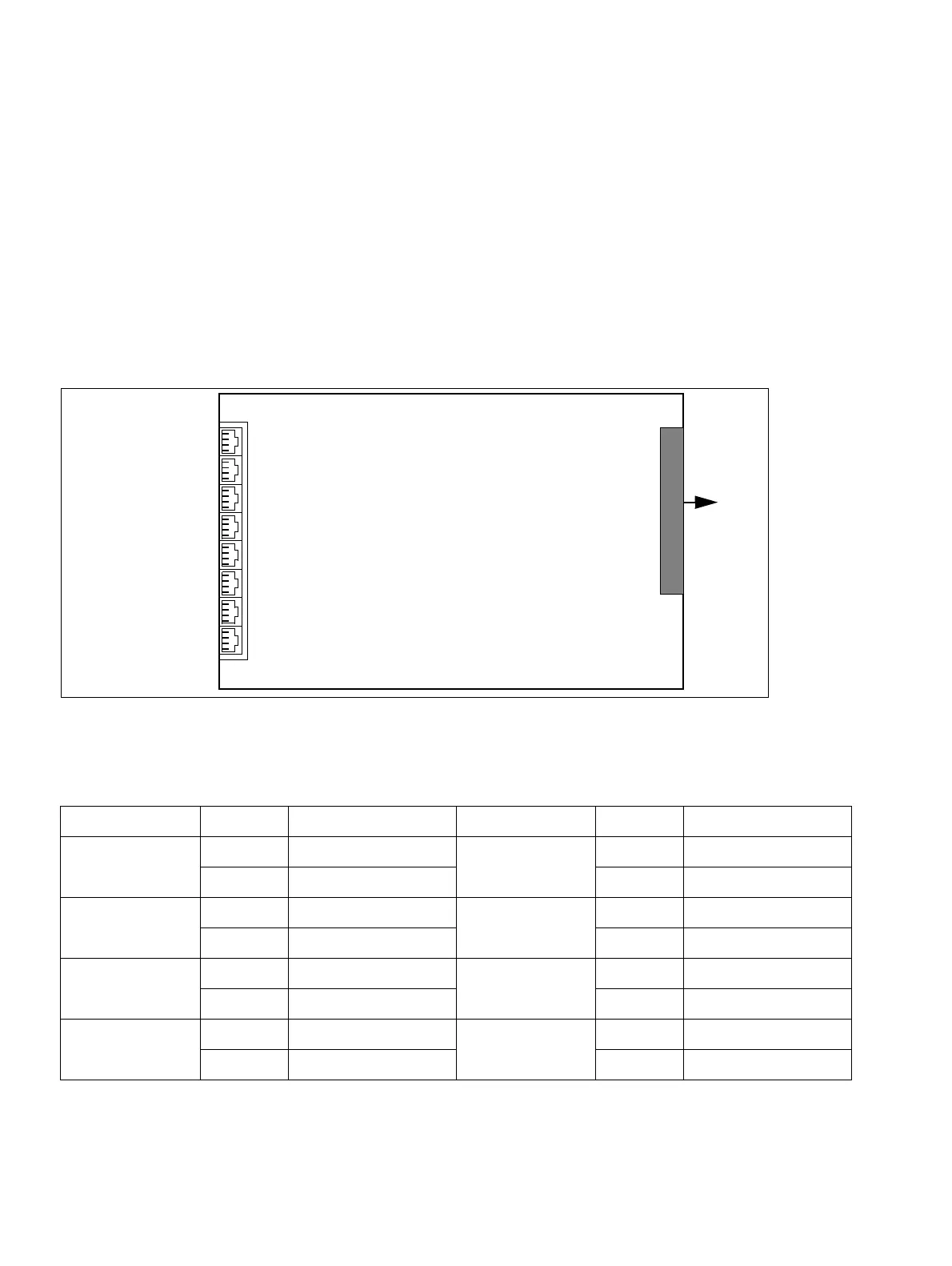

Figure 3-143 8SLAR Interfaces (S30810-K2925-Z)
Table 3-162 8SLAR Contact Assignments
MW8 jack X2, pin T/R ports 1-4 MW8 Jack X2, pin T/R ports 5-8
114 a 1 554 a 5
15 b 1 55 b 5
224 a 2 664 a 6
25 b 2 65 b 6
334 a 3 774 a 7
35 b 3 75 b 7
444 a 4 884 a 8
45 b 4 85 b 8
T/R ports
1–8
(4-pin MW8
jacks)
X1
50
2
To
CUPR
CUCR
X2
11
88
Port 1
Port 8
