exup.fm

P31003-H3560-S403-54-7620, 09/05

HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual

9-15

Expanding and Upgrading HiPath 3000

Expanding HiPath 3000

9.2.4.4.1 Installing Batteries

ECR is supplied with four batteries in a separate package. Proceed as follows to install the bat-

teries in the ECR:

Danger

Only V39113-W5123-E891 (12 V/7 Ah) batteries are released for connection to the

UPSC-DR/UPSM and installation in the ECR.

The use of other battery types is prohibited.

Step Activity

1. Set the switches for battery voltage and line voltage on the ECR’s front panel to

"Off" (see Section 9.2.4.1).

2. Remove the battery fuse (ECR front panel) (see Section 9.2.4.1).

3. Unplug all of the ECR’s power and connection cables.

4. Remove the ECR housing cover: To do this, remove the three screws at the rear

and slide the housing cover back.

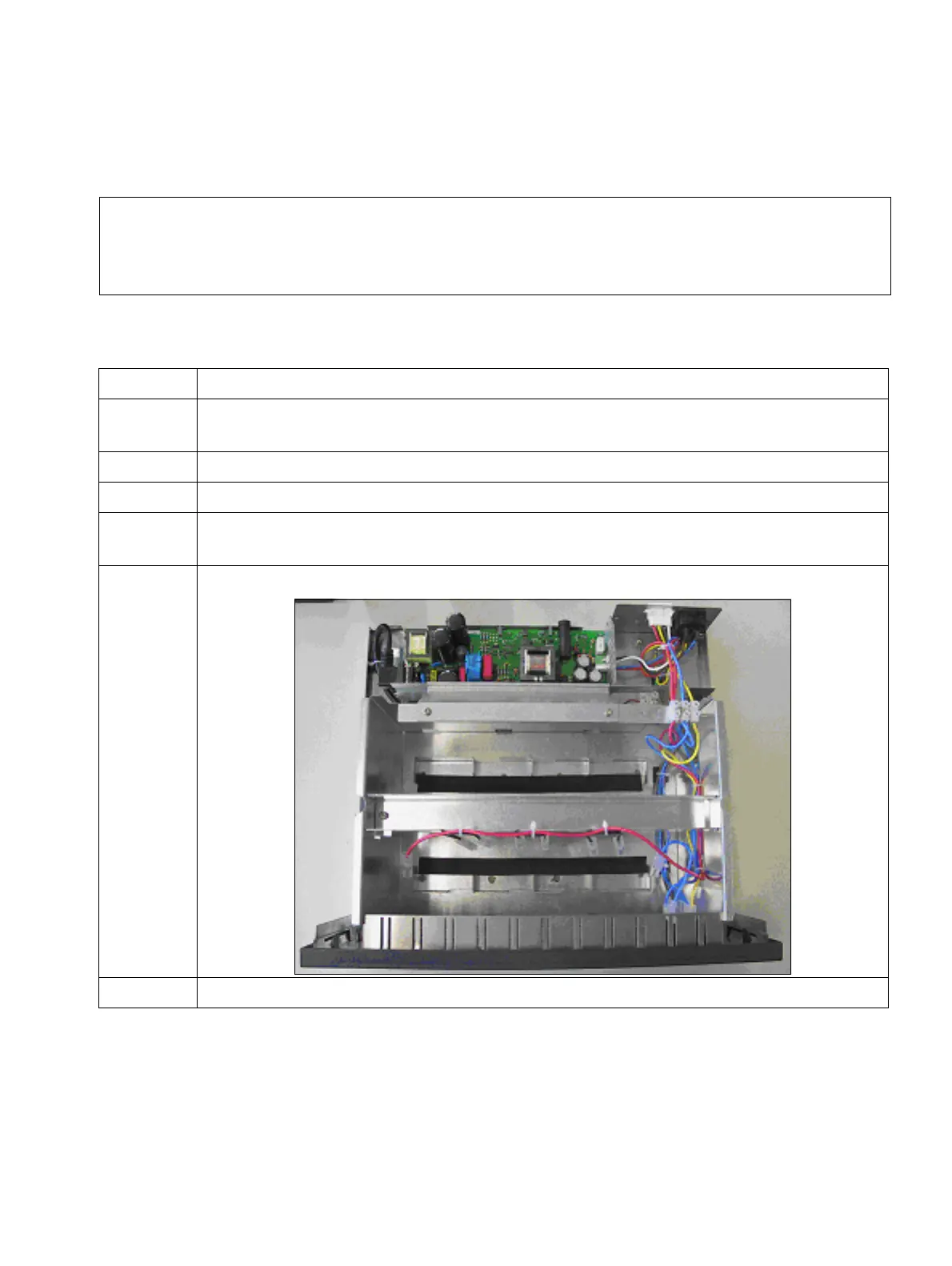

5. Remove the mounting screw [A] on the battery retainer [B].

6. Remove the battery retainer and set aside.

[B]

[A]
