boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-109
Boards for HiPath 3000
Peripheral Boards
Interfaces/connectors
The HXGS3 and HXGR3 boards provide the following connectors:
X1: 50-pin connector (edge connector) to the system
X2: 8-pin RJ45 jack for LAN interface 1
X3: 8-pin RJ45 jack for LAN interface 2
Both LAN interfaces allow access to the Ethernet standard (IEEE 802.3) with 10 Mbps or
100 Mbps with automatic configuration. Manual configuration is also possible.
X4: 9-pin Sub-D plug for V.24 interface

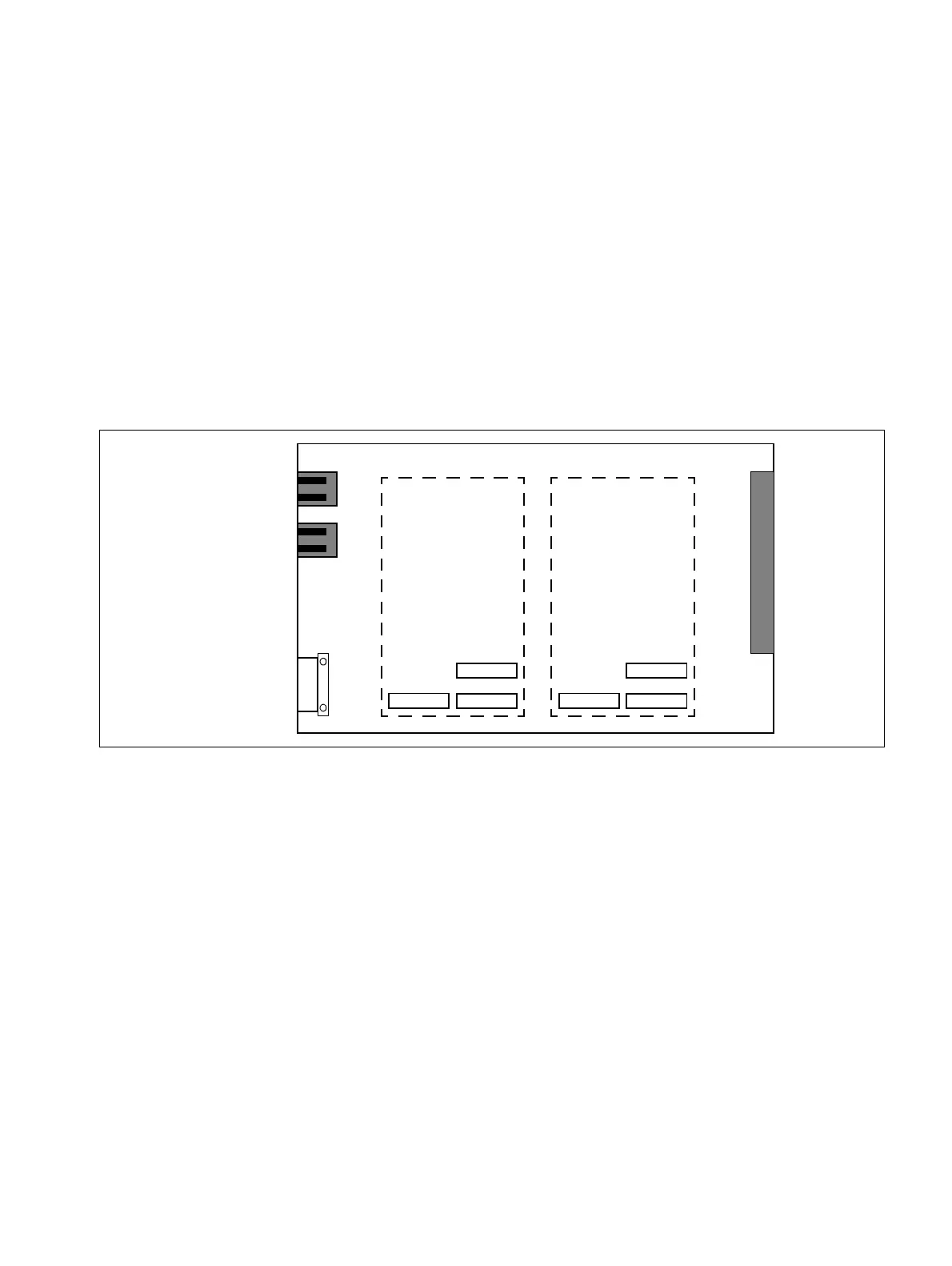

Figure 3-50 HXGS3/HXGR3 - Interfaces
HGA slot 1 HGA slot 0
V.24 interface X4
LAN connectors:
LAN 1 (X2)
LAN 2 (X3)
To
CUC/
CUCR or
CUP/
CUPR
50
X1
2
