wclient.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
10-29
Workpoint Clients
optiPoint 500
10.2.3.5 optiPoint Recorder Adapter
The optiPoint recorder adapter allows an external recorder or a second headset to be connect-
ed. The called party must be informed that the call is being recorded.

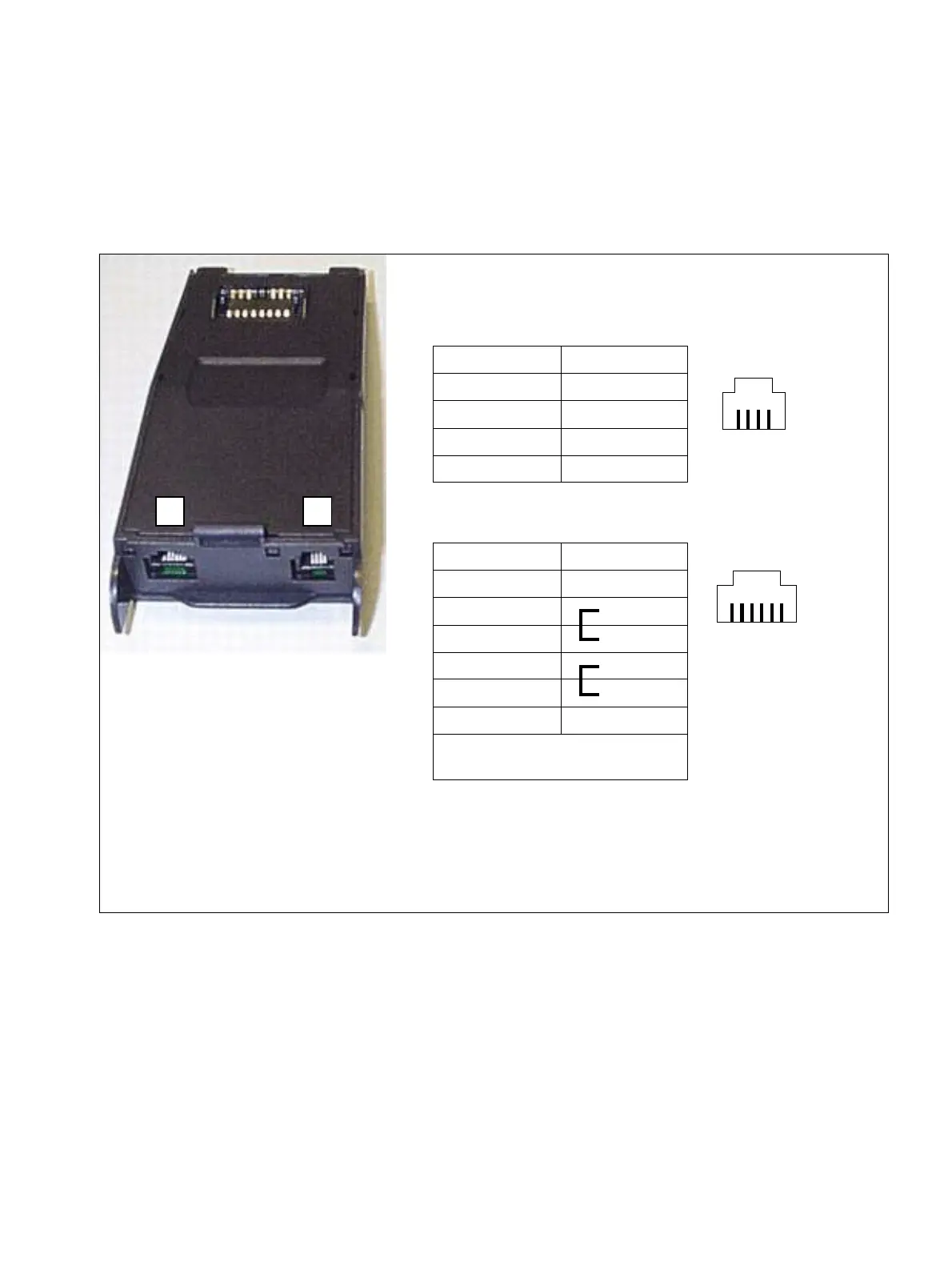

Figure 10-17 optiPoint Recorder Adapter
Assignment of both connection jacks:
Recorders to be connected must meet the following electrical re-
quirements:
Input impedance: >10 kΩ
Frequency progression: 300 to 3000 Hz ± 3 dB
Beep tone level: -26 dBm to -18 dBm at a 600 Ω load
Max. input level: 650 mVeff from a 600 Ω source
1 MW4 port for second headset
Pin Signal
1Tx–
2Rx
3Rx
4Tx+
2 MW6 port for recorder
Pin Signal
1Free
2NF
3NF
4NF
5NF
6Free
Contacts 2+3 and 4+5 are bridged
internally.
21
41
61
