Siemens Hipath 5000 Service Manual

sysdat.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
2-11
System Data
HiPath 3000
2.2.2.6 Design and Dimensions of HiPath 3500
Design
The housing intended for use with 19-inch cabinets (Figure 2-6) HiPath 3500 contains four slot
levels with the following assignments (represented in Figure 4-112):
● Slot levels 1-3: slide-in shelves for peripheral boards (2 boards can be plugged in on each
level)
● Slot level 4: slide-in shelf for CBRC control board
● Slot level 5: Optional boards (up to 3 modules)
The power supply is on the rear panel of the subrack.
The connection to peripherals (telephones, trunks, and others) is set up using MW8 jacks on
the boards front cover.
Dimensions

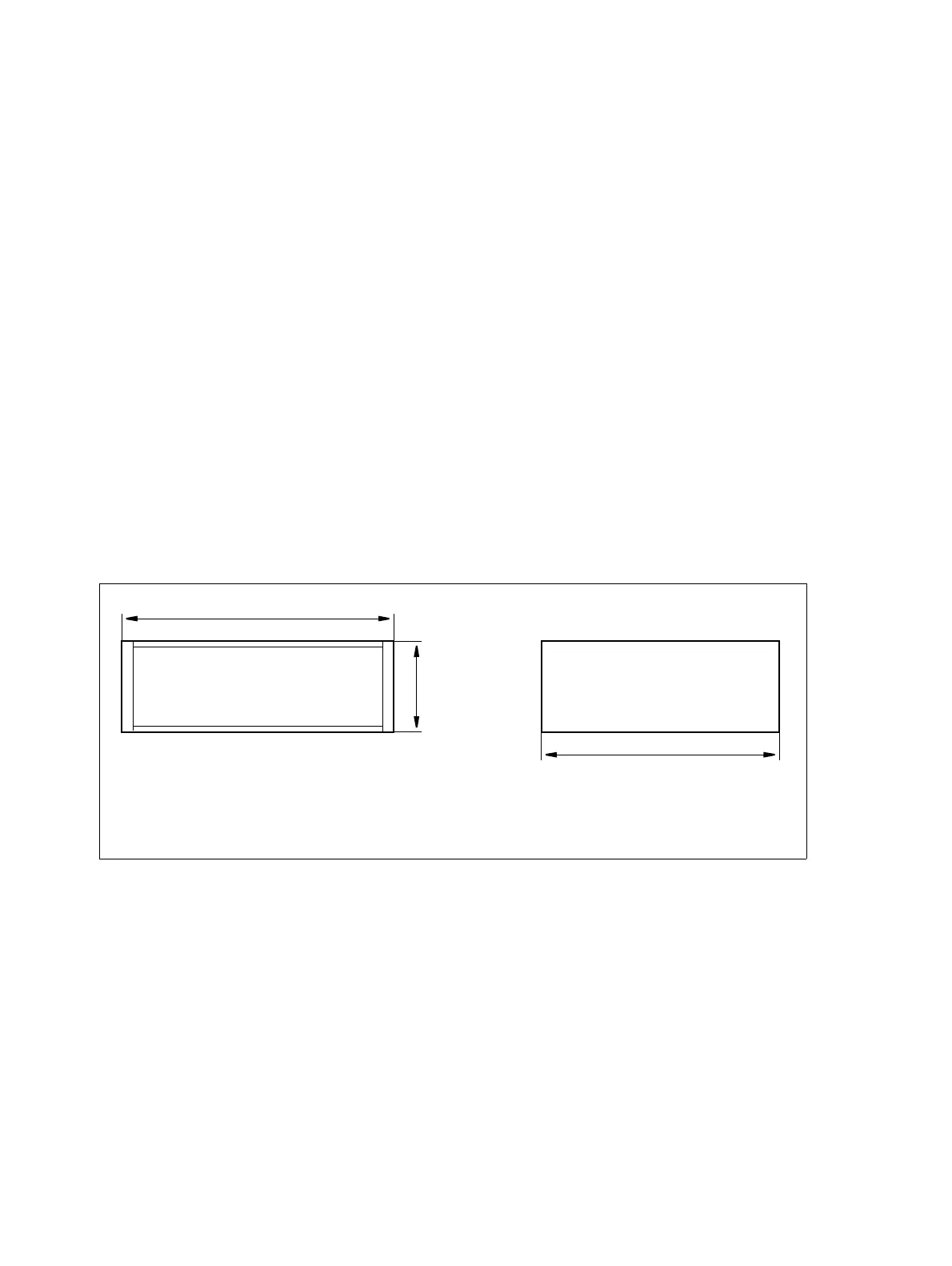

Figure 2-6 HiPath 3500 Dimensions
440 mm
155 mm
380 mm
Necessary height units for 19-inch cabinet assembly: 4
(one height unit corresponds to approx. 1.7’’=43 mm)
