Siemens Hipath 5000 - Figure 3-145 ALUM4 - Interfaces (S30817-Q935-A); Table 3-163 ALUM4 - Interface Assignments (Not for U.S.)

boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-341
Boards for HiPath 3000
Options
Interfaces
ALUM module contact assignments

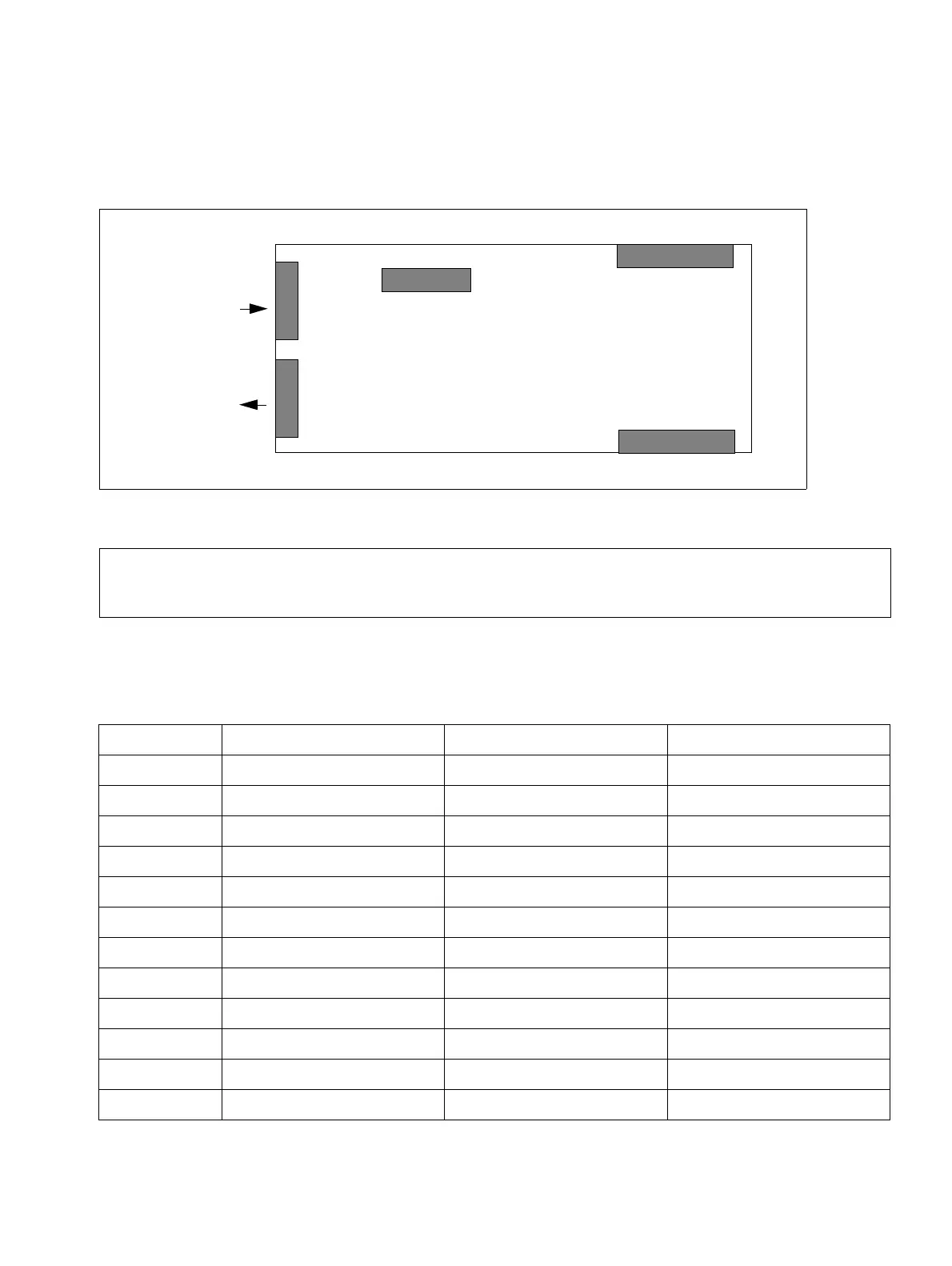

Figure 3-145 ALUM4 - Interfaces (S30817-Q935-A)
>
The cable that is plugged in by default is split and is connected to the TLA and to the
4/8/16SLA board.
Table 3-163 ALUM4 - Interface Assignments (Not for U.S.)
Contact Connector X3 Connector X4 Connector X6
1 R1 from trunk 1a AE1 to Stn. 1a AT1 to TLA a
2 T1 from trunk 1b BE1 to Stn. 1b BT1 to TLA b
3 R2 from trunk 2a AE2 to Stn. 2a AT2 to TLA a
4 T2 from trunk 2b BE2 to Stn. 2b BT2 to TLA b
5 R3 from trunk 3a AE3 to Stn. 3a AT3 to TLA a
6 T3 from trunk 3b BE3 to Stn. 3b BT3 to TLA b
7 R4 from trunk 4a AE4 to Stn. 4a AT4 to TLA a
8 T4 from trunk 4b BE4 to Stn. 4b BT4 to TLA b
9 – – TA1 to SLA* a
10 – – TB1 to SLA* b
11 – – TA2 to SLA* a
12 – – TB2 to SLA* b
ALUM module
CB side
Board side
X1
X2
X3
X4
from the CO
to the
1
8
1
8
X6
1
16
