Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-238 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
S0 networking (not for U.S)
>
For examples of the maximum cable lengths for direct CorNet N/CorNet NQ network-
ing, please refer to Table 2-16.

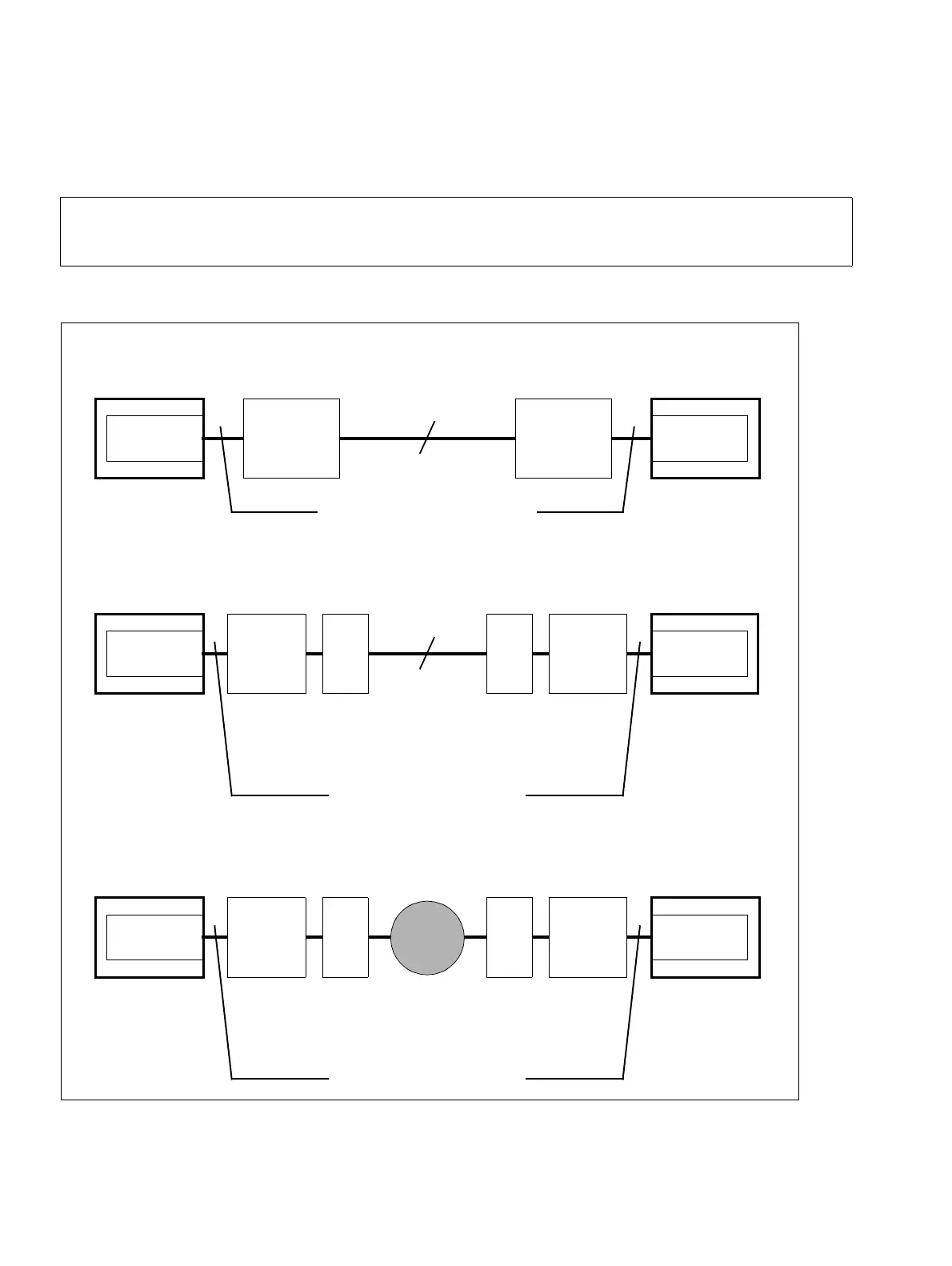

Figure 3-97 S
0
Networking Options (Not for U.S.) (Examples for HiPath 3750)
HiPath 3750
STMD8
MDFU or
MDFU-E
HiPath 3000 /
HiPath 4000
MDFU Cable (CABLU)
STMD8
S
0
networking in a plant without NT
MDFU or
MDFU-E
4
S
0
HiPath 3750
STMD8
MDFU
or
HiPath 3000 /
HiPath 4000
STMD8
S
0
networking in a plant with NT
2
MDFU or
MDFU-E
NT NT
Fixed line (cabling must be approved by
NT suppliers)
MDFU Cable (CABLU)
HiPath 3750
STMD8
MDFU
or
HiPath 3000 /
HiPath 4000
STMD8
S
0
networking using leased lines
MDFU or
MDFU-E
NT NT
Fixed connection via public network (NT
connection according to Figure 3-96)
MDFU Cable (CABLU)
