Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-60 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Central Boards
Slots
Push the LUNA2 power supply unit into the slots provided in the lower part of the system cab-
inet shelf until you hear a click (see Figure 4-19).
The power supply unit slots must be covered with the outer panel shown in Figure 3-20 (basic
cabinet) and in Figure 3-21 (expansion cabinet) before the system is started up.

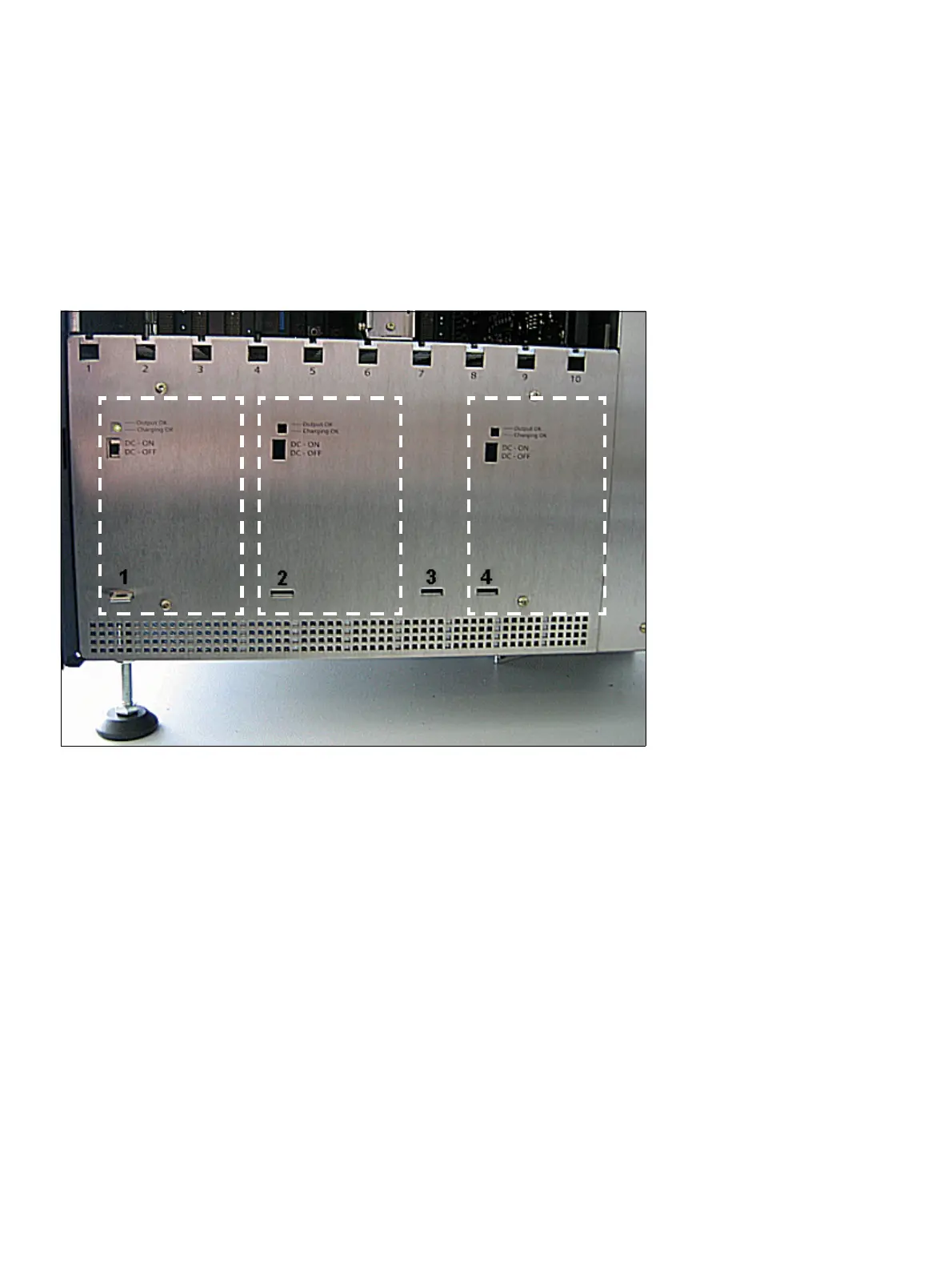

Figure 3-20 LUNA2 Slots in the Basic Cabinet (With Outer Panel Mounted)
