Siemens Hipath 5000 - Figure 3-68 Hipath 3800 Basic Cabinet - 1 X DIUN2 + 2 X PBXXX

Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-142 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
Connection 1x DIUN2 + 2 x PBXXX

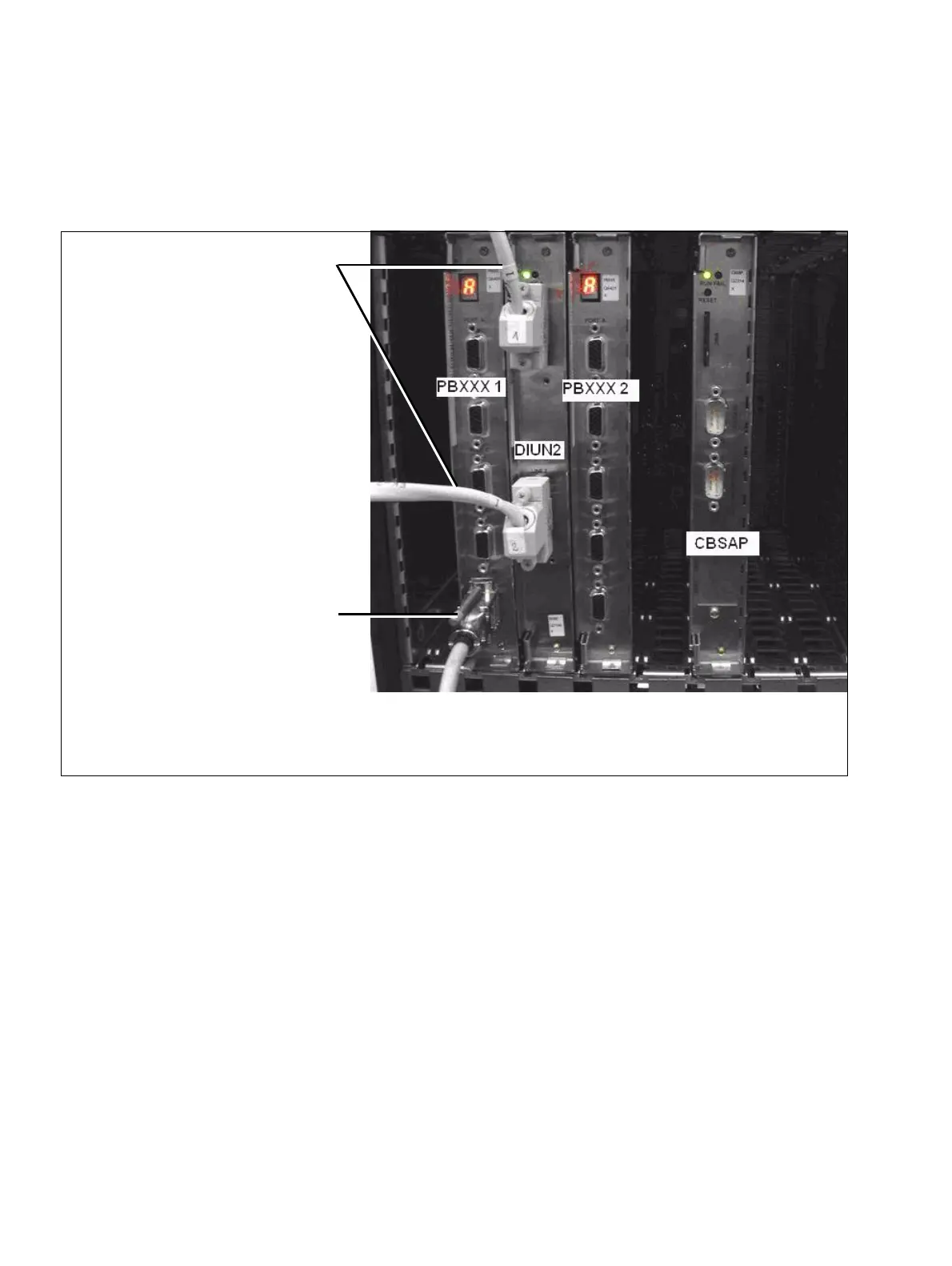

The figure below shows an example of a DIUN2 with two PBXXXs in the basic cabinet.
Figure 3-68 HiPath 3800 Basic Cabinet - 1x DIUN2 + 2 x PBXXX
Connection cable DIUN2–
PBXXX: C39195-A7700-B7
Note: The cables must run
under the cabinet.
The CAS cables are connected to the backplane using two APPCU adapters (see Figure 3-
69).
Cable to service PC
