Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-42 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3800
4.2.5.4 Installing the SIVAPAC-SIPAC Board Adapter
The peripheral board slots on the HiPath 3800 are fitted with SIPAC 9 SU connectors. The
TMEW2 and TMDID (for U.S. only) boards have SIVAPAC connector strips and as a result,
SIVAPAC-SIPAC board adapters have to be installed in order to use them in HiPath 3800.
The SIVAPAC-SIPAC board adapter consists of three individual parts (refer to Figure 4-23):
two adapter modules
one startup module

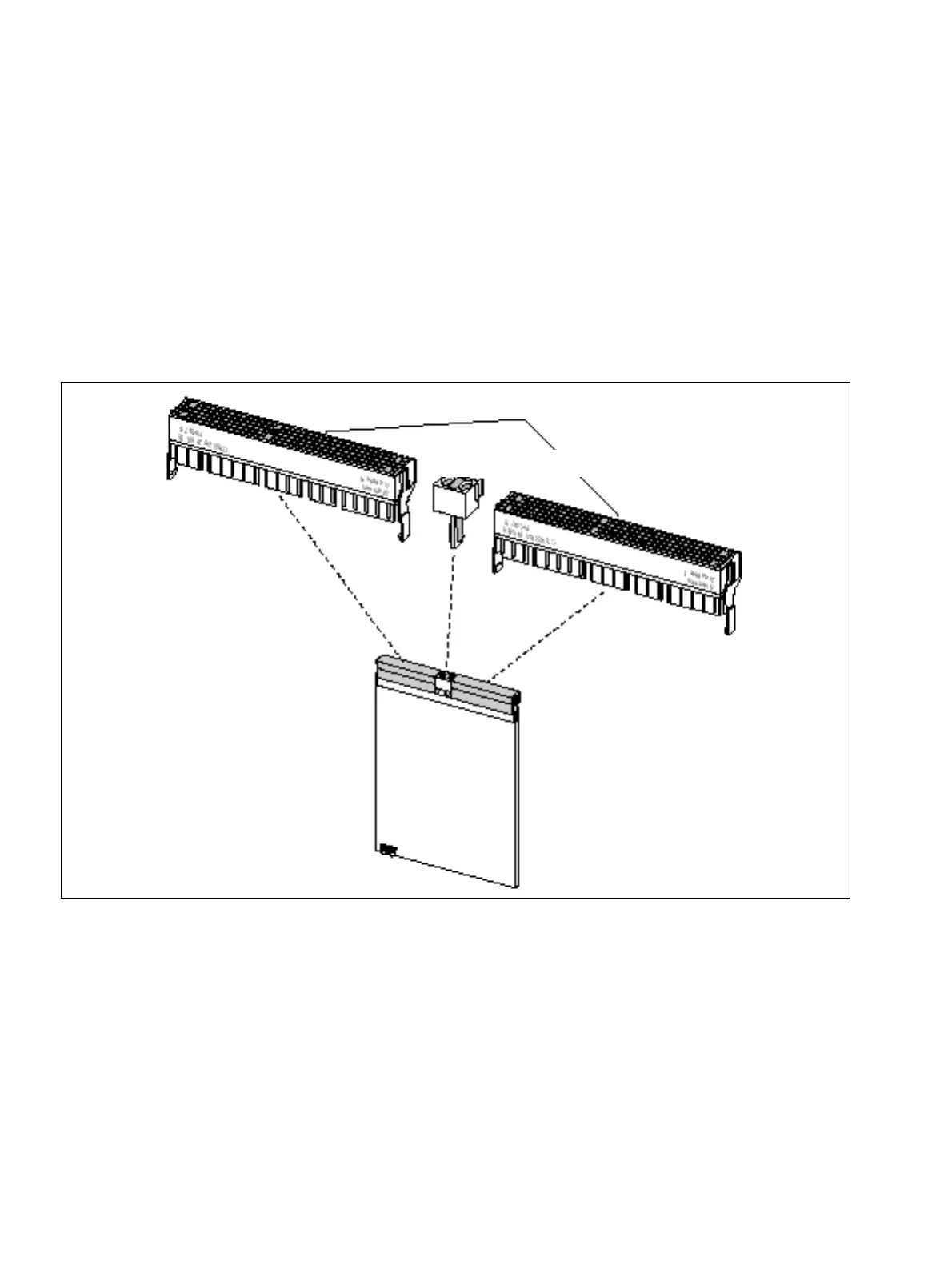

Figure 4-23 SIVAPAC-SIPAC Board Adapter
Component
side
Adapter modules
Startup module
board
