Boards for HiPath 3000
Central Boards
BSG 48/38
You can use a BSG 48/38 battery cabinet instead of the battery pack to extend the bridging time
in the event of a power failure. The BSG 48/38 battery cabinet (S30122-K5950-F300) consists
of
● an upright housing
● a charging rectifier
● a battery set (38 Ah/48 V)
The battery cabinet is designed for direct connection to the HiPath 3800 communication sys-
tem. The DC power cable (S39195-A7985-B10) provided lets you connect any system cabinet
to the battery cabinet (do not connect to extension cables). Figure 3-23 is a schematic display
of the connections between the battery cabinet BSG 48/38 and HiPath 3800.
>
For detailed information about safety precautions as well as using and connecting
the battery cabinet, refer to the installation and startup instructions that came with
the cabinet.

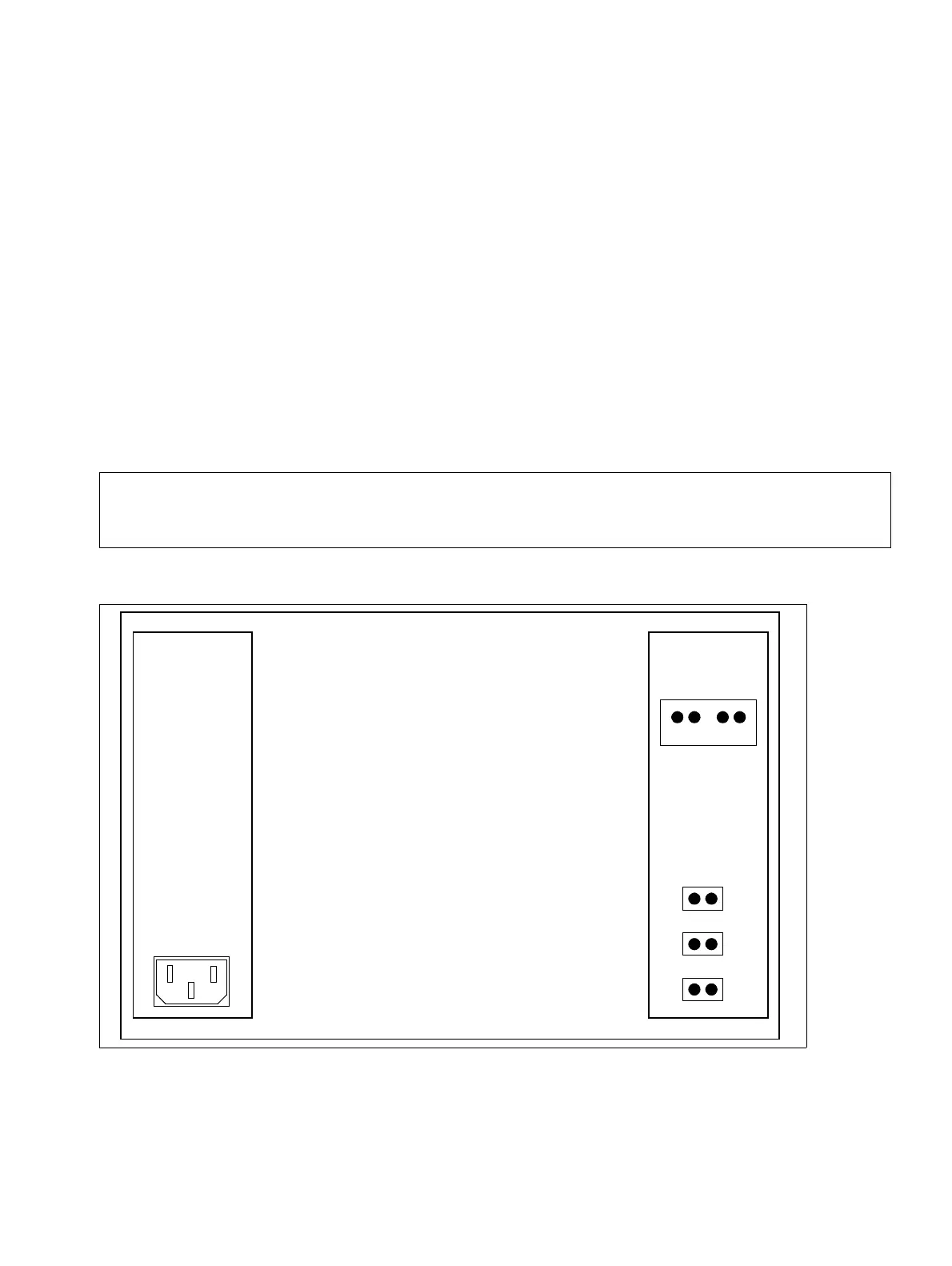

Figure 3-22 Rear View of the BSG 48/38 Battery Cabinet (S30122-K5950-F300)
DC output 2:
–48-V special
outputs
AC input
230 V
+– +–
1
2
3
DC output 1:
–48 V to HiPath
3800
BSG 48/38
