Siemens Hipath 5000 Service Manual

boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-169
Boards for HiPath 3000
Peripheral Boards
3.3.13 SLCN (Not for U.S.)
Introduction
The SLCN (Subscriber Line Module Cordless New) board is used in HiPath 3800 and connects
base stations to HiPath Cordless Office. There are 16 U
P0/E
ports available for this.
You can install up to four SLCN boards in one system.
Chapter 11 contains basic information on the options available for operating HiPath Cordless
Office.
Base stations must be clocked with a high degree of accuracy for HiPath Cordless Office. For
this, the subboard CMS must be plugged into the CBSAP board (see Table 11-1).
Front panel

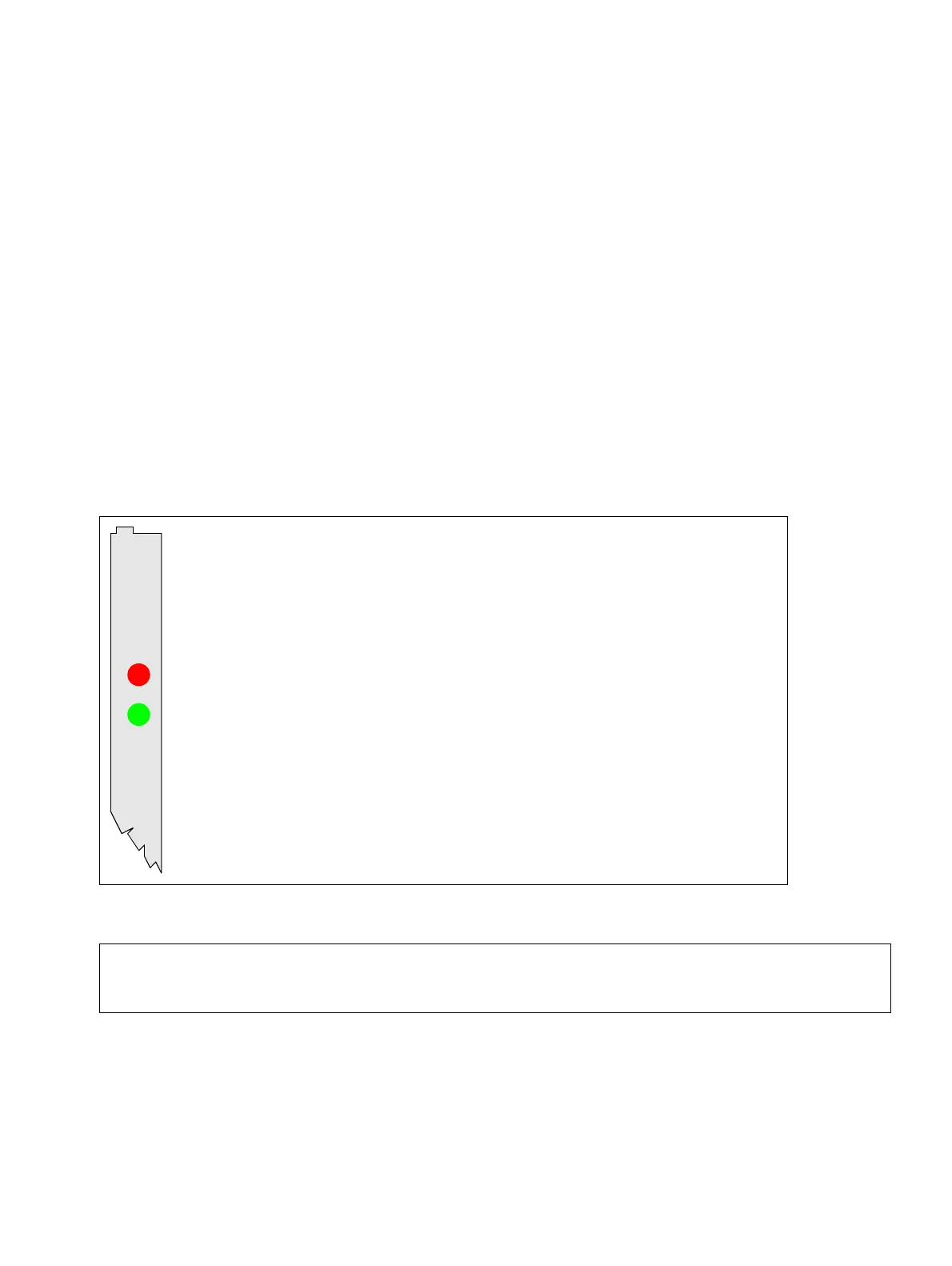

Figure 3-77 SLCN (S30810-Q2193-X300) - LEDs on the Front Panel
>
To ensure sufficient shielding, provide the board with a shielding panel. For informa-
tion on mounting the shielding panel, see Section 4.2.5.2.
Two LEDs indicating the board status:
● LED (red)
● LED (green)
