Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-350 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Options
3.4.4 ANI4R (for selected countries only)
Introduction
The ANI4R (Automatic Number Identification Rack) board is responsible for receiving station
numbers modulated using the CPFSK method, demodulating them, and forwarding them to the
HiPath 3500 or HiPath 3300 base system. In V4.0 SMR-7 or later, the station name is analyzed
in addition to the call number and shown on the telephone display.
Each ANI4R module can serve four trunks. It contains the external trunk board hardware inter-
faces (TMGL4R) and the options bus interface.
Interfaces
>
If ANI4R is installed as option 1 or 2, TMGL4R board must be inserted in slot 4, 6 or
8 (slots 6 and 8 not available with HiPath 3300).

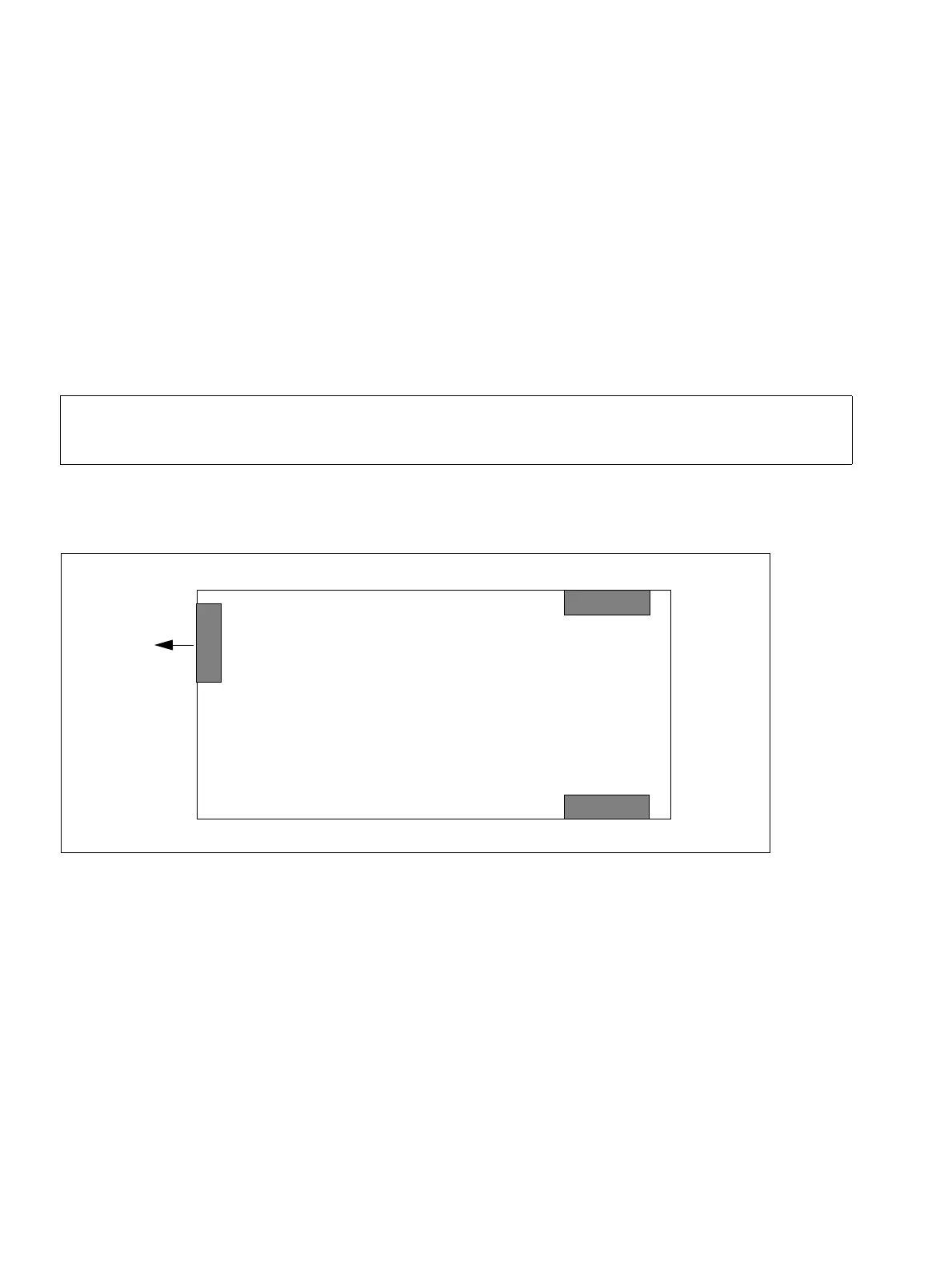

Figure 3-150 ANI4R (for selected countries only) (S30807-Q6917-Z103)
To OPALR, or previous option
Board side
TMGL4R
X1
X2
X3 (10-pin MW10 jack)
ANI4R
1
10
