Peripheral Boards

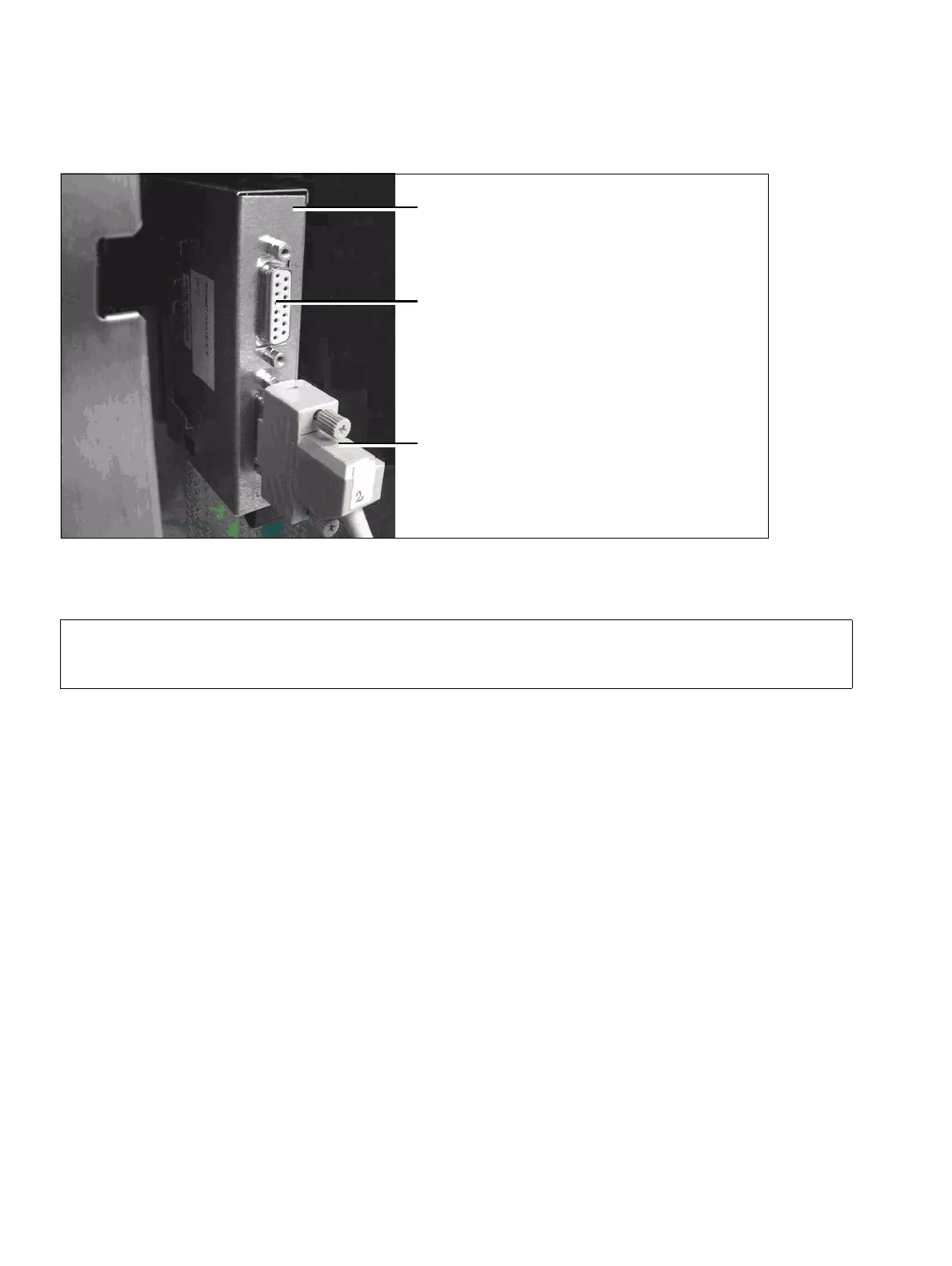

Figure 3-66 PBXXX (for selected countries only) - Connecting the CAS Cable Using the
APPCU Adapter
>
The backplane of the PBXXX board must be closed with the adapter panels provided
(C39165-A7050-C35, Figure 3-67).
Connection cable DIUN2–PBXXX:
C39195-A7700-B7
APPCU adapter (S30807-K5415-X) on
the backplane
CAS cable connection (see “Assigning
both CAS cables” on page 3-144)
