Workpoint Clients
optiPoint 500
These indications show that the telephone is starting up and performing a self-test. Download-
ing has finished and the telephone is ready for operation when you see the date and time on
the display.
10.2.1.8 Connections on the Bottom of the Telephone

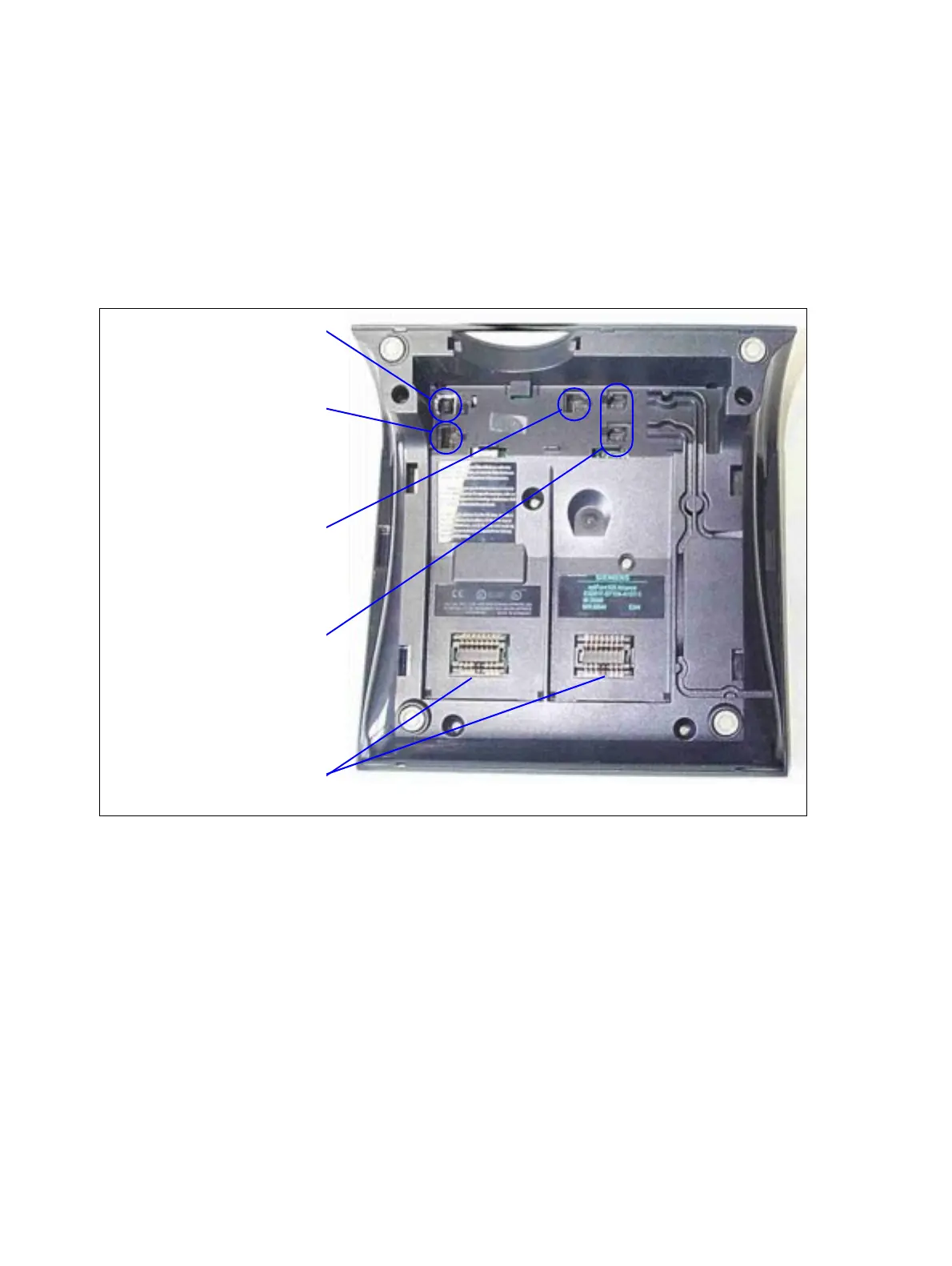

Figure 10-6 optiPoint 500 Connection Options
USB interface
MW8 (RJ45) connection
jack for optiPoint key mod-
ule, optiPoint BLF
MW8 (RJ45) connection
jack for HiPath 3000
MW4 (RJ8) connection
jacks:
Upper = headset equip-
ment
Lower = handset
Option bays
(see Figure 10-10)
