3.4.19 V.24 Cable
The V.24 cable is used, for example, for connecting a service PC to the V.24 interface on all
HiPath 3000 systems (V1.2 or later).
V.24 cable assignment

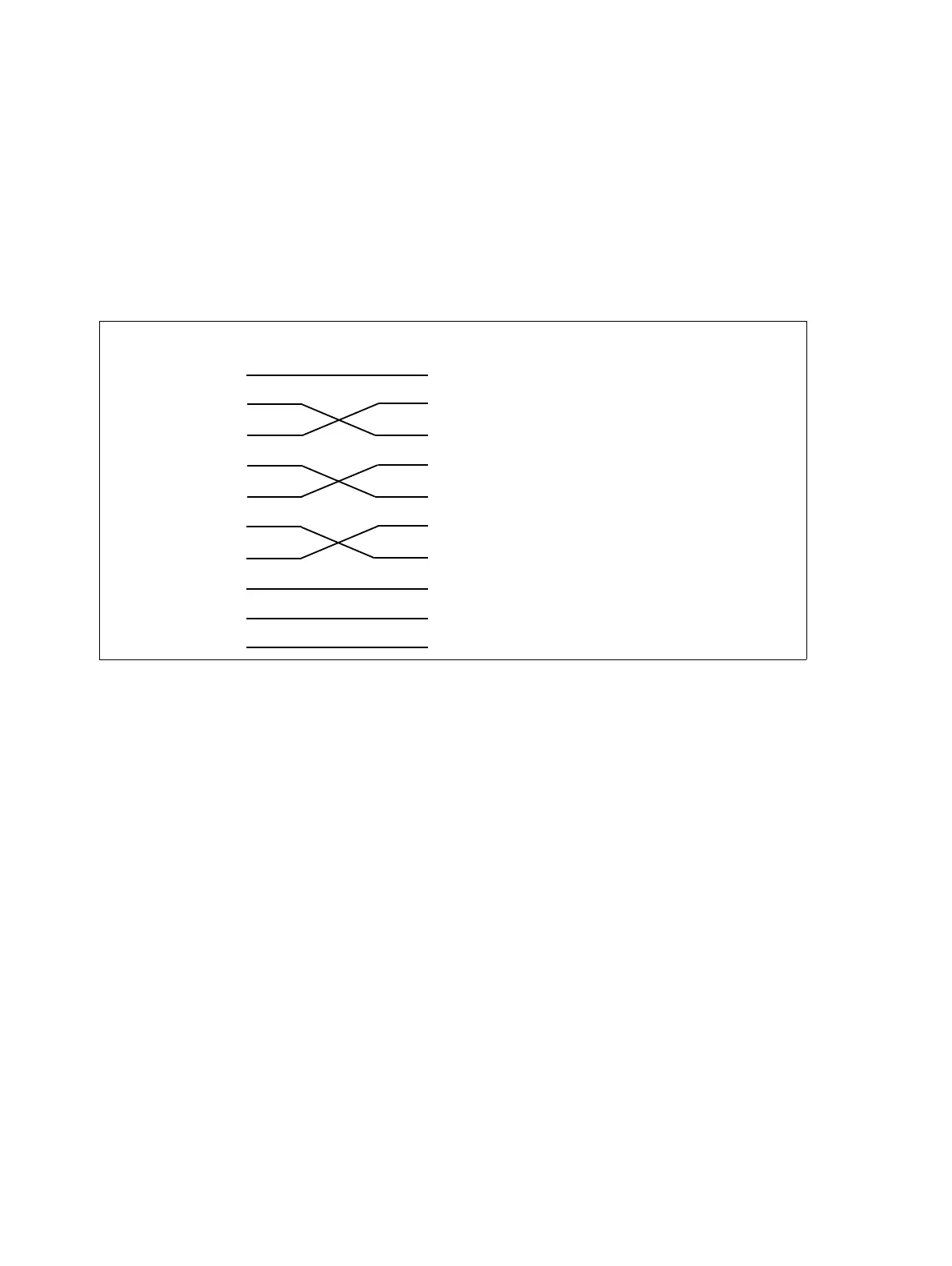

Figure 3-175 V.24 Cable Assignment (C30267-Z355-A25)
9-pin jack
DCD
RxD
TxD
DTR
DSR
RTS
CTS
GND
RI
1
2
3
4
6
7
8
5
9
Shield
Data Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Data Send Ready
Request To Send
Clear To Send
Ground
Ring Indicator
DCD
RxD
TxD
DTR
DSR
RTS
CTS
GND
RI
1
2
3
4
6
7
8
5
9
9-pin jack
