Siemens Hipath 5000 - Configuration Notes; Figure 4-112 Hipath 3500 - Slot Levels in the 19-Inch Housing

inst_h3.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
4-197
Installing HiPath 3000
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
4.4.4.9 Configuration notes
HiPath 3500: system overview and slots
7
Caution
For safety, operate HiPath 3500 only with the housing front closed. Always use dum-
my panels (C39165-A7027-B115) to close slots that are not equipped with boards.

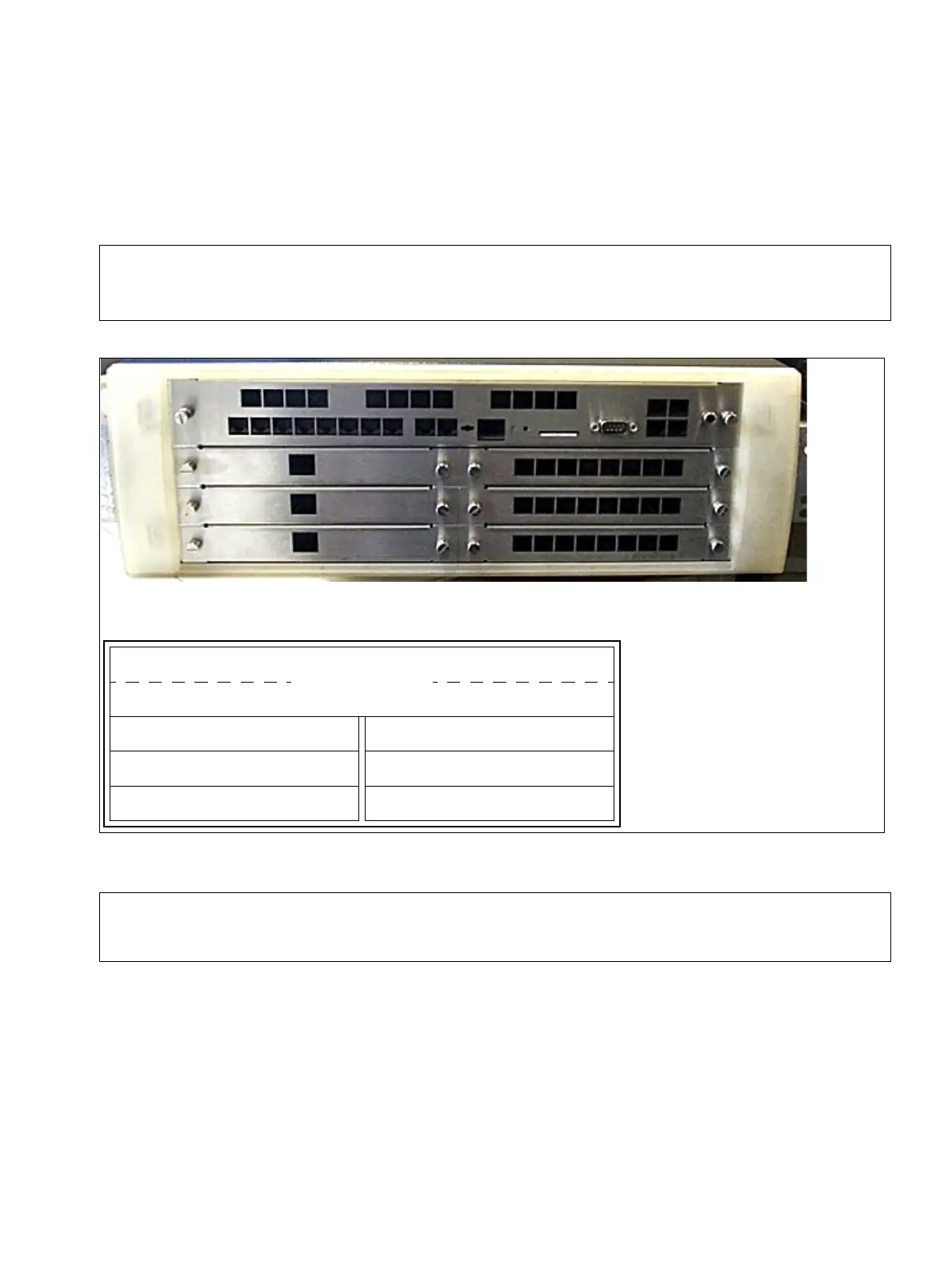

Figure 4-112 HiPath 3500 - Slot Levels in the 19-Inch Housing
>
It is imperative that you observe the restrictions regarding TS2R installation.
Slot 4 Slot 5
Slot 8
Slot 9
Slot 6 Slot 7
Slots 1-3
Slot
levels:
5 (options)
4 (CBRC)
3 (Peripheralboards)
2 (Peripheralboards)
1 (Peripheralboards)
