optiPoint 500
10.2.1 optiPoint 500 Telephones
10.2.1.1 optiPoint 500 entry
Main features
● 8 function keys (can be modified with HiPath 3000 Manager E) with LEDs (see Page 10-5)
● Open listening
● 2 volume adjustment keys (plus/minus) and pitch
● Suitable for wall mounting
● No modularity (no connecting capability for adapters or add-on devices), no display
Standard key assignment (default) for optiPoint 500 entry
Refer to Section 10.2.1.6 for connection requirements.

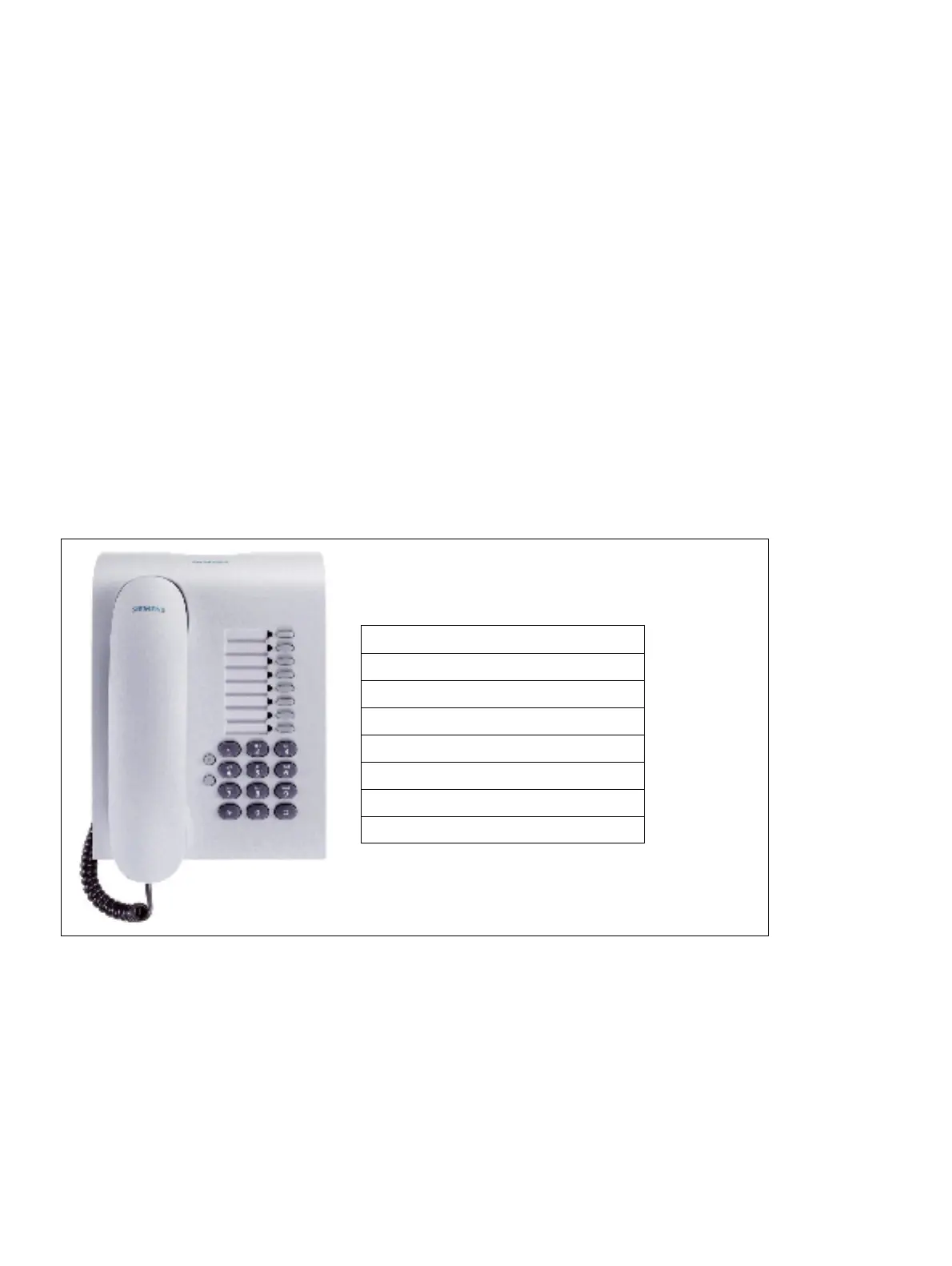

Figure 10-1 optiPoint 500 entry - Standard Key Assignment (Default)
Consultation hold
Number redial
Message
Callback
Speed dialing
Microphone on/off
Loudspeaker
Disconnect
