Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-162 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
4.3.6.1 Inserting or Removing Boards
Introduction
Peripheral boards can be inserted and removed while the power is connected. Two levers are
attached to the front corners of the boards to simplify insertion and removal. When closed,
these levers engage with the board, locking it in place.
See Section 9.2.2 for information on upgrading peripheral boards.
Procedure for inserting and removing the boards (Figure 4-93)
Locking and Unlocking Boards
Special board attachments
The power supply is screwed onto the grill of each cabinet.
If Then
Boards
Unlocking the
board
(1)
Swing both plastic levers outward simultaneously. You can now pull the board
out of the system on its guide rails.
Boards
Latching as-
sembly
(2)
Slide the board into the system using its guide rails. Insert the hooks on the
locking levers into the recesses in the shelf. Press down on both levers simul-
taneously in the direction of the shelf until they snap into place.

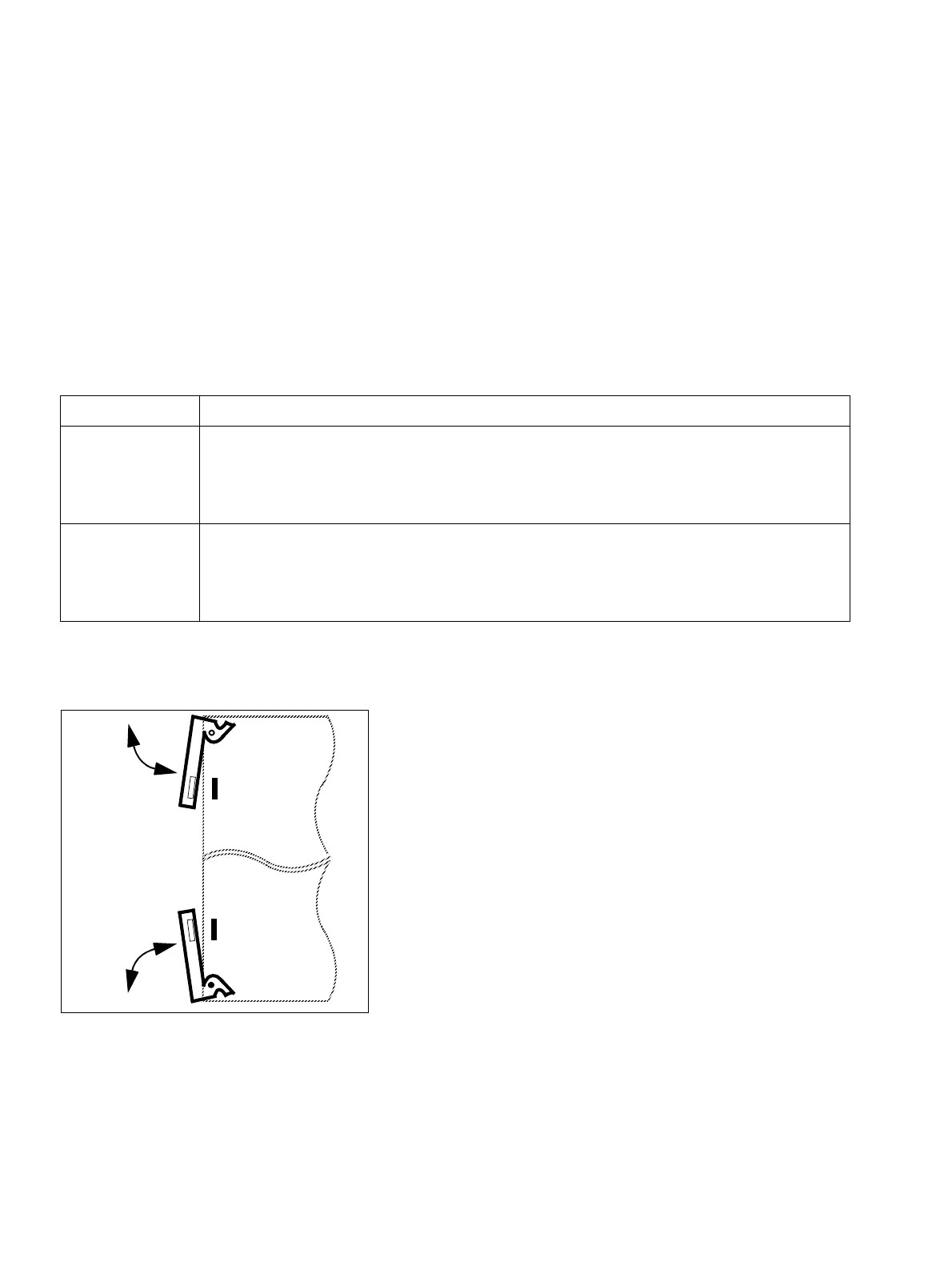

Figure 4-93 Locking and unlocking boards
(2)
(2)
(1)
(1)
