Siemens Hipath 5000 - Figure 3-124 TMGL4 R (for U.S. Only) (S30810-K2918-Z); TMGL4 R (for U.S. Only)

boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-309
Boards for HiPath 3000
Peripheral Boards
3.3.37 TMGL4R (for U.S. only)
Introduction
A TMGL4R trunk module connects up to four analog ground-start or loop-start trunks to HiPath
3500 and HiPath 3300.
Ground start is the default.
Interfaces

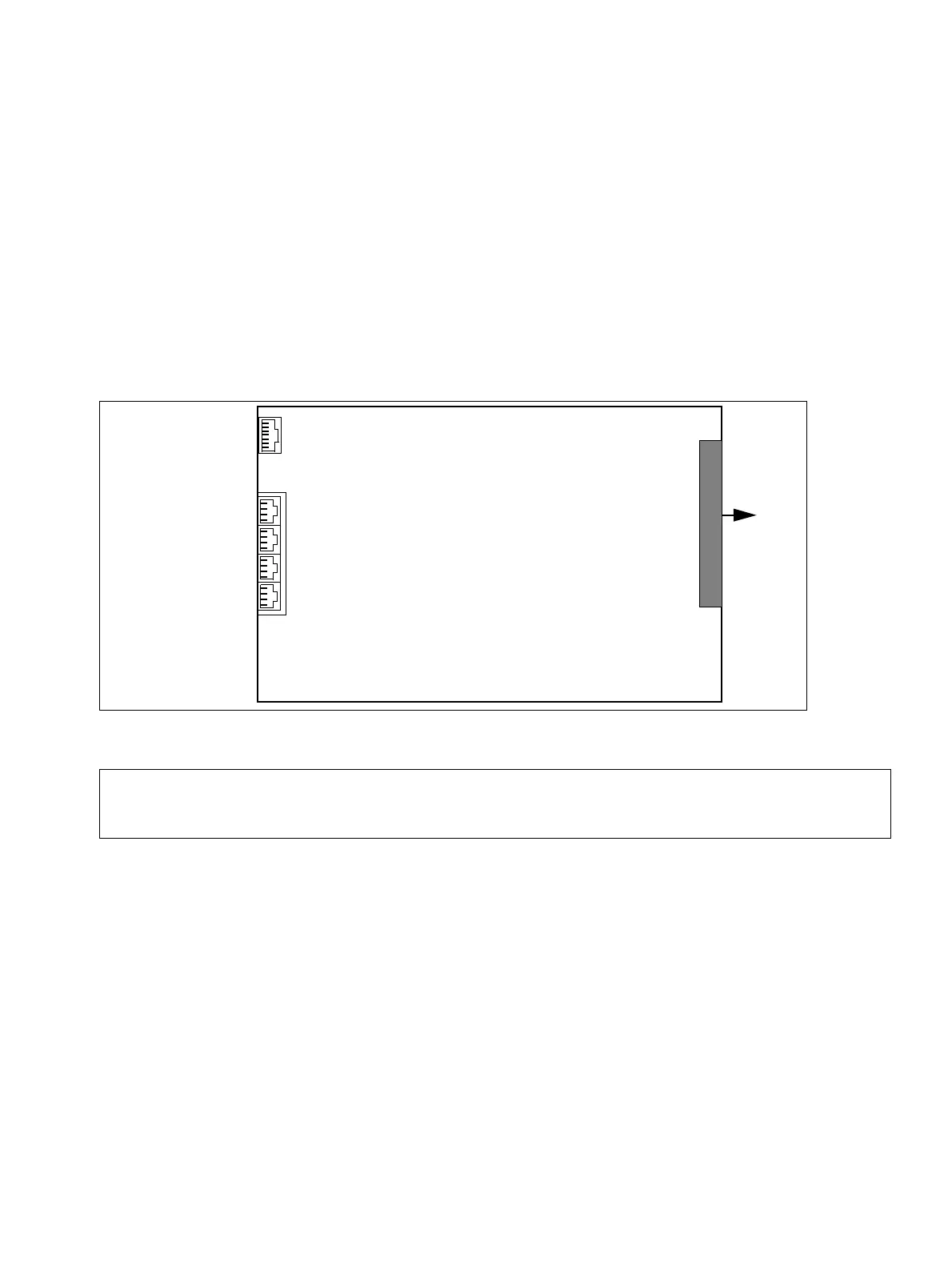

Figure 3-124 TMGL4R (for U.S. only) (S30810-K2918-Z)
>
If ANI4R is installed as option 1 or 2, TMGL4R board must be inserted in slot 4, 6 or
8 (slots 6 and 8 are not available with HiPath 3300).
X1
50
2
To
CUPR
CUCR
X4 (4 MW4 jacks)
11
To trunk 1
:
:
:
To trunk 4
To ANI4R
1
X5 (MW10 jack)
To G EE
X3
44
