Boards for HiPath 3000
Peripheral Boards
Front panel

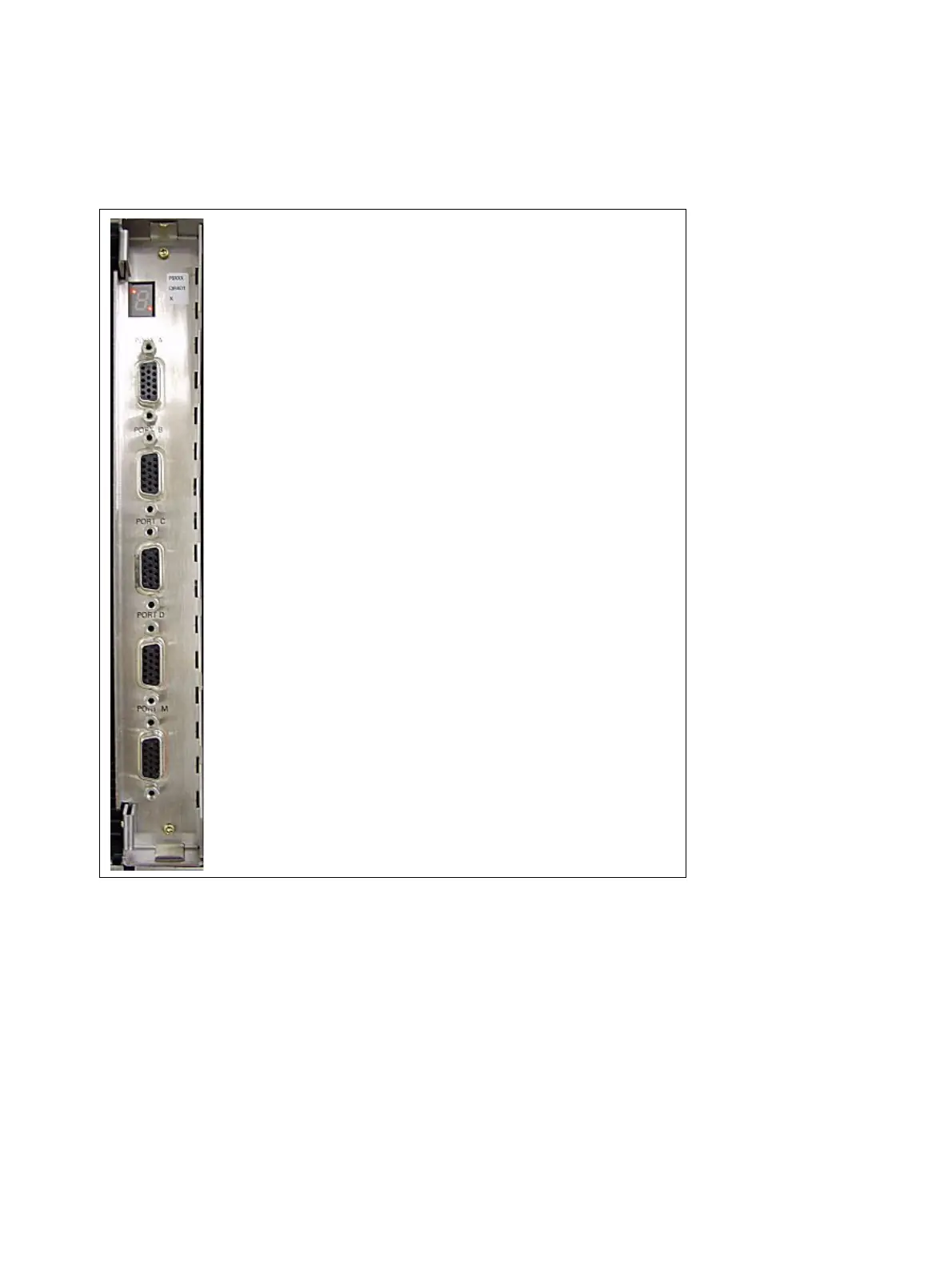

Figure 3-64 PBXXX (S30810-Q6401-X) (for selected countries only) - Front Panel
Seven-segment display
Port A (not used)
Port B (not used)
Port C (not used)
Port D (not used)
Port M (for connecting the service PC with the ECGM
tool)
