Boards for HiPath 3000
Peripheral Boards
Extension modules
The HXGM3 board has three HGA (HiPath Gateway Accelerator) slots, which can be used to
connect the extension modules.
Table 3-38 HXGM3 Extension Modules
Extension module Part number Function Notes
PDM1
(PMC DSP modules)
S30807-
Q5692-X100
Used for expansion
for an additional eight
DSP channels.
● Up to two PDM1 modules
per HXGM3.
● Installed at HGA slots 0
and 2 only.

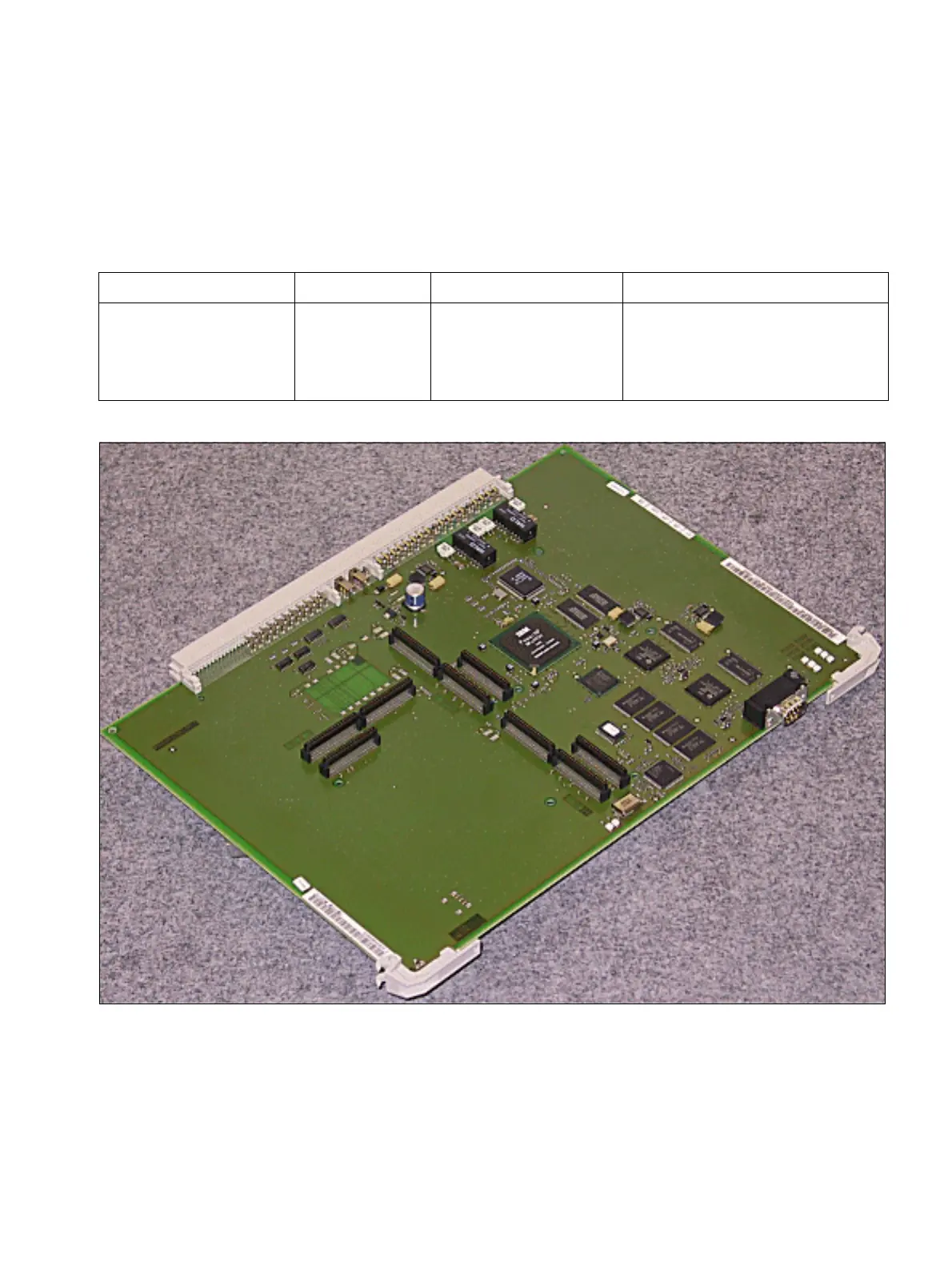

Figure 3-44 HXGM3 (S30810-Q2942-X)
