Boards for HiPath 3000
Peripheral Boards
Extension modules
The STMI2 board has two HGA (HiPath Gateway Accelerator) slots, which can be used to con-
nect the extension modules.
Table 3-110 STMI2 - Extension Modules
Extension
module
Part number Function Notes
PDMX
(PMC DSP
Module Ex-
tended)
S30807-Q5697-
X200
The PDMX extension module
is not released at present.

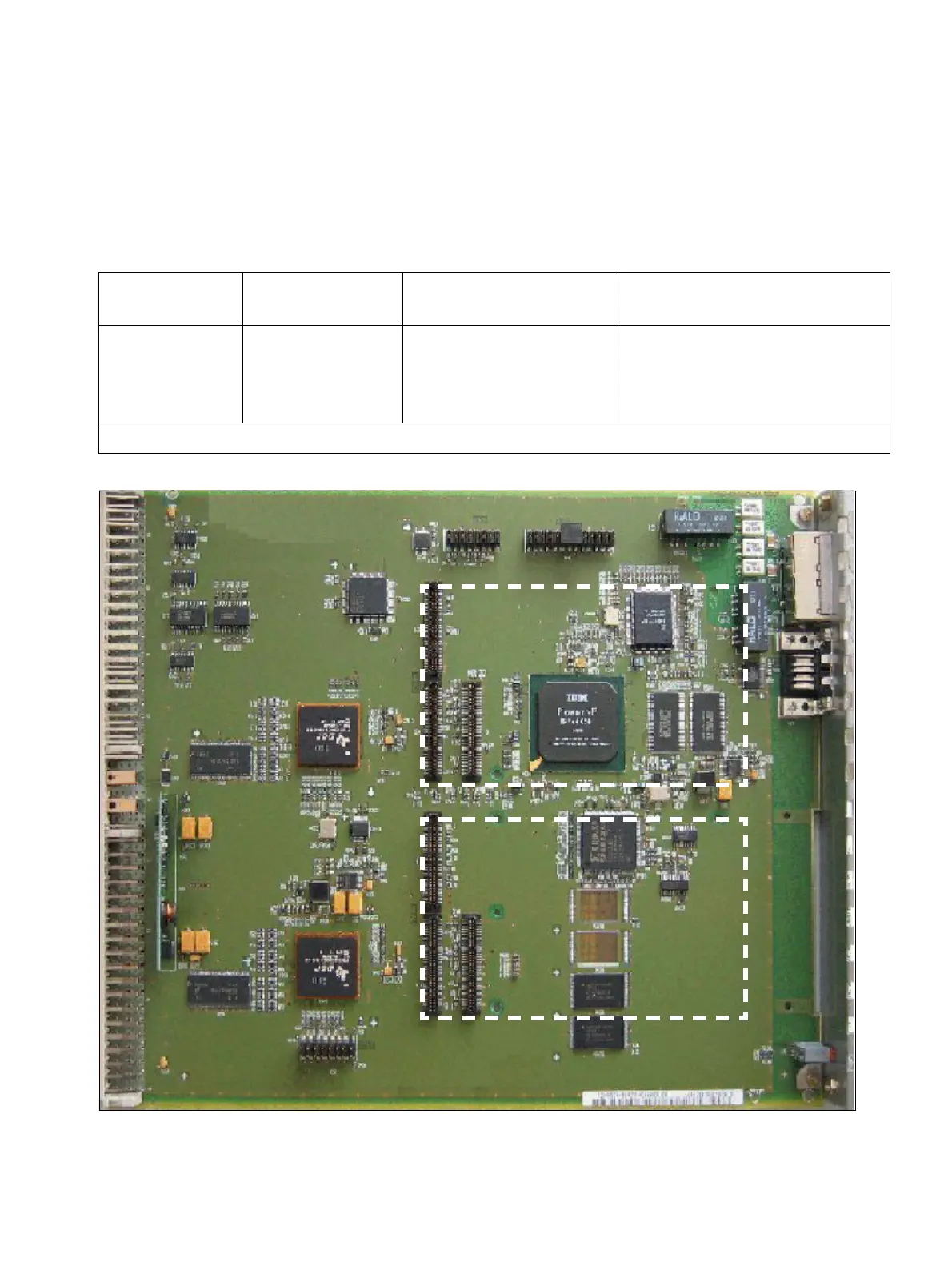

Figure 3-102 STMI2 (S30810-Q2316-X100) - HGA Slots
HGA
slot 1
HGA
slot 0
