Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-266 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
The MSI board TLA8 with eight analog trunks for DP and DTMF signalling in HiPath 3550 and
HiPath 3350.

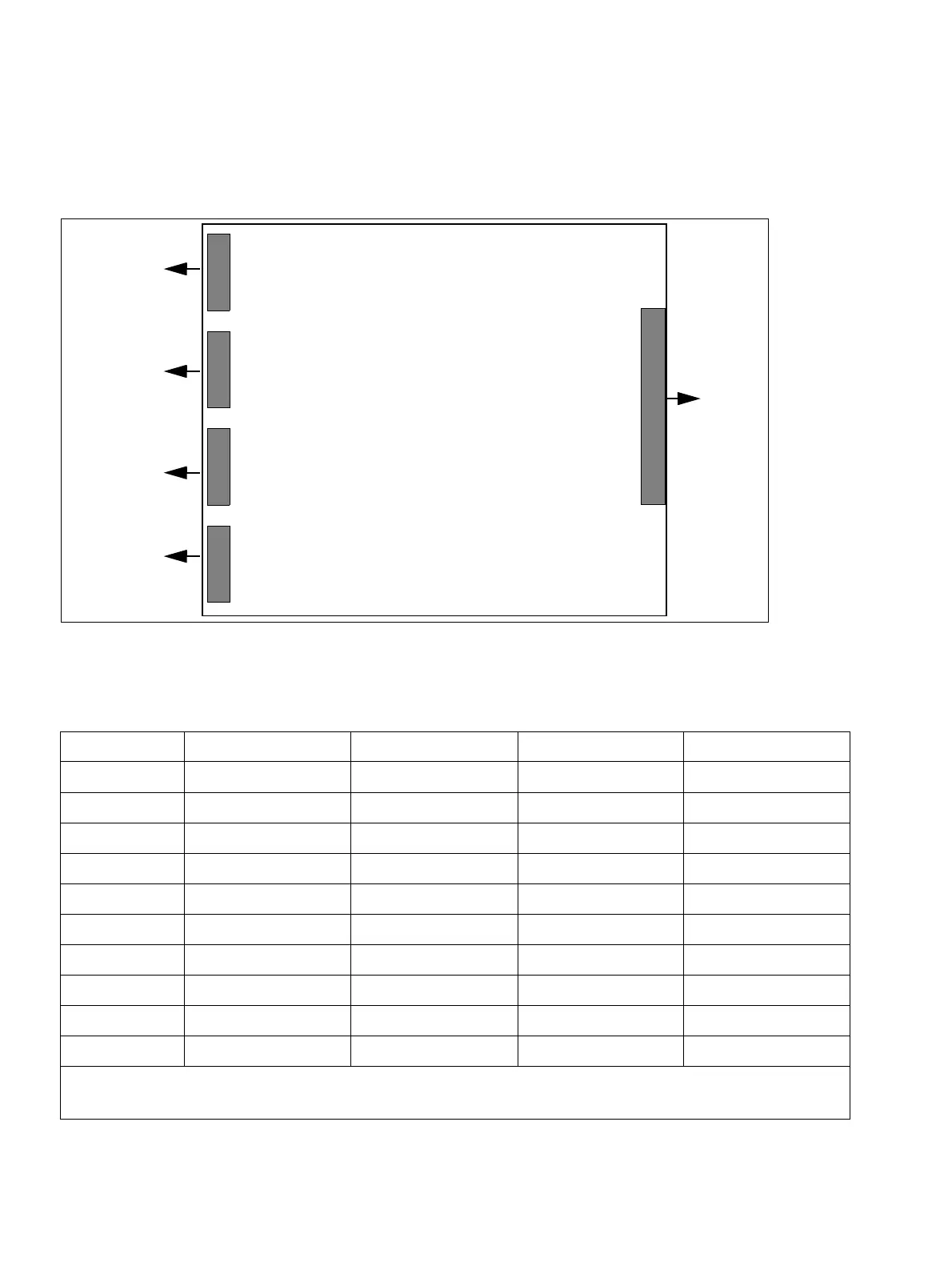

Figure 3-111 TLA8 (Not for U.S.) - Interfaces (S30817-Q926-Axxx)
Table 3-118 TLA8 (Not for U.S.) - Contact Assignments
Contact Connector X3 Connector X2 Connector X4 Connector X5
1 GND a trunk 1 a trunk 5 GND
2 b trunk 1 b trunk 1 b trunk 5 b trunk 5
3 a trunk 1 a trunk 2 a trunk 6 a trunk 5
4 b trunk 2 b trunk 2 b trunk 6 b trunk 6
5 a trunk 2 a trunk 3 a trunk 7 a trunk 6
6 b trunk 3 b trunk 3 b trunk 7 b trunk 7
7 a trunk 3 a trunk 4 a trunk 8 a trunk 7
8 b trunk 4 b trunk 4 b trunk 8 b trunk 8
9 a trunk 4 – – a trunk 8
10GMZ 1– –GMZ 2
GMZ= Call charging module assignment
GND=GND for GEE50 FKR, otherwise free
X1
50
2
TLA8
X3
1
10
X2
1
8
X4
1
8
X5
1
10
To
CUP/
CUC
T/R ports
MSI 1 - 4
To CO
to GEE
Module
to GEE
Module
T/R ports
MSI 5 - 8
To CO
To Next Page
