Boards for HiPath 3000
Options
Notes on displaying options
You can use HiPath 3000 Manager E to display the presence of options. The presence of MPPI
or UAM (HiPath 3550 and HiPath 3350 only) is displayed as “Option 5”.
The ALUM4 module cannot be displayed.
Slot for EXM
UAM (not for
U.S.)
S30122-X7217-X ● Used in HiPath 3550 and HiPath 3350 (wall housing).
● Connected to OPAL and analog interface (for the an-
nouncement function)
UAMR (not
for U.S.)
S30122-X7402-Z ● Used in HiPath 3500 and HiPath 3300 (19-inch hous-
ing).
● Connected to OPALR and analog interface (for the an-
nouncement function).

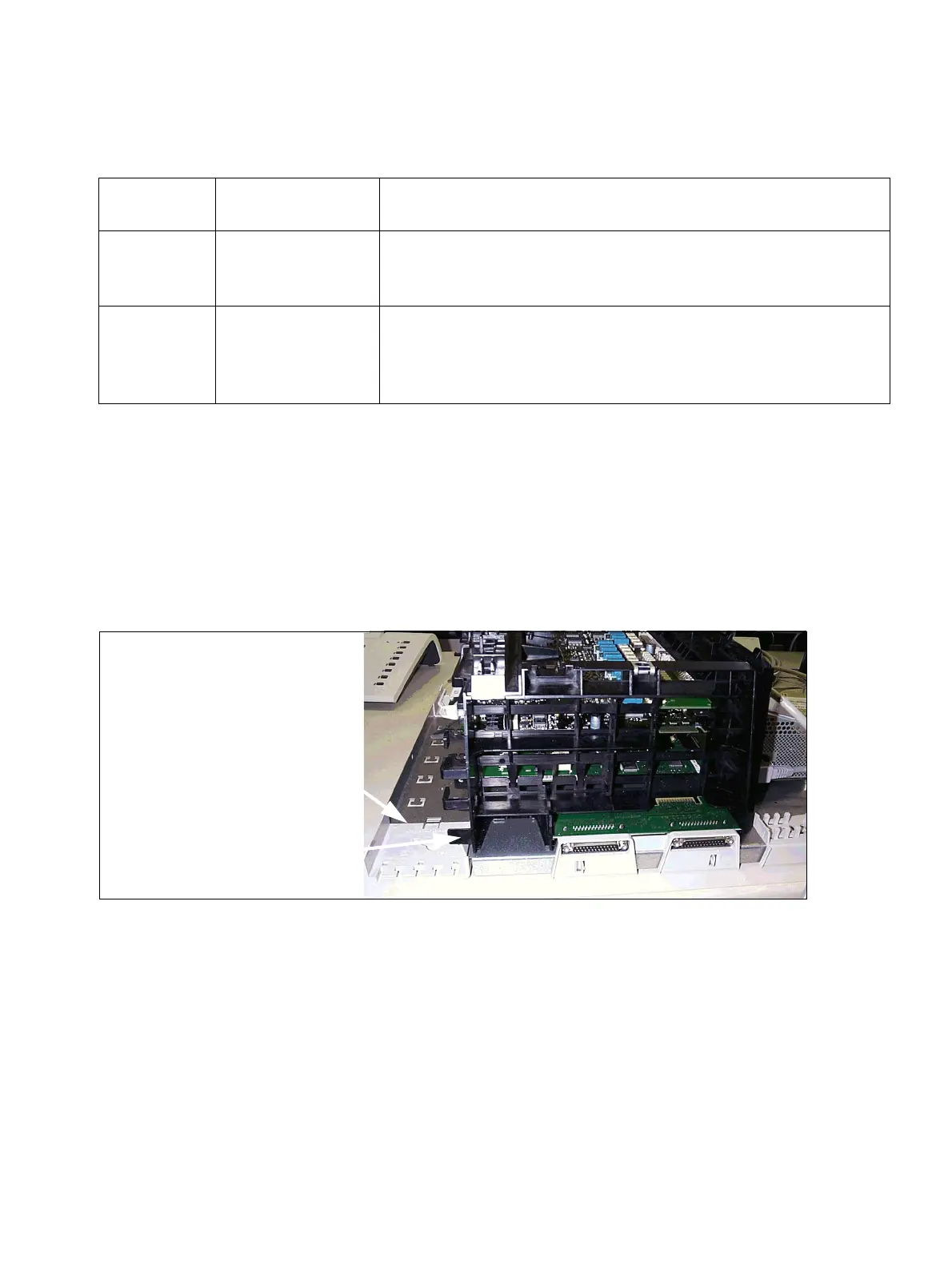

Figure 3-151 EXM Slot for HiPath 3550 and HiPath 3350 Wall Housing
Table 3-169 Announcement and Music Modules
Module/
Board
Part number Notes
Cable duct
Slot for
EXM module
