Installing HiPath 3000

P31003-H3560-S403-54-7620, 09/05

4-14 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual

inst_h3.fm

Installing HiPath 3800

Installing a Two-Cabinet System Side by Side

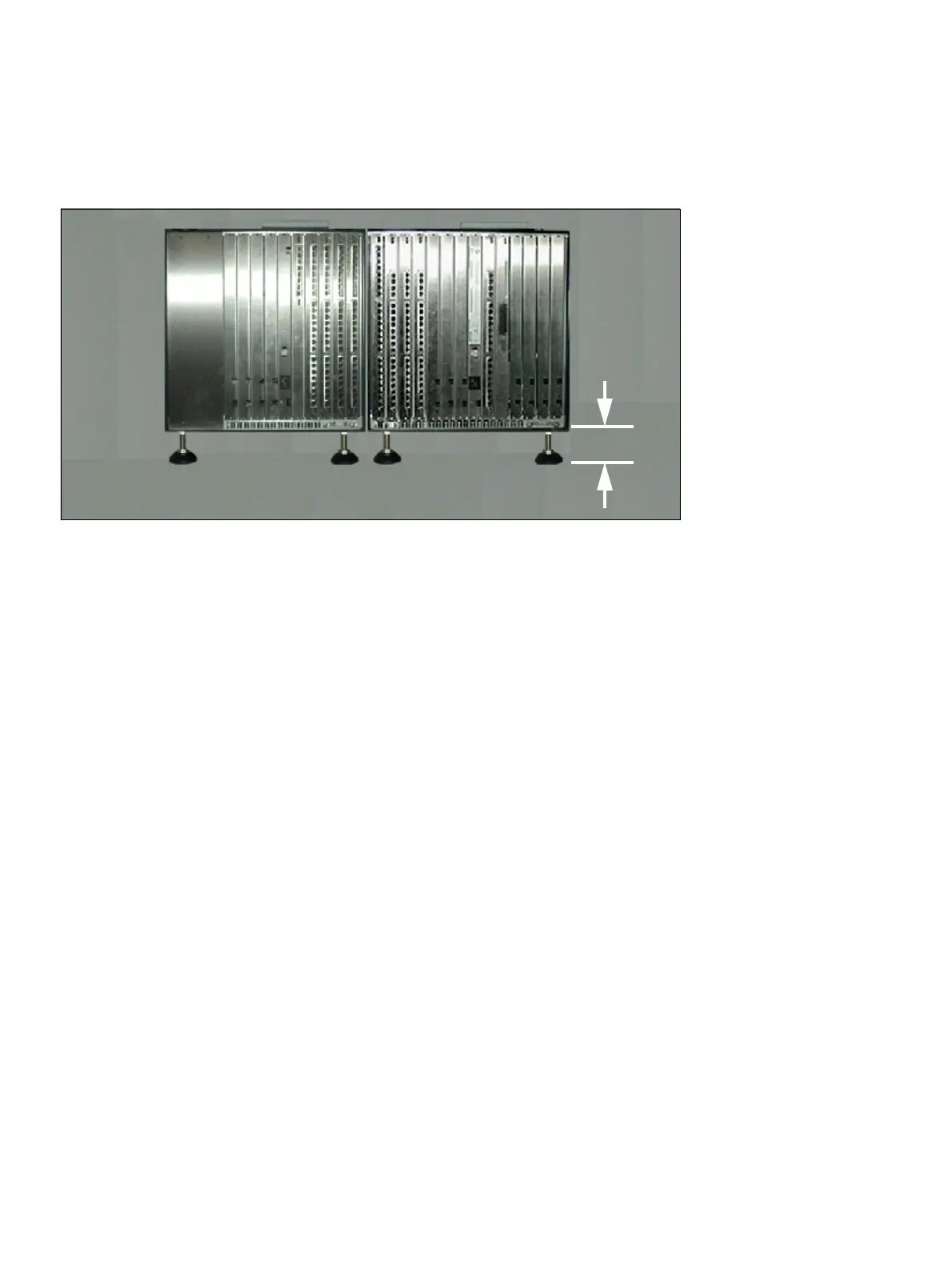

Figure 4-4 HiPath 3800 - Installing a Two-Cabinet System Side by Side (Rear View)

≥ 50 mm
