Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-110 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
Grounding option 1a
Grounding option 1b

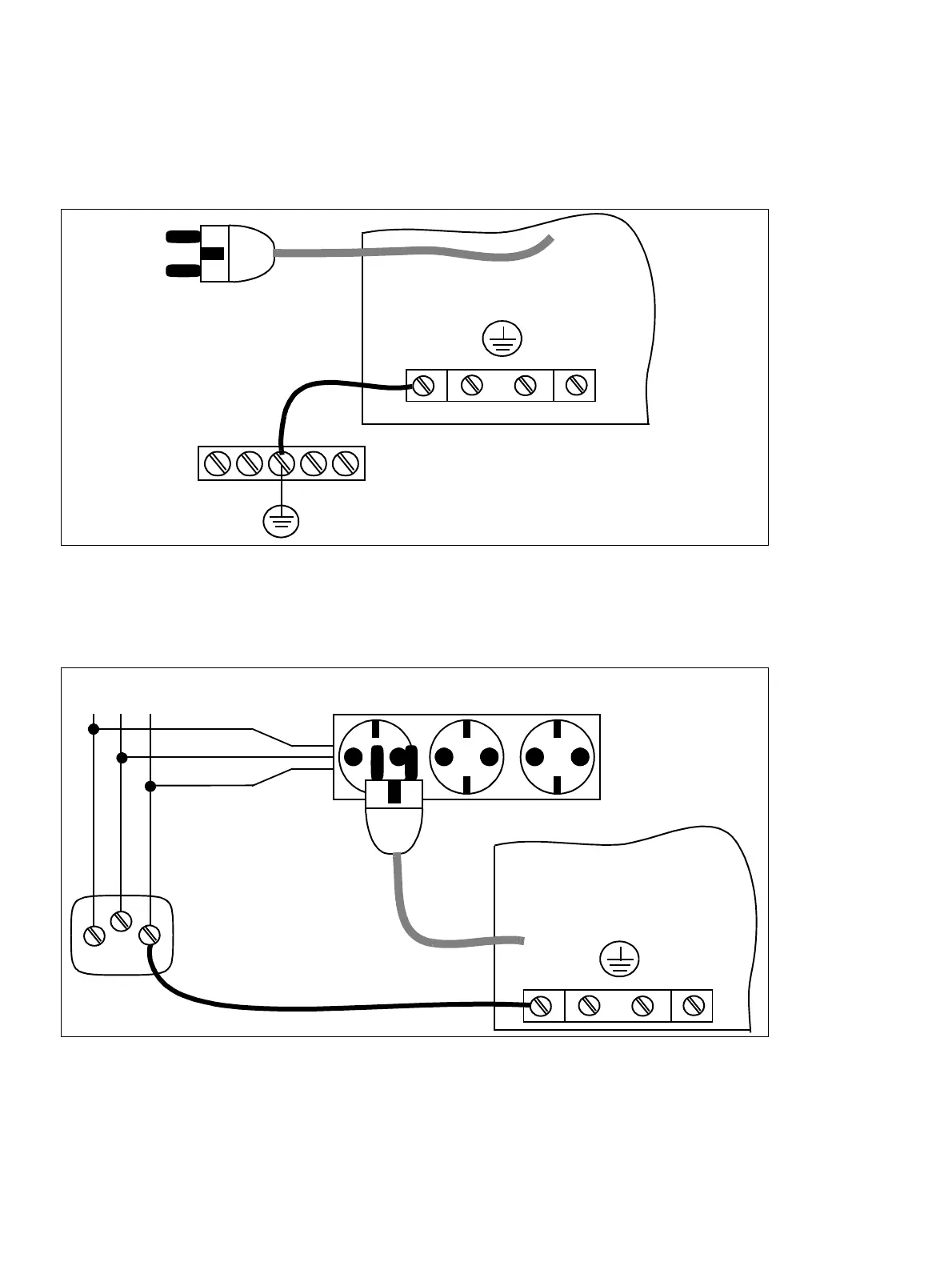

Figure 4-61 HiPath 3750 - Grounding Option 1a (not for USA)
Figure 4-62 HiPath 3750 - Grounding Option 1b (not for USA)
green/yellow
Example Potential equalization bus
HiPath 3750
HiPath 3750
L1 N PE
230 V ~
green/yellow
Example Connector
socket
Grounding outlets
