Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Assignment of subscriber line circuits and ports
For U.S. only: Recommended configuration
To avoid B-channel blocking, install the TMST1 board only in the BC or in the first two slots of
the ECs. HiPath 3000 Manager E observes this rule when performing off-line configuration.

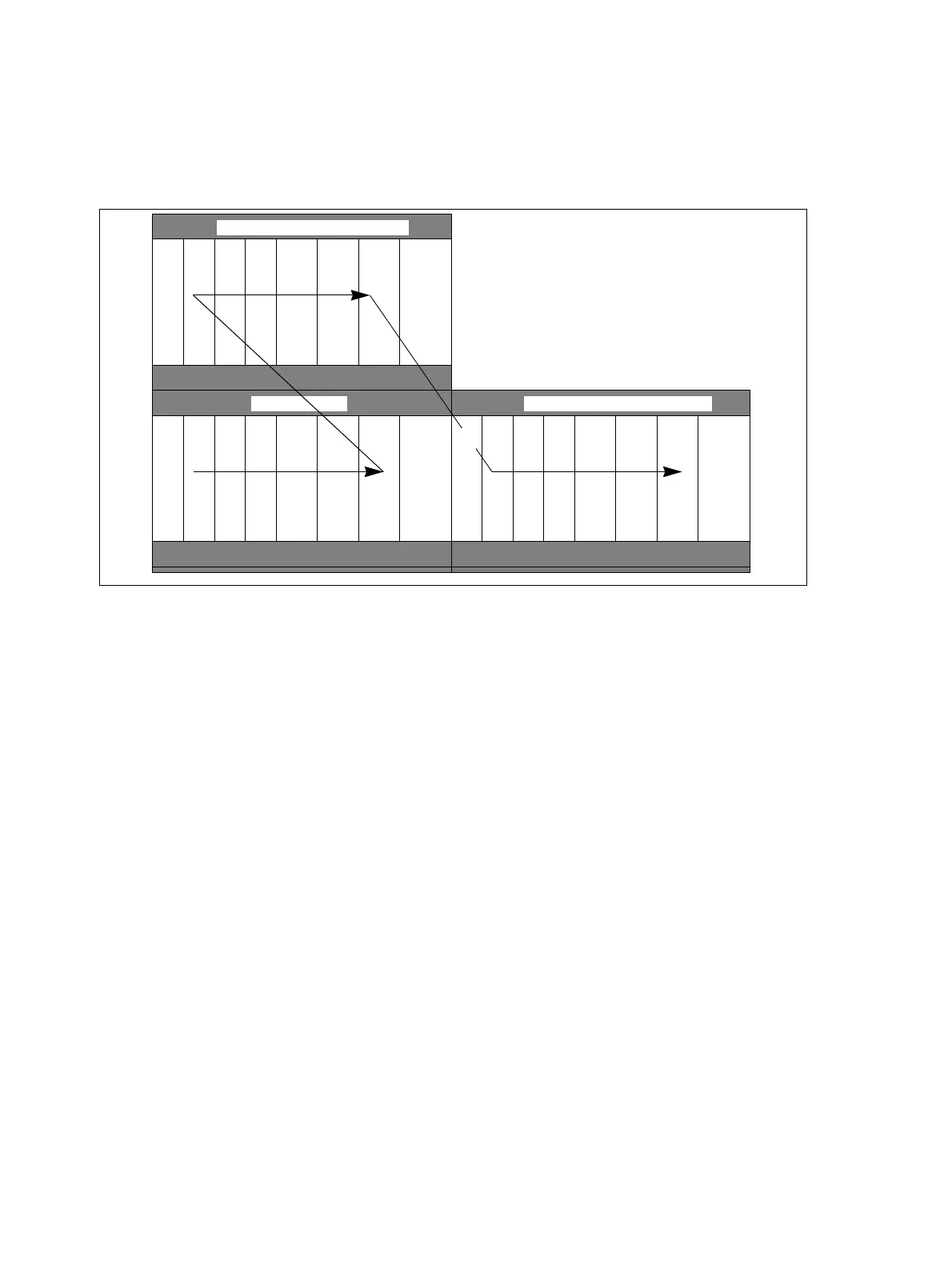

Figure 4-89 HiPath 3750 and HiPath 3700 - Initialization of Subscriber Line Circuits and
Ports
C
B
C
P
R
BC
U
P
S
M
Expansion cabinet
Expansion cabinet
U
P
S
M
U
P
S
M
C
B
C
P
R
BC
U
P
S
M
Expansion cabinet1
Expansion cabinet 2
U
P
S
M
U
P
S
M
