HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
6-21
HiPath 5000 Startup and Administration
HiPath 5000
11. Click Next to proceed with the setup routine.

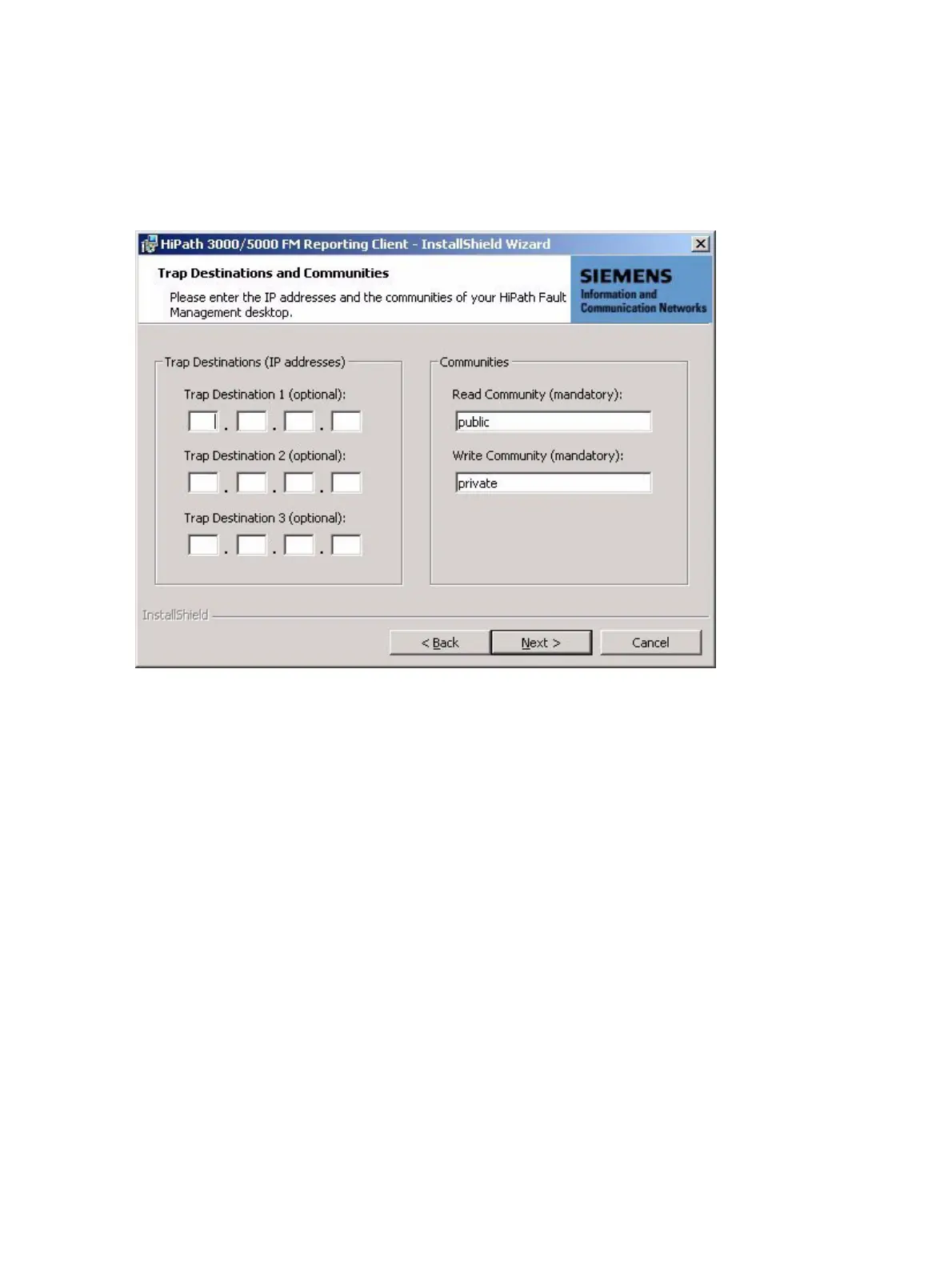

The Trap Destinations and Communities dialog appears.
Enter the trap destinations (if necessary) and the HiPath Fault Management desktop com-
munity names.
12. Click Next to proceed with the setup routine.
13. When all selected components are installed, a dialog appears in which you can terminate
the setup with Finish.
