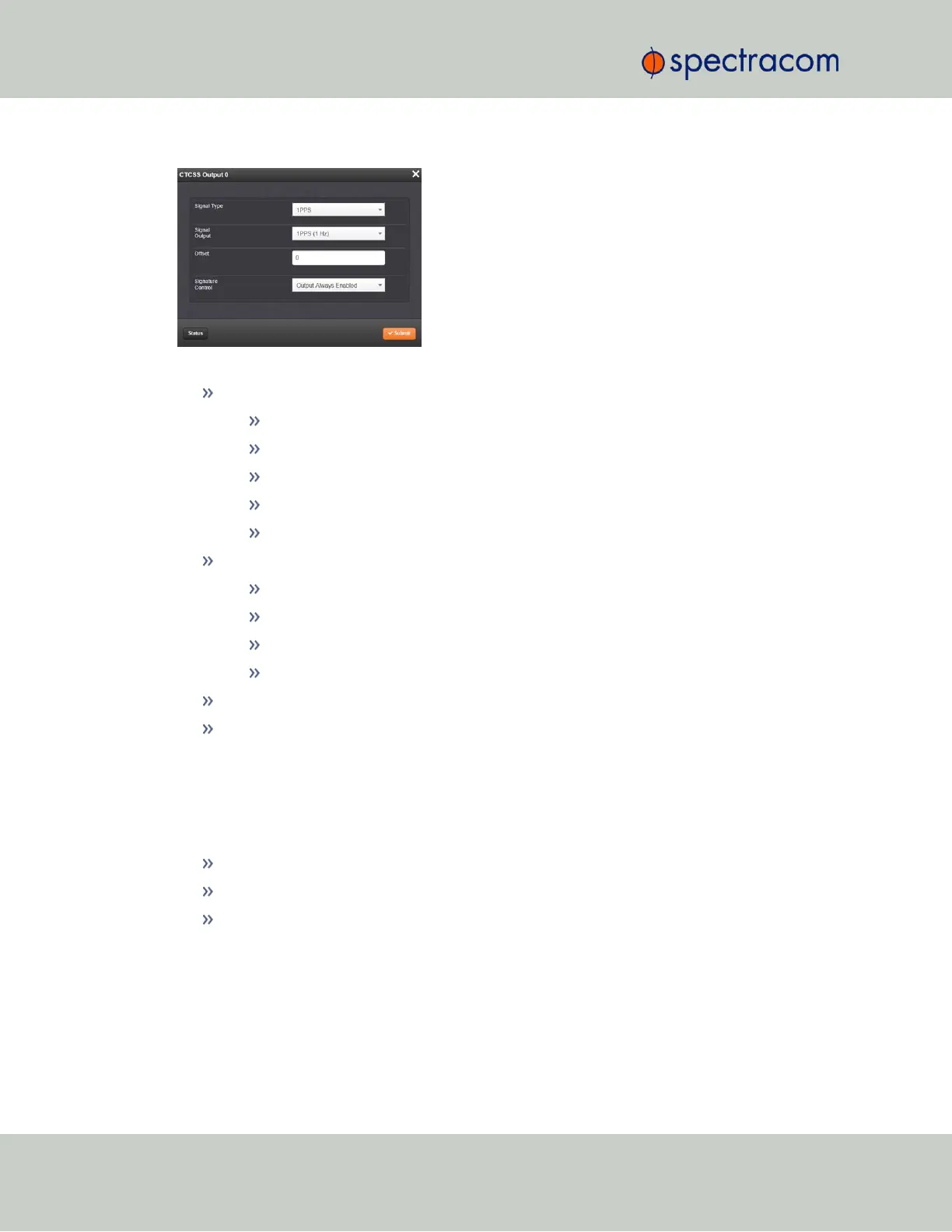

The Edit window allows the configuration of the following settings:
Signal Type: Allows selection of the desired signal type. Available options include:
Disabled
CTCSS 1/3 Tones
CTCSS 1/10 Tones
Data Clocks
1PPS
Signal Output:
CTCSS 1/3 Tones (see also: "CTCSS exact (1/3 Hz) tones" on page402)
CTCSS 1/10 Tones (see also: "CTCSS exact (1/10 Hz) tones" on page403)
Data Clocks (see also: "Data Clock Signals" on page403)
1PPS (see also: "1PPS Duty Cycle" on page403)
Offset: Value in nanoseconds that can be used to adjust for cable delays or latencies.
Signature Control: Controls when the output will be present. For more information, see
"Signature Control" on page141.
819x Option 17 Mapping
To replicate settings used in Series 819x devices, use the following information to configure
option card no. 1204-14 for compatible CTCSS operation:
DB-9 Output Index 0: Set to desired CTCSS 1/10 or CTCSS 1/3 tone
DB-9 Output Index 1: Set to 18 kHz Data Clock
DB-9 Output Index 2: Set to desired CTCSS 1/10 or CTCSS 1/3 tone.
400 SecureSync User Reference Guide
