1.
Navigate to INTERFACES > REFERENCES: STL 0. The STL 0 status panel will be displayed.
2.

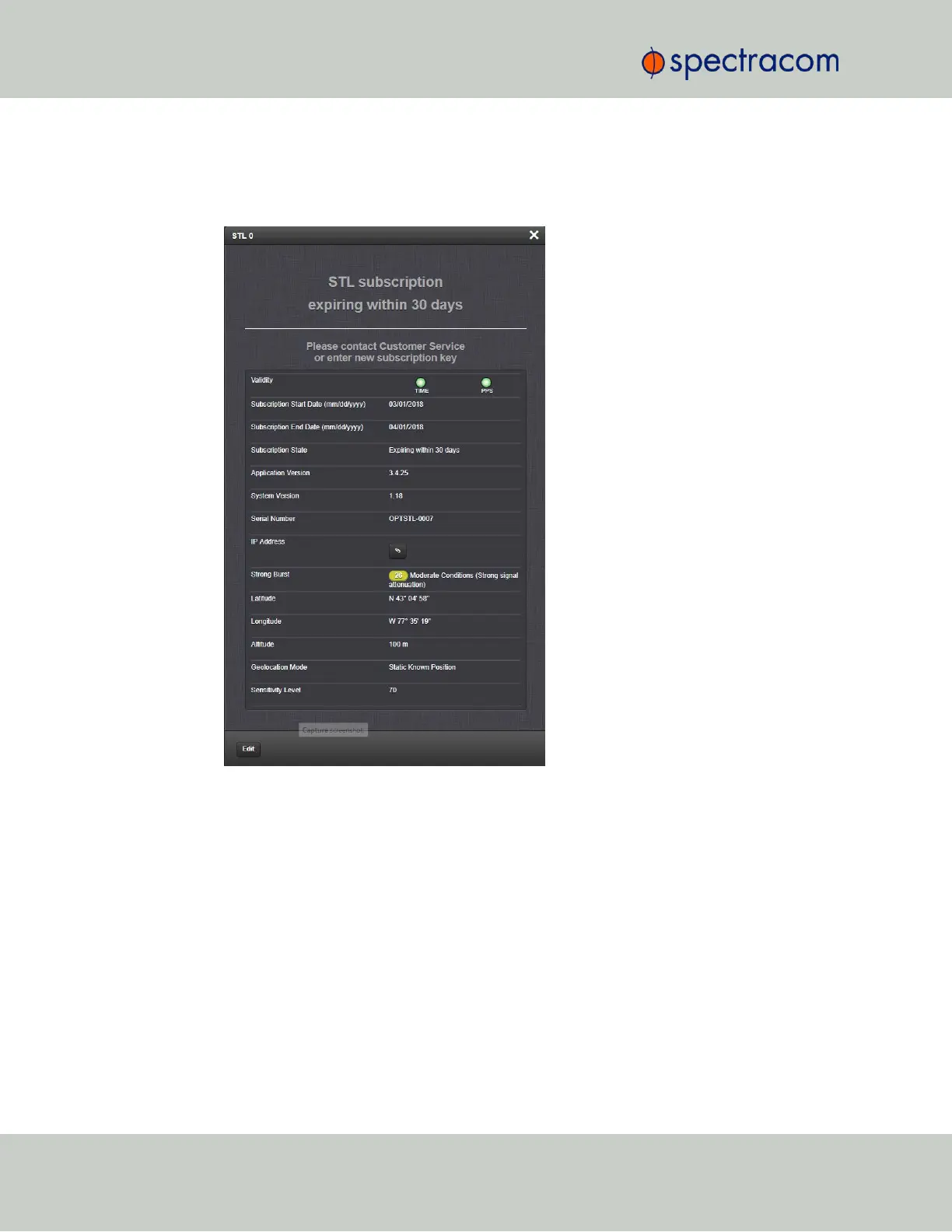

In the STL 0 status panel, click the INFO button. The STL 0 status window will open:
Besides STL system data, the window also displays STL validity and the subscription status. For
a description of the other parameters, see "Configuring STL Settings" on page489.
Subscription status reminder banner: Lists your current subscription state.
Validity – TIME: Should always be green; if red, the -3E card is not installed correctly, or there
is a defect; – PPS: If green, indicates the STL receiver is sending a PPS signal to SecureSync.
Subscription Start Date, End Date: Day the STL subscription began and will end.
Application Version, System Version: Receiver software versions.
Serial Number: Receiver serial number.
492 SecureSync User Reference Guide
