13 Operations Map guidance and features
If you... Pattern to Use
Want to work in a field that use center-pivot irrigation.
Pivot
Want to define the boundary (headland) of the area, as well as
the guidance lines contained within it.
Headland
Want to:
ll Work in a field with variable terrain
l Create a spiral into the center of the field
l Create curved and straight lines of any shape
Freeform

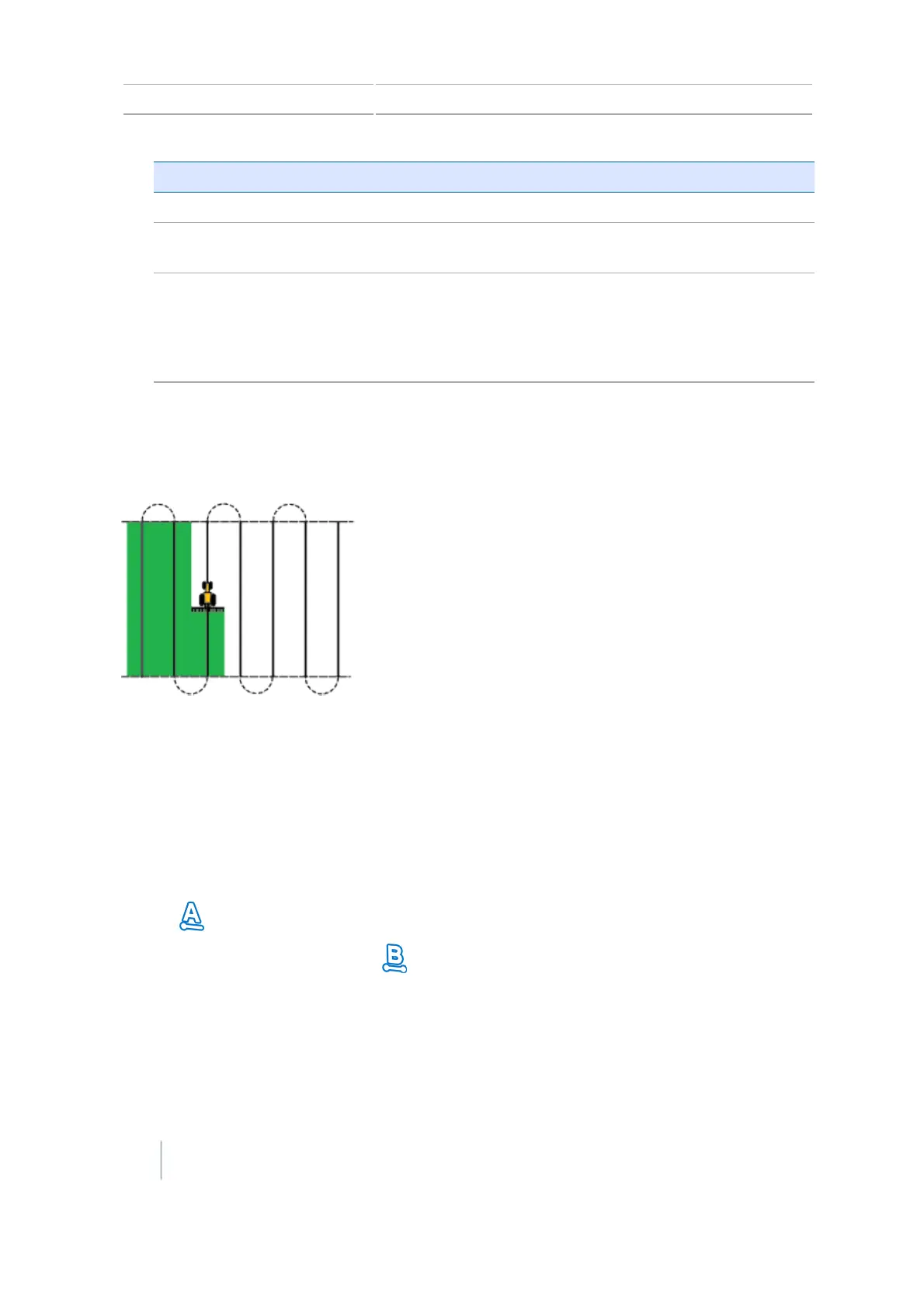

Straight AB
Use a straight AB line when you do not need to define headlands and you want to drive the field in
parallel straight lines.
When the vehicle is on a guidance line, the line extends 1km (0.6 miles) before point A and 1 km
beyond point B. This makes it easier to see where the next swath is and to get online after a turn.
Map an AB line
Note – When driving on straight AB lines, you do not have to record your path because the
guidance lines are generated automatically.
1. Drive to the start point of the master line.
2.
Tap and then drive to the end of the line.
3.
When the icon is highlighted, tap . The master AB line displays.
4. Turn left or right for the next swath. As you move toward the next swath, it displays on the
screen and turns orange to show that it is selected.
204 CFX-750 Display User Guide Version 7.0, Revision A
