13 Operations Map guidance and features

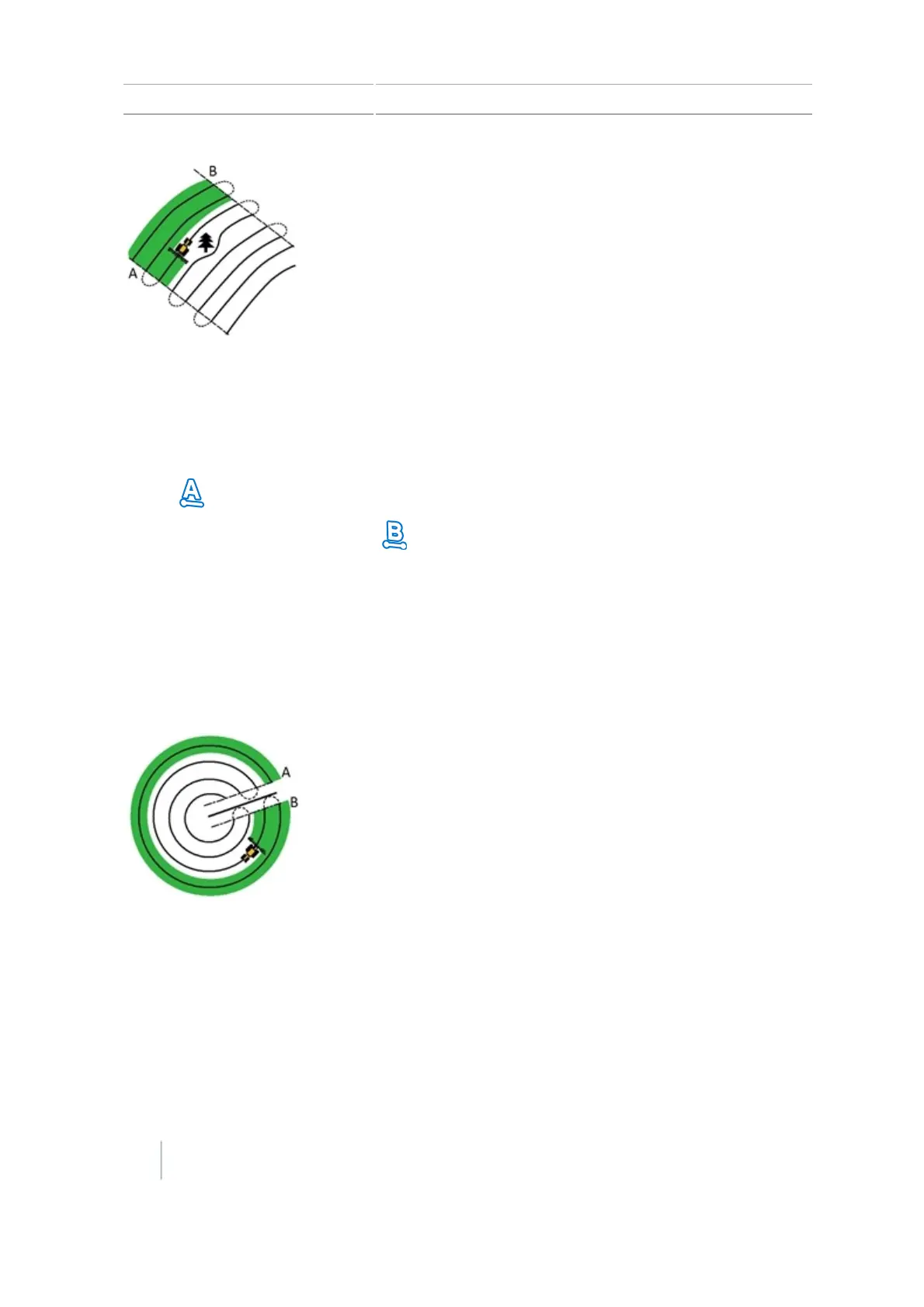

Use the identical curve pattern when you want to work a field with gentle curves.
Map an identical curve
1. Drive to the start point of the curve.
2.
Tap and then drive the initial curve.
3.
When the icon is highlighted, tap . The master curve displays on the screen.
4. Turn left or right for the next swath. As you move toward the next swath, it displays on the
screen and turns orange to show that it is selected.
Pivot
Use the pivot pattern on fields that use center-pivot irrigation. With this pattern, you can drive
concentric circles around the center-pivot.
Map a pivot
Note – Always set the master line near the outer edge of the field.
1. Drive to the start point of the pivot.
2. Position one wheel of the vehicle in a pivot wheel rut, with the rear of the vehicle to the pivot
arm. If the field is not a full circle pivot, face the rear of the vehicle to the edge of the field.
206 CFX-750 Display User Guide Version 7.0, Revision A
