Operate implement controllers 13 Operations
Operate implement controllers
The controls and indicators that display on the Guidance screen depend on the type of implement
controller you are using:
l Amazone (see Amazone controller operation, 237)
l Hardi 5500/6500 (see HARDI 5500/6500 controller operation, 238)
l LH5000 (see LH5000 controller operation, 239)
l Raven (see Raven controller operation, 240)
l Rawson (see Rawson controller operation, 241)
Amazone controller operation
When you connect the Amazone controller to the display, the following displays on the Guidance
screen.

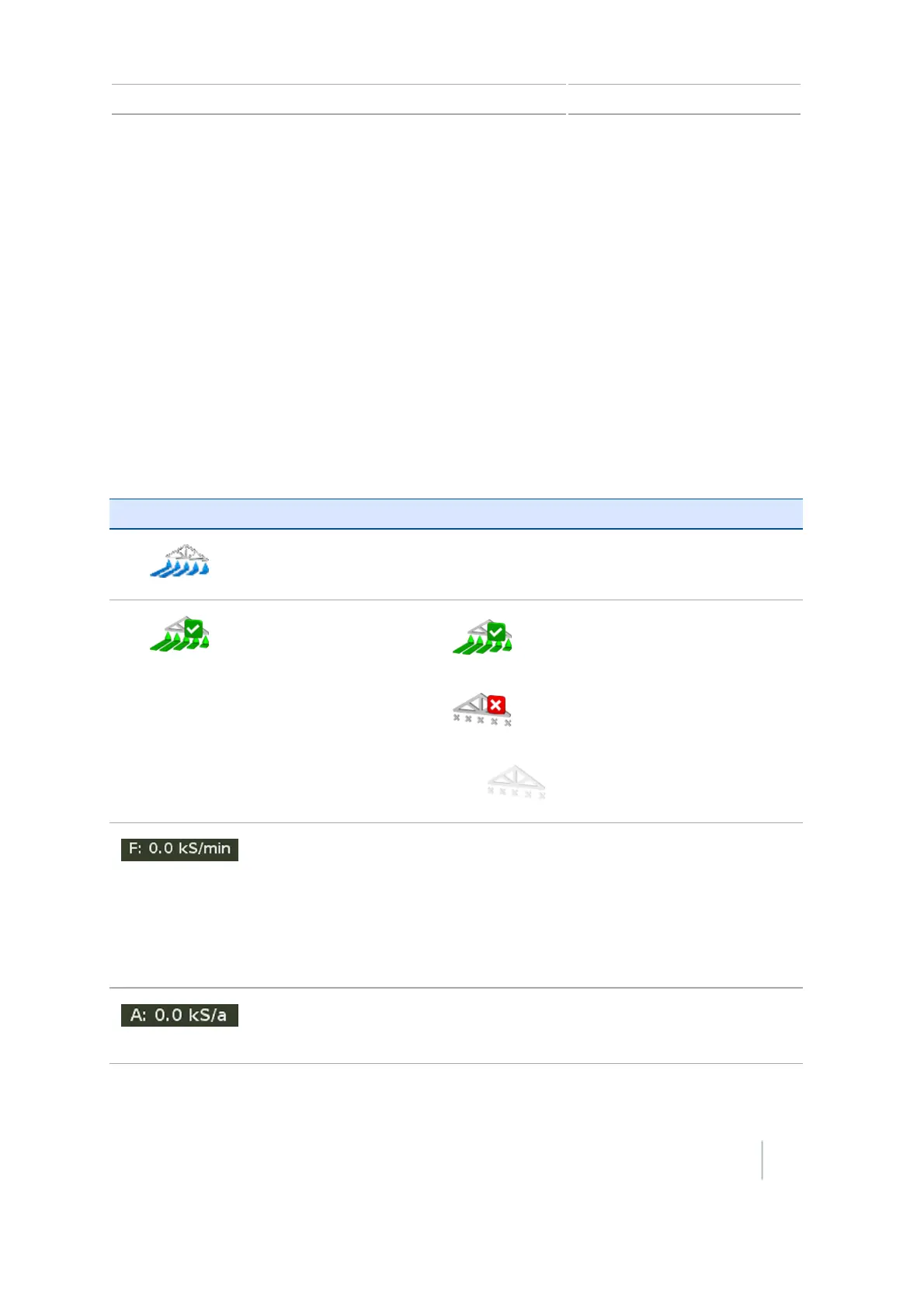

Button/Information Name Explanation
Quick Access button
Opens additional controls.
See Quick access button for Field-IQ, 231.
Coverage logging
status
On: (Green with checkmark)
Off: (Gray with red X)
Inactive: (Gray)
Target rate The target application rate for the current rate switch
position.
This is the amount of product that you want to
apply.
If a prescription is loaded, P displays to indicate that
the prescription rate is being used rather than the
target rate.
Actual rate The actual application rate.
This is the amount of product that is currently being
applied.
