4 Vehicle guidance setup EZ-Pilot steering system
To measure... Measure from the...

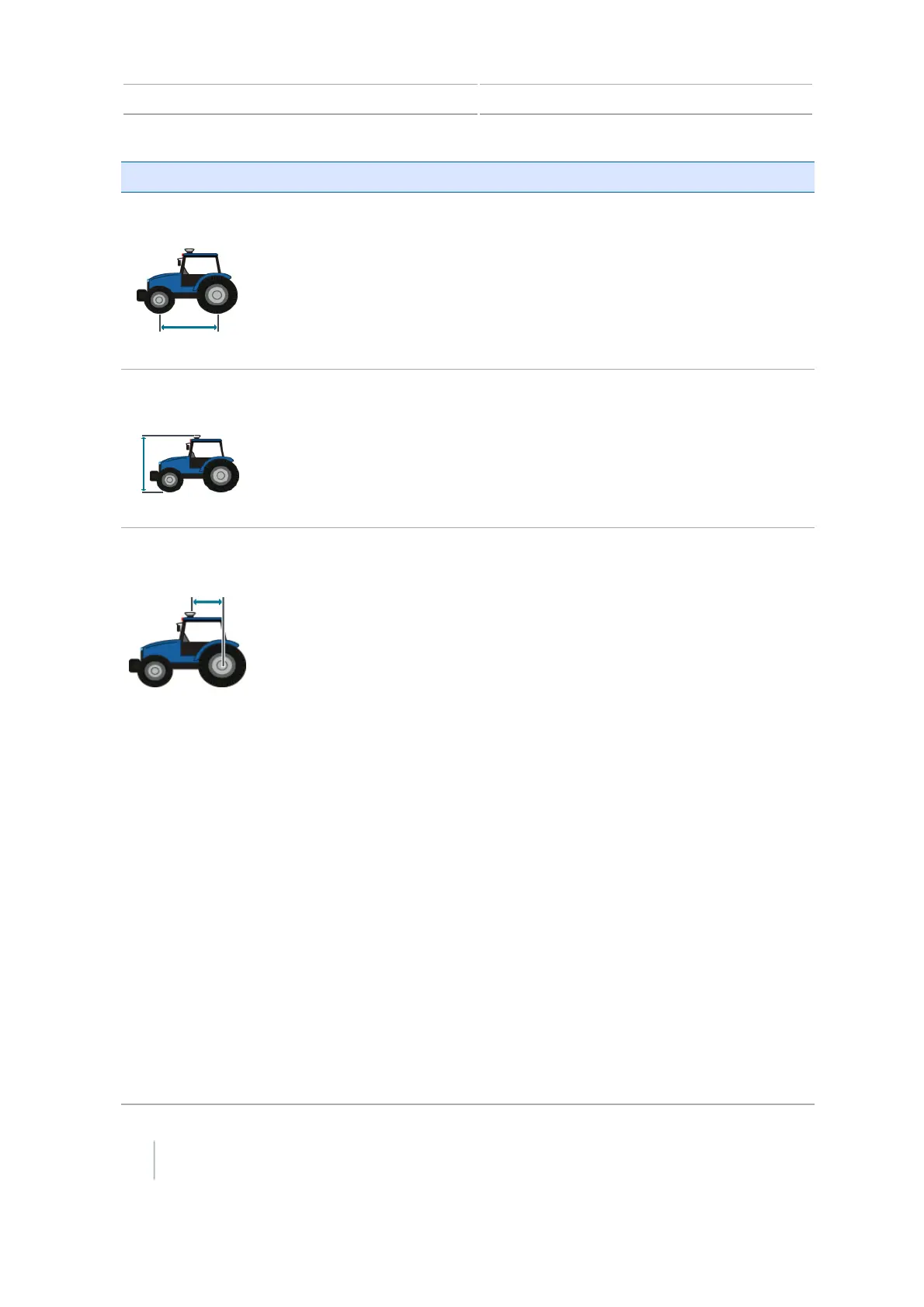

Wheelbase Center (the axle) of the front wheel to the center of the
back wheel.
Note that the wheelbase measurement for:
l Tracked vehicles is exactly half of the length of the
track.
l Articulated 4WD vehicles is half of the distance
between the center of the front and rear wheels.
Antenna height Ground to the top of the GNSS antenna.
Antenna to axle
offset
Center (the axle) of the front or rear wheel to the top of
the GNSS antenna.
Note – Make sure that you take this measurement to
within 7.6cm (3in.) as an incorrect distance may result in
poor steering performance.
Take the measurement from the antenna to the correct
point of your vehicle:
l Rear axle:
l
l MFWD
l Sprayer
l Floater
l Truck
l Front axle:
l
l 4wd tractor
l Combine
l Swather
Note – For swathers, it is recommended that you
put the antenna directly above the front axle or
slight ahead.
l Track center: Tracked tractor
If the antenna is:
l In front of the axle, enter a Forward distance
l Behind the axle, enter a Behind distance
