ATD2 10511 - Creating Input and Output Points

Creating input and output points
ADM003GVAE1005 97
Creating input and output points
An Input Point contains data received from field equipment, database calculations
or another FuelsManager database. Both types of points require an input source
but, the user only selects an output destination for the Output point.
Note! You must first select a point
format before the other attributes
can be addressed. Once selected,
the default minimum and maximum
values appear in the Minimum and
Maximum Value edit boxes if the
format is numeric.

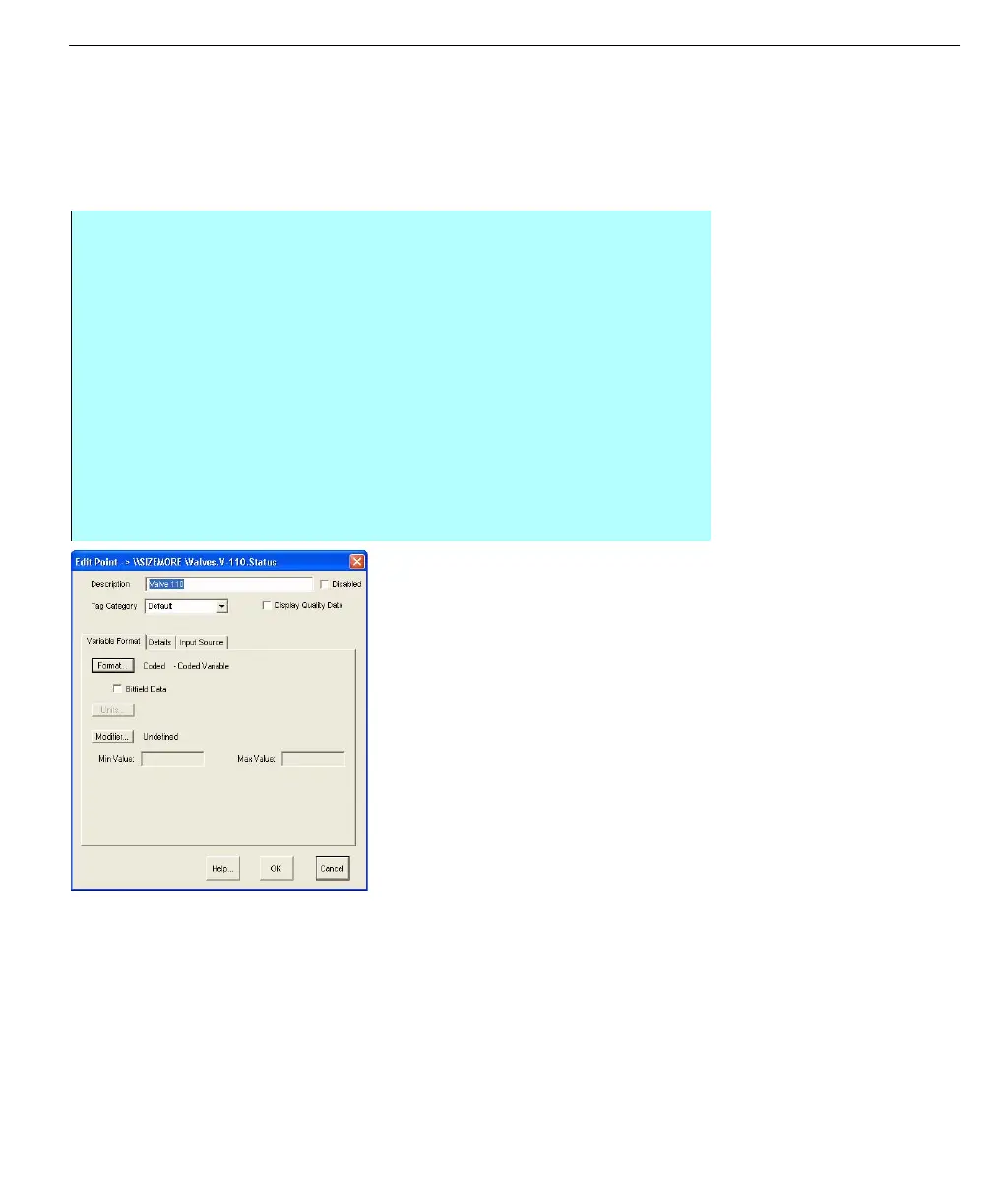

Edit Point dialog box
(input/Output)
Step-by-Step
• Continued from the previous Step-by Step instructions, Creating Database
Points
• In the Edit Point dialog box the user selects a data format, data source(s),
engineering units, and other parameters. For a description of these
attributes, refer to the Edit Point dialog box - key field explanations table at
the end of this section, the brief instructions below, or the specific section
relating to that topic
• From the Edit Point dialog box - Type in the Description of the point
• From the Edit Point dialog box - Select a Tag Category, if applicable and
select whether you want to display quality data with the point
• If necessary, enter applicable Variable Format, Details, and Input Source
information. See sections below and the Edit Point dialog box table for more
information
