FuelsManager Defense
152 Administrator Manual

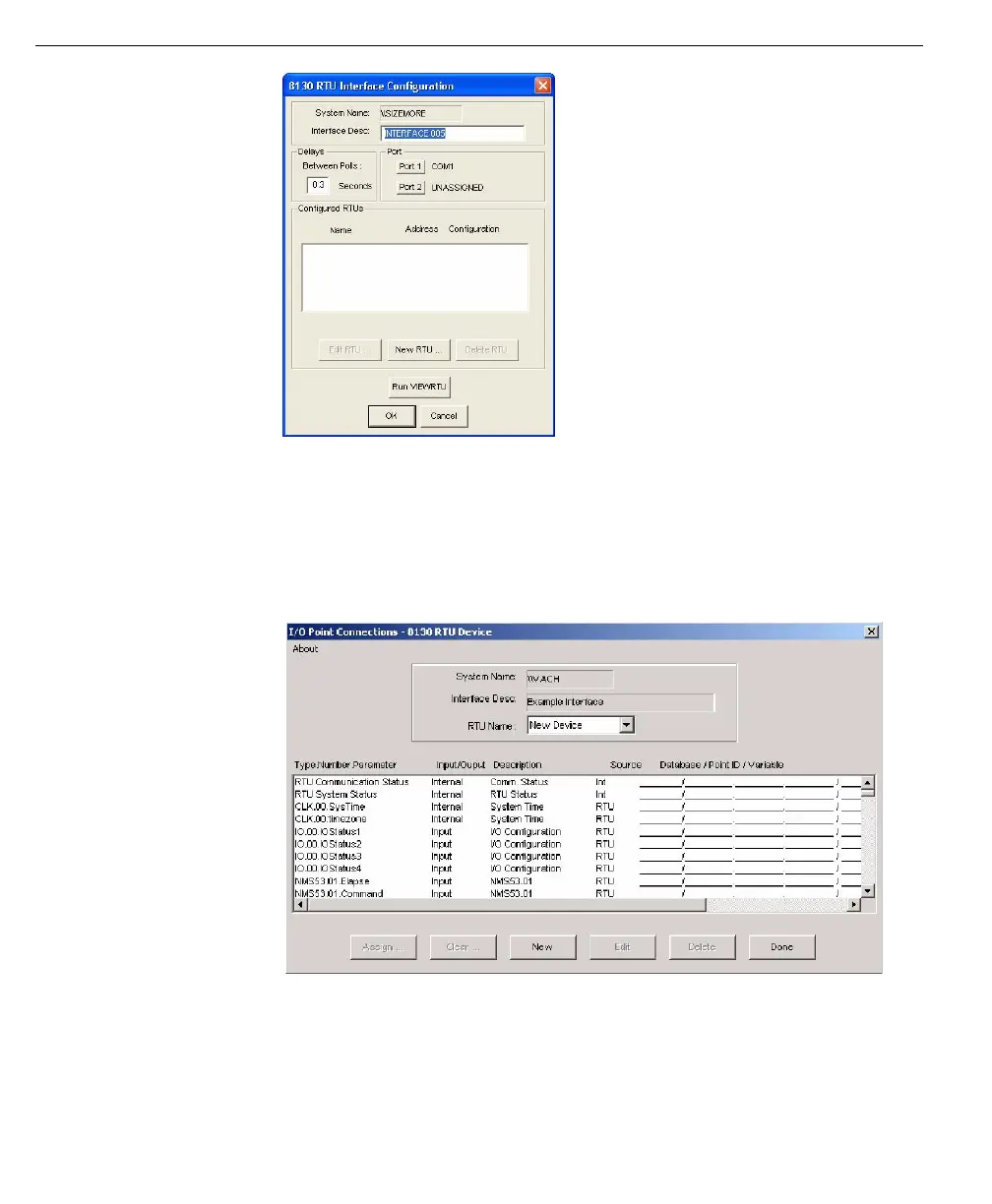

RTU8130 Interface
Configuration dialog
box
I/O Point connections
I/O point connections designate the link between the DataManager database point
and the field device. Each device has its own set of predefined CommManager I/O
points depending on that device type. For data to pass between the
CommManager and the FMDataManager, the CommManager I/O points must be
connected to FMDataManager point variables. One or more databases can be
interconnected with the CommManager over a network.
I/O Point Connections
dialog box
Restrictions to I/O points
Some devices do not allow the connection of I/O points to DataManager point
variables of an incompatible type. As a result, restrictions may apply when
selecting a database point depending on the engineering units and data format
(for example, Float, DWORD, etc.)
