Traditional tank calculations
ADM003GVAE1005 287
Subtracting the 1ft of water volume from the product volume (5000 – 1000 gal)
equals: Product volume = 4000 gal
Example 3
Water level equals the top point in the water table:
Example 3 shows how
the product and water
volumes are calculated
when the water level is
equal to the top point in
the water table
This example shows how the product and water volumes are calculated when the
water level is equal to the top point in the water table.
Separate Product and Water Tables (Separated)
When configured to use the separate product and water table mode, Inventory
Management assumes no correlation between the water and product tables.
Since this mode of operation provides no correlation between the product and
water tables, it is assumed that the tables start at the same point and overlap in
the lower part of the tank.

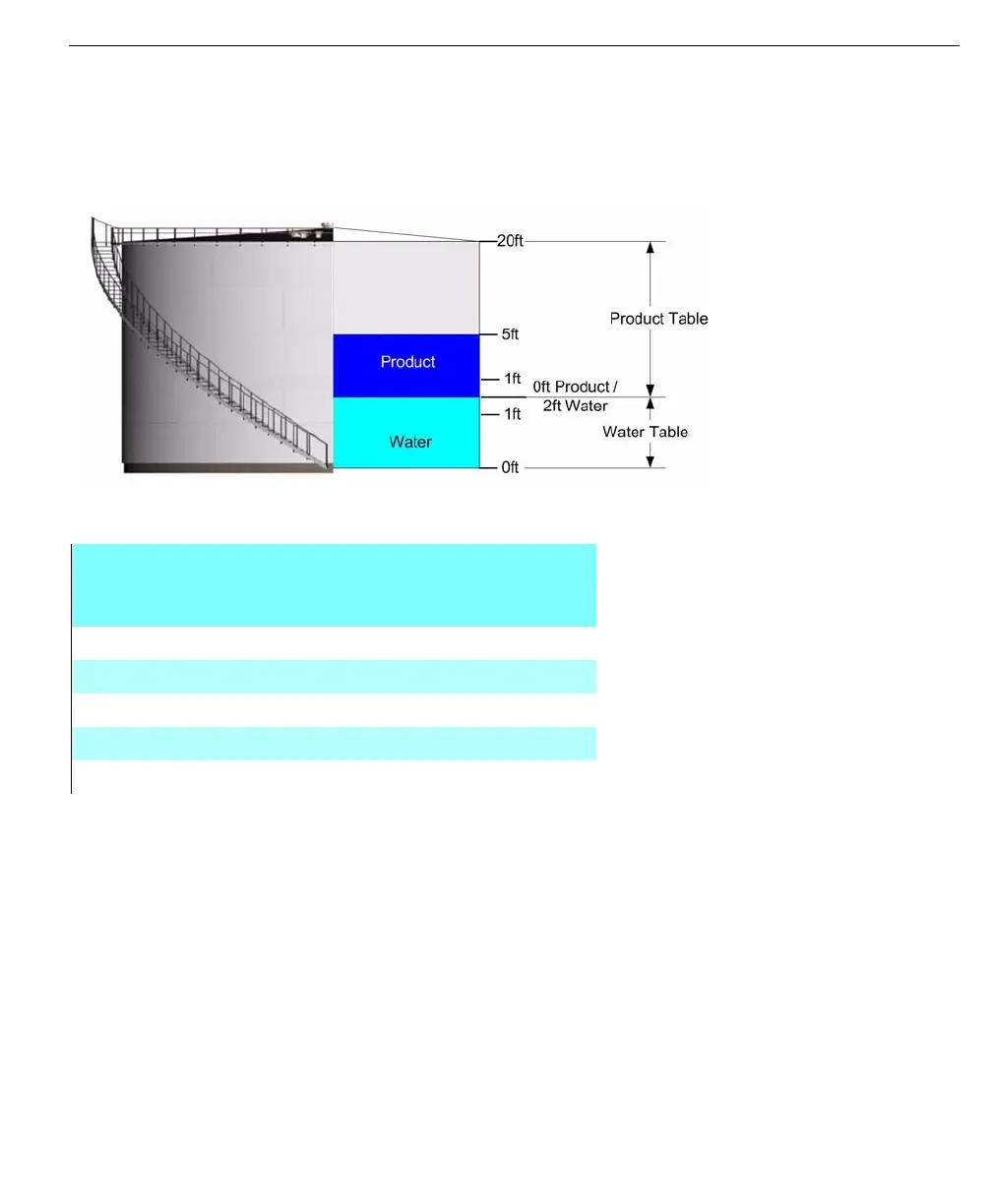

Product Table Water Table
Product Level Product Vol Water Level Water Vol
0000
1 ft 1000 gal 1 ft 1000 gal
2 ft 2000 gal 2 ft 2000 gal
5 ft 5000 gal
20 ft 20,000 gal
