ELECTRICAL INSTALLATION
80
AV7000 LINEAR CAMERA

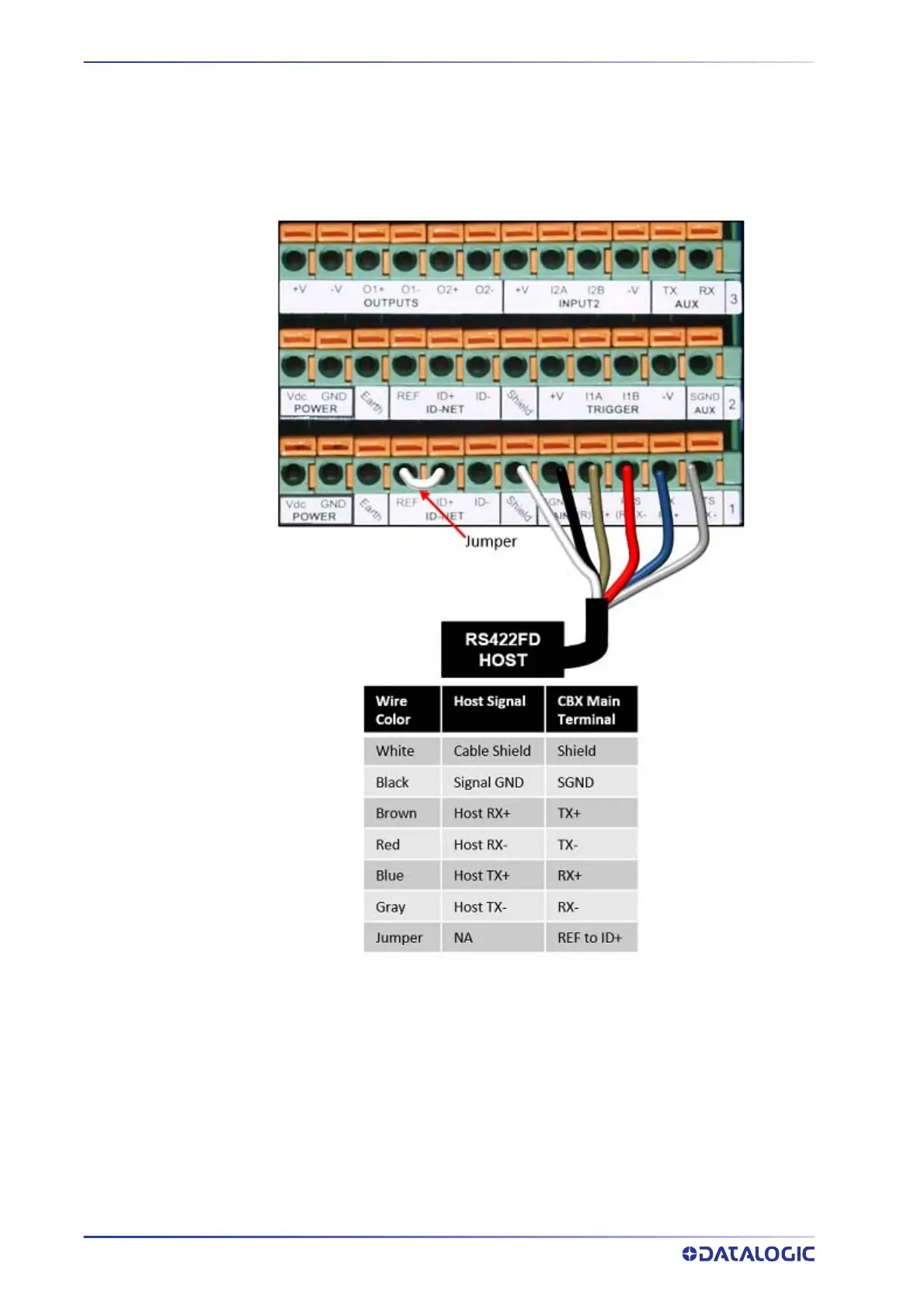

RS422FD HOST (Full Duplex)
Use RS422 for a direct connection to a controller, personal computer, or other device.
RS422 provides point-to-point communications at distances up to 1200 M [3940 ft]. Full
duplex wiring supports a four wire, double twisted pair RxD/TxD. The Signal GND and
shield cables are also required as shown.
Relay Configuration for CBX100/800
The CBX100/CBX500 includes an OUTPUTS block for wiring relays as needed for external
accessories. e-Genius Modify | Relays window includes options for outputs 1 and 2
including Life Light, Trigger Output, Error Light, Ready Light, Good Dim, and No Dim.
