208 AV7000 LINEAR CAMERA
Advanced Formatter | Message Builder

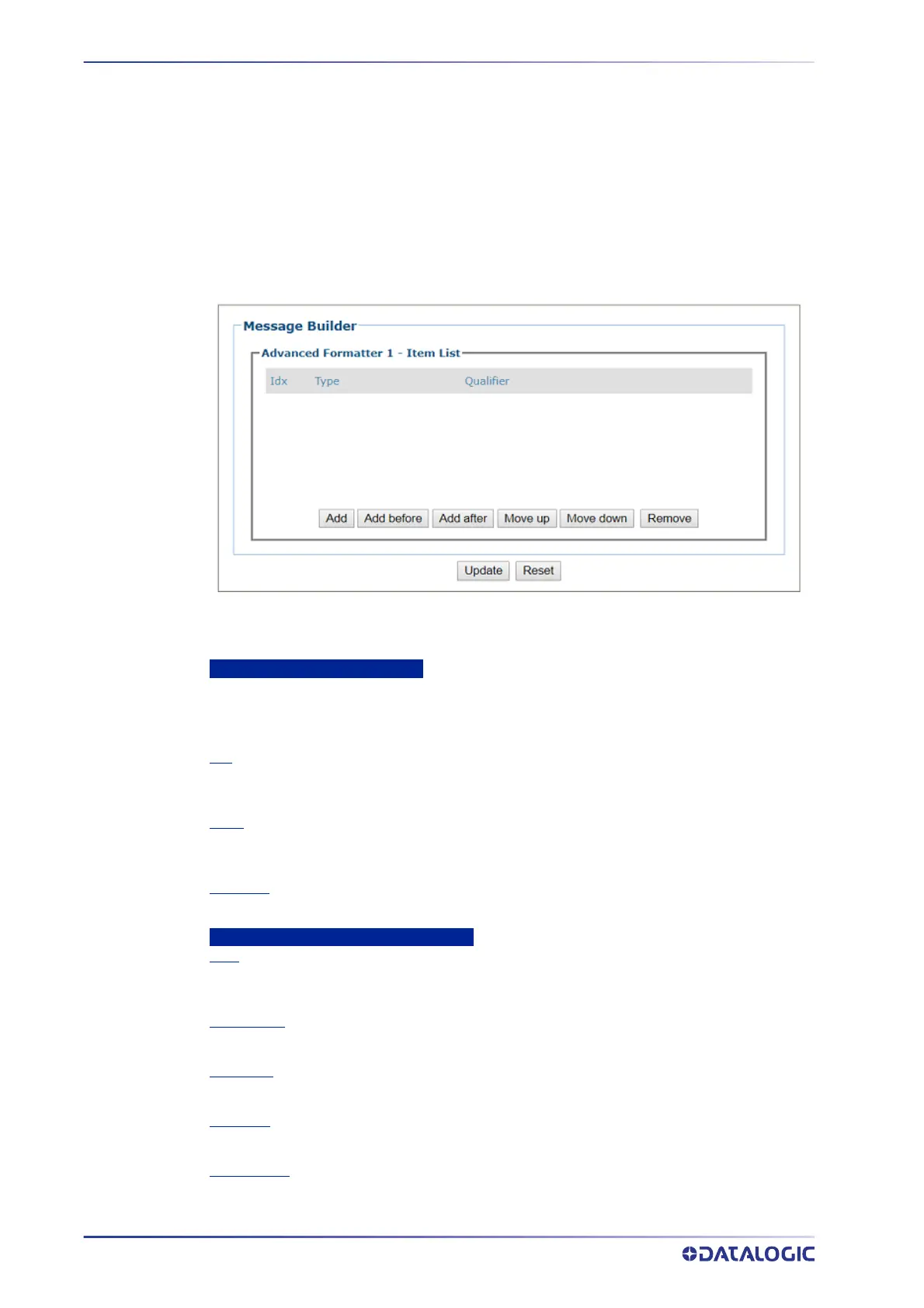

Use the Message Builder window to configure Advanced system messages.
This option allows for the defining of each field in the host message. When Message
Build
er is activated, Its settings apply to the Advanced Formatter n Item that was being
modified in the Advanced Formatter Definition window. There are five host messages
which can be constructed.
To Use the Message Builder:
1. Click on the Message Builder link in the Advanced Formatter window. The Mes-
sage Builder window opens.
2. Enter the appropriate information in the form as described below:
Advanced Formatter n - Item List
The number displayed represents the Advanced Formatter n Item being modified in the
Advanced Formatter Definition window.
The Items in this list are the fields in the message being transmitted.
Idx
Displays the index number of the messages. The idx field identifies the order that the
information will be sent to the host.
Type
Displays the message type including various Code Related Item, String, or Global Item
messages.
Qualifier
Displays relevant qualifiers for the message item if needed.
Advanced Formatter n - Item List Buttons
Add
Click to add a new message item to the bottom of the list. The type of message added is based
on the Item Type selected in the Item n Definition section of the window (see below).
Add before
Click to add a new message item above the currently selected idx number.
Add after
Click to add a new message item below the currently selected idx number.
Move up
Click to move the selected message item up one level in the list.
Move down
Click to move the selected message item down one level in the list.
