Remove
Click to remove the selected message item.

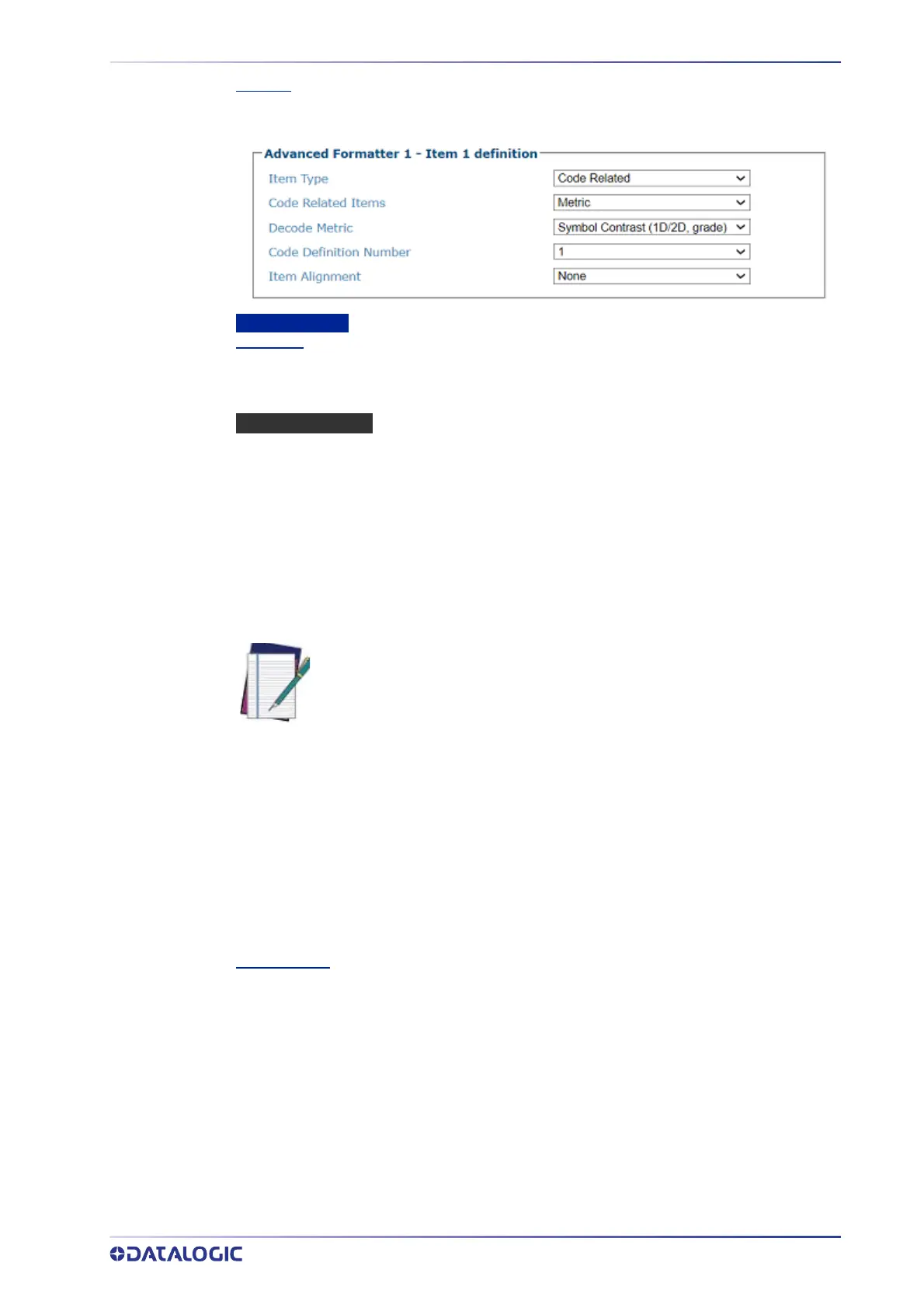

If you click Add, Add before, or Add After the following window opens:
Item n Definition
Item Type
Select String, Code Related, or Global from the drop-down list. Each selection reveals a unique
set of options. Code Related and Global item types will reveal a unique set of options. The
String option is a free flowing text box.
CODE RELATED ITEMS:
Select a code related item from those available in the drop-down list. This option is available
when Item Type > Code Related has been selected. The Code Related items can be associated
to a specific programmed code or group label depending on the Code Combination selection.
Selections Include:
•
Code: Barcode data
•
Length: Number of characters in code
•
Read Mask: In PackTrack mode - 32-bit mask indicating which camera read a given code in
the bar code menu (when character <1> is present in the related position).
•
Total Read Count: Indicates how many times the code has been read by all barcode
readers present in the network during the same reading phase.
•X Position: X coordinate for the code that was read
•
Y Position: Y coordinate for the code that was read
•
Z Position: Z coordinate for the code that was read
•
Code Identifier: Indicates type of code that was read
•
Encoder Value: Encoder Value identifies the tachometer count that the bar code was
found at.
•
Code Orientation Angle: Click the drop-down to choose None, Left or Right. This defines
the angle of the code within the image. It is not related to belt travel or parcels.
•
Metric: Click the drop-down to choose from a set of barcode metric related options.
Decode Metric
Click the drop-down to select one of the Decoder Metrics options. These Decode Metrics will
be used by WebSentinel PLUS Investigator.
NOTE: The following parameters depend on the "Center Coordinates" option
selected, Image Related or Space Related. If Image Related: the values will
be in pixels, If Space Related: the values will be in millimeters.
