Diagnostics | Multiple Camera Viewer
The Multiple Camera Viewer allows you to view low resolution images from all system
cameras at the same time during a trigger cycle. The number of images shown depends
on the number of cameras in the tunnel/array.
To access the Multiple Camera Viewer:
1. In the menu tree under Diagnostics, navigate to Multiple Camera Viewer. The
Multiple Camera Viewer window opens.
2. Controls:
• Click an image multiple times to zoom in.
•Hold
<SHIFT> and click an image multiple times to zoom out.
• Roll the mouse wheel to zoom in or out.
• Click, hold, and slide to pan an image.
• Click
|< to go to the previous frame.
• Click
> to proceed through the frames
• Click
>| to go to the next frame.

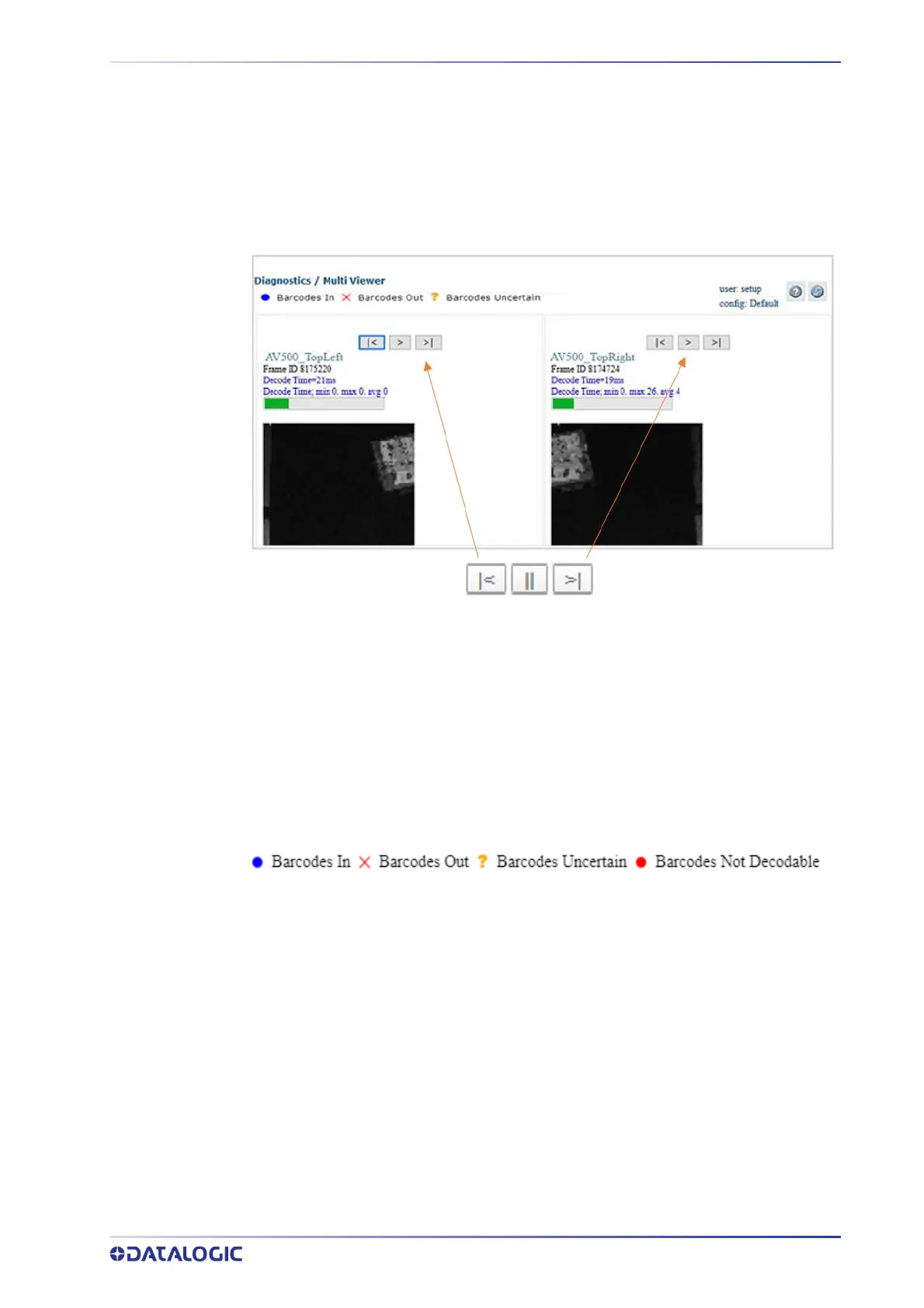

3. Each package is labeled with its read status:
Barcodes In means a decode is placed on a package.
Barcodes Out means a decode is not placed on any package.
Barcodes Uncertain means it is uncertain which package the decode belongs to (e.g.
two packages are too close).
Barcodes Not Decodable means barcodes are not decoded
